Sunex 6710 10 Ton Portable Air Lift Jack, Steel Construction

Sunex 6710 10 Ton Portable Air Lift Jack, Steel Construction

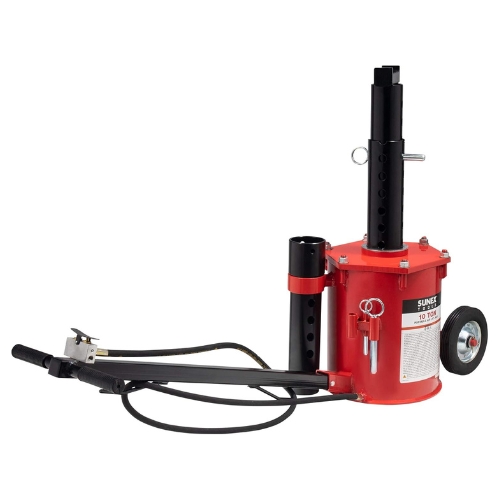

• The Sunex 6710 is a 10 ton capacity portable air lift jack that adjusts from a minimum height of 17.75 inch to a maximum height of 49 inch. It features pneumatic wheels, extension tubes, and a control air valve for speed regulation during lift and descent.
• Features:
  • 10 ton load capacity for heavy duty lifting
  • Pneumatic 8 inch diameter wheels for smooth mobility under load
  • Air valve allows controlled lift and descent speed

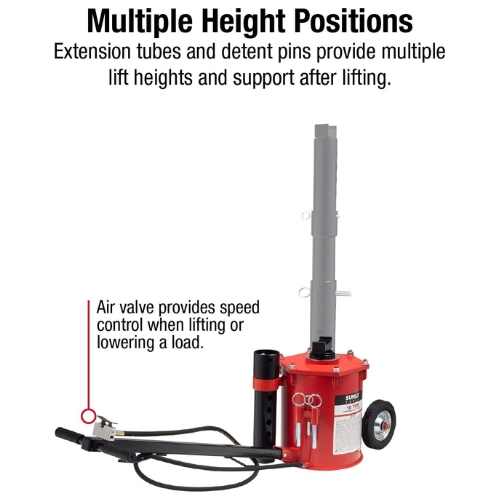

  • Extension tubes with detent pins support multiple lift heights

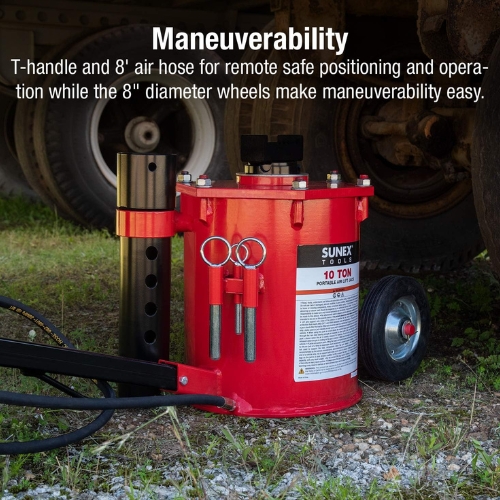

  • "T" handle plus 8 foot air hose for remote operation and safety

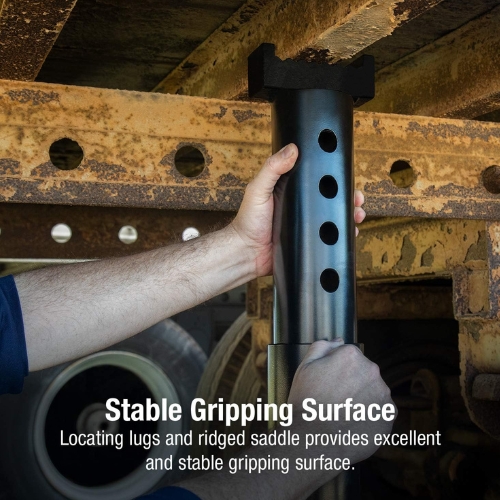

  • Ridged saddle with locating lugs for improved contact and grip
• Specifications:
  • Manufacturer: Sunex Tools
  • Part Number: 6710
  • Load Capacity: 10 ton
  • Minimum Height: 17.75 inch
  • Maximum Height: 49 inch
  • Power Raise (Ram Travel): 11.5 inch
  • Overall Length: 58 inch
  • Overall Width: 13.625 inch
  • Saddle Size: 2 inch x 5 inch
  • Wheel Diameter: 8 inch pneumatic wheels
  • Handle Length: 37.5 inch
  • Material / Finish: Steel construction

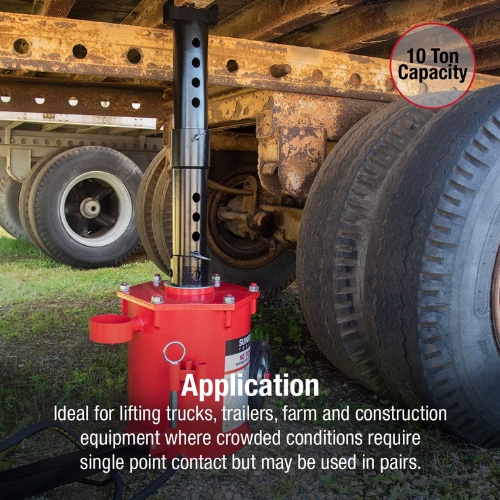

  • System Compatibility / Application: Portable air lift jack for trailers, trucks, equipment, and use in congested areas requiring single-point lifting
• This product is also known as Sunex 6710 portable air jack, Sunex 10 ton air lift jack, and Sunex pneumatic lift jack.

Sunex Tools designs this air lift jack for heavy duty use in repair and transport applications. The 6710 provides extended height range, controlled lifting, and mobility features for challenging lifting environments.

Q: What is the load capacity?
A: The jack supports up to 10 ton load capacity.

Q: What height range can it reach?
A: It moves between 17.75 inch at its lowest and 49 inch at its highest when using extension tubes.

Q: How is the lift speed controlled?
A: A built-in air valve allows control over both lifting and descending speed so the operator can adjust as needed.
