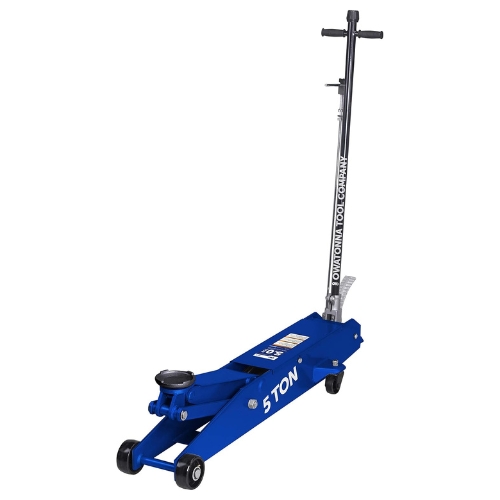

OTC HDJ5 Five Ton Service Jack with Locking Handle, 6 to 22 Inch Lifting Range

OTC HDJ5 Five Ton Service Jack with Locking Handle, 6 to 22 Inch Lifting Range

• The OTC HDJ5 Five Ton Service Jack is a professional-grade hydraulic floor jack engineered for durability and safety. It delivers a lifting capacity of five tons with a range from 6 inches to 22 inches, making it suitable for vans, light trucks, and service vehicles in demanding shop environments.
• Features:
  • Locking handle with three adjustable positions and independent lock/release control for operator safety
  • Integrated overload and bypass safety valves prevent lifting beyond rated capacity or overextending the ram
  • Heavy-duty welded hydraulic pump and cylinder with chrome-plated ram for corrosion resistance and long life
  • Foot pedal for quick, no-load lifting and improved efficiency
  • Front roller-bearing wheels and rear swivel casters provide easy maneuverability under load
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: HDJ5
  • Load Capacity: 5 tons
  • Lifting Range: 6 inches to 22 inches
  • Saddle Diameter: 5-1/8 inches
  • Frame Height: 7.9 inches
  • Handle Length: 43 inches with three-position locking system
  • Application: Suitable for lifting service vans, light trucks, and fleet vehicles in professional garages and maintenance facilities

OTC, a Bosch Automotive Service Solutions brand, developed the HDJ5 Service Jack to meet the high standards of professional vehicle service. Its robust frame, safety-enhanced handle, and smooth hydraulic operation make it a reliable lifting solution for commercial and fleet maintenance applications.

Q: What is the minimum lift height?
A: The jack lowers to 6 inches at minimum height, allowing it to reach low-profile chassis points.

Q: What is the maximum lift height?
A: The HDJ5 extends up to 22 inches for full access to undercar components.

Q: Does the handle feature an adjustable lock?
A: Yes - the handle locks in three positions (vertical to horizontal) and includes a separate release mechanism for controlled lowering.
