American Forge & Foundry 22 Ton Safety Stand Set, Pin-Style, Heavy Gauge Steel, Pack of 2

American Forge & Foundry 22 Ton Safety Stand Set, Pin-Style, Heavy Gauge Steel, Pack of 2

• The American Forge & Foundry 22 Ton Safety Stand Set is a pair of pin-style jack stands rated for heavy trucks, trailers, and equipment. Used in pairs, they provide secure support during maintenance, utilizing heavy gauge steel construction and wide bases to ensure stability.
• Features:
  • Pin-style locking mechanism for secure height adjustment.
  • Large V-shaped saddle cradles axles and other load points safely.
  • Heavy gauge all-steel frame resists warpage under load.

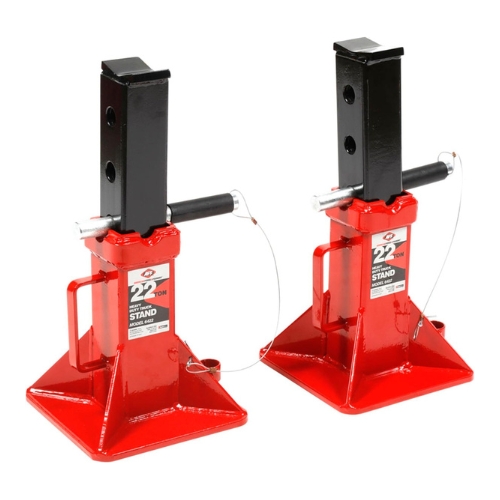

  • Adjusts to four height positions from approximately 11.8 inches to 19.7 inches.
  • 10 in x 10 in wide base for enhanced stability; saddle size approx. 3 in x 3 7/8 in.
  • Carrying handle for easier transport; adjustment pin tethered to unit to prevent loss.
  • Meets ASME PASE-2014 / ASME PASE-2019 safety standards when used in pairs.
• Specifications:
  • Manufacturer: American Forge & Foundry
  • Part Number: AFF-6422 (stands sold in a matched pair)
  • Capacity: 22 tons (pair)
  • Low Height: ? 11.8 inches
  • High Height: ? 19.7 inches
  • Number of Height Positions: 4
  • Base Dimensions: 10 in x 10 in per stand
  • Saddle Dimensions: ? 3 in x 3 7/8 in
  • Weight: ? 79 lbs per pair
  • Operation: Pin-style locking
  • Quantity: Pack of 2 stands
• The AFF 22 Ton Safety Stand Set may also be referred to as AFF 6422 Jack Stand Pair, 22 Ton Truck Jack Stand Pair, AFF Heavy Duty Safety Stand Set, American Forge & Foundry 22Ton Safety Stands, and AFF Pin Style 22 Ton Pair.

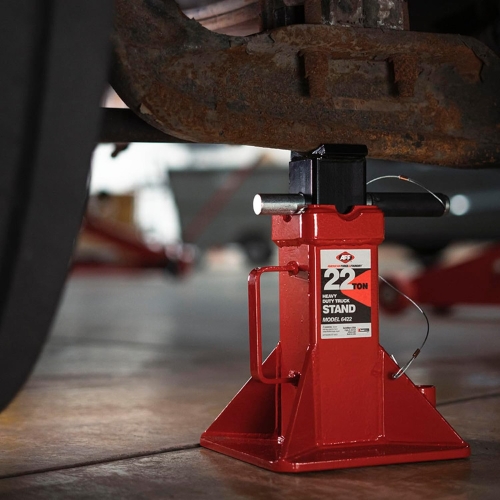

American Forge & Foundry designed the AFF 6422 22-Ton Safety Stand Pair to safely support heavy vehicles during repair and maintenance. With wide steel bases, secure locking pins, and ASME-rated design, these stands offer dependable support for professional and industrial applications.

Q: Are these stands rated per stand or only when used in pairs?
A: The full 22-ton capacity is achieved when used in pairs. A single stand alone should not be loaded to that full capacity.

Q: What clearance would I have at the lowest height?
A: The stands set at their lowest height offer approximately 11.8 inches of clearance.

Q: Is the adjustment pin secured so it won’t get lost?
A: Yes. The height adjustment pin is tethered to the stand to prevent loss.
