OTC S022 22 Ton Jack Stands, Heavy-Duty Steel Support Pair

OTC S022 22 Ton Jack Stands, Heavy-Duty Steel Support Pair

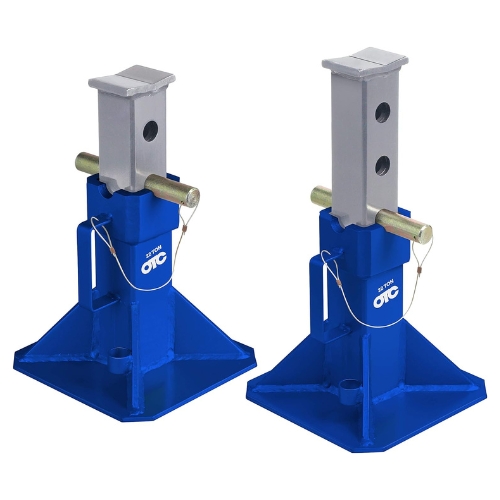

• The OTC S022 22 Ton Jack Stands are a pair of professional-grade supports designed for safely holding heavy trucks, buses, and industrial vehicles during maintenance. Built from welded steel with a wide square base, they provide stable and secure load-bearing performance for high-capacity lifting applications.
• Features:
  • Pin-style height adjustment with three secure locking positions spaced 3 inches apart
  • Flat 11 x 11 inch square base ensures solid ground contact and prevents sinking on soft surfaces
  • Large V-notch saddle (3 x 3-3/4 inches) provides stable frame or axle contact
  • All-steel construction with baked enamel finish for corrosion resistance and long service life
  • Braided steel safety cables keep locking pins attached to stands to prevent loss
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: S022
  • Load Capacity: 22 tons (44,000 lb per pair)
  • Height Range: 13-7/8 inches to 19-7/8 inches
  • Adjustment Method: Pin-style with 3-inch spacing
  • Saddle: V-notch, 3 x 3-3/4 inches
  • Base: 11 x 11 inch square steel plate
  • Application: Designed for supporting heavy-duty vehicles such as trucks, cranes, and buses during undercarriage or wheel service

OTC, a Bosch Automotive Service Solutions brand, engineered the S022 Jack Stands for maximum stability and safety in demanding shop environments. Their pin-lock mechanism, reinforced steel structure, and wide base design provide reliable support for large commercial and industrial vehicles.

Q: Are these sold individually or as a pair?
A: They are sold as a matched pair of 22-ton stands.

Q: Do they meet safety standards?
A: Yes - the OTC S022 Jack Stands comply with ASME PASE-2019 safety and performance requirements.

Q: How are the locking pins secured?
A: Each pin is tethered to its stand with a braided steel cable to prevent loss during use.
