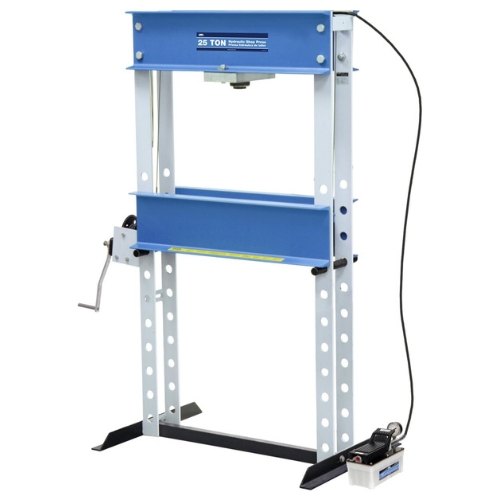

OTC 1834 Shop Press, 25-Ton Capacity, Air-Driven Hydraulic Pump

OTC 1834 Shop Press, 25-Ton Capacity, Air-Driven Hydraulic Pump

• The OTC 1834 25-Ton Capacity Shop Press is a heavy-duty, floor-standing press equipped with an air-driven hydraulic pump; designed to aid in pressing rear axle bearings, piston pins, bushings, shafts, and similar components. It is intended for automotive and industrial pressing where a 55-ton or larger press is not required.
• Features:
  • Includes OTC air-driven hydraulic pump, pressure gauge, tee fitting, hose, and a hydraulic ram with 6-1/4 inch stroke ready-to-use out of the box.
  • Large 30 inch x 46 inch work area under ram accommodates bulky workpieces and large components.
  • Adjustable press bed, raised and lowered by a lifting mechanism allows for flexibility in the height of the workpiece and safer operation.
  • Heavy steel construction with powder coat finish provides durability and resistance to shop environment wear.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 1834
  • Capacity: 25-tons maximum pressing force
  • Ram Stroke: 6-1/4 inch
  • Work Area Under Ram: 30 inch width x 46 inch maximum height
  • Hose: 1/4 inch internal diameter x 8 feet length
  • Base Dimensions / Overall Footprint: Height 72-1/2 inch; footprint width 21 inch; depth 18-1/2 inch.
• The OTC 1834 can also be referred to as 25-Ton shop press air pump model OTC-1834, OTC 1834 hydraulic press, OTC 25-ton floor press, air-driven hydraulic shop press, and OTC press model 1834.

OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.

Q: What is the maximum height under the ram that this press will accommodate?
A: The maximum work area height under ram is approximately 46 inch when the press bed is adjusted to its lowest setting.

Q: Does this press include everything needed for pressing operations?
A: Yes, it includes the air-driven hydraulic pump (No. 4020), gauge (No. 9652), tee (No. 24815), hose (No. 9768, 1/4-inch ID x 8 feet), and hydraulic ram with 6-1/4 inch stroke.

Q: What are the footprint dimensions and space requirements?
A: The press measures about 72-1/2 inch in height, 21 inch width, and 18-1/2 inch depth. Plan for additional space around the press for safety, hose routing, and material handling.
