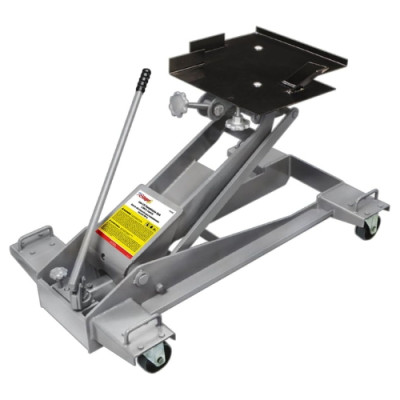

OTC 1522A Heavy-Duty Low-Lift Transmission Jack, 2000 lb. Capacity

OTC 1522A Heavy-Duty Low-Lift Transmission Jack, 2000 lb. Capacity

• The OTC 1522A is a heavy-duty, low-profile transmission jack rated for 2,000 pound load; designed for Class 7 and 8 trucks including Eaton Fuller Roadranger transmissions. It features a pump handle that rotates 360 degrees, safety overload protection, and an adapter plate for Roadranger transmissions.
• Features:
  • Load capacity 2,000 pound handles heavy transmissions in medium and heavy duty trucks.
  • Height range from 6-7/8 inch minimum to 35-1/4 inch maximum low lifting start for low clearance access, extended height for installation.
  • Includes adapter plate for Eaton Fuller Roadranger transmissions ensures compatibility with common truck transmission models.
  • Pump handle rotates full 360 degrees convenient operation position under the truck.
  • Low-profile design, with safety overload built in to prevent overuse beyond rated capacity.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 1522A
  • Capacity / Load Rating: 2,000 pound
  • Minimum Height: 6-7/8 inch
  • Maximum Height: 35-1/4 inch
  • Product Dimensions: 45.5 x 28.5 x 16 inch
  • System Compatibility: Includes adapter plate for Eaton Fuller Roadranger transmissions; designed to lift, support, position heavy transmissions, transfer cases etc. on Class 7/8 trucks; low profile to get under low-clearance frames.
• The OTC 1522A can also be referred to as OTC 2,000 lb transmission jack, OTC low-lift jack for Roadranger, OTC heavy-duty transmission service jack, OTC truck transmission lift 1522A, OTC shop powertrain jack.

OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability

Q: What is meant by "low-lift" in this jack?
A: "Low-lift" means the jack starts at a low height (about 6-7/8 inch) so it can fit under low-clearance components of large trucks, and still raise to the needed height (35-1/4 inch) for removal or installation of heavy transmissions.

Q: Is the 1522A compatible with Eaton Fuller Roadranger transmissions?
A: Yes, it includes a dedicated adapter plate for Eaton Fuller Roadranger transmissions to match mounting points and support the transmission securely while lifting or lowering.

Q: What safety features does the 1522A provide?
A: It provides a safety overload feature which prevents use beyond its 2,000 pound capacity; also includes a safety bypass on the hydraulic cylinder to protect against overpressurization.
