Lisle 68100 Deluxe Feeler Gauge, 31 Blades .0015 to .035 Inch, 3-1/2 Inch Length, 1/2 Inch Width

Lisle 68100 Deluxe Feeler Gauge, 31 Blades .0015 to .035 Inch, 3-1/2 Inch Length, 1/2 Inch Width

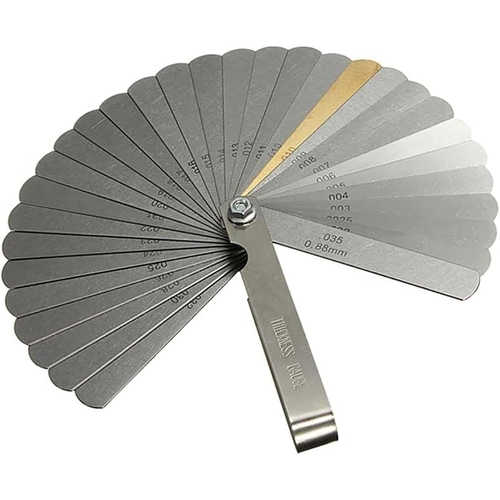

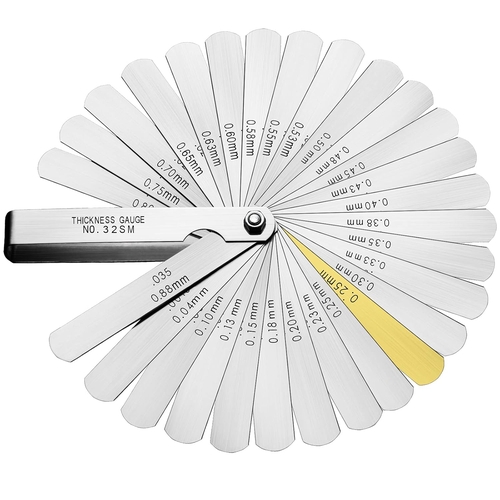

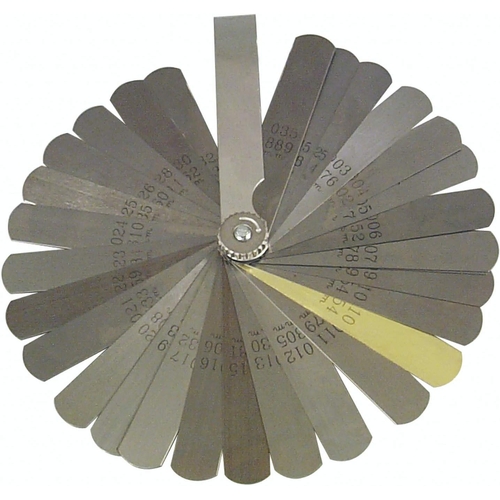

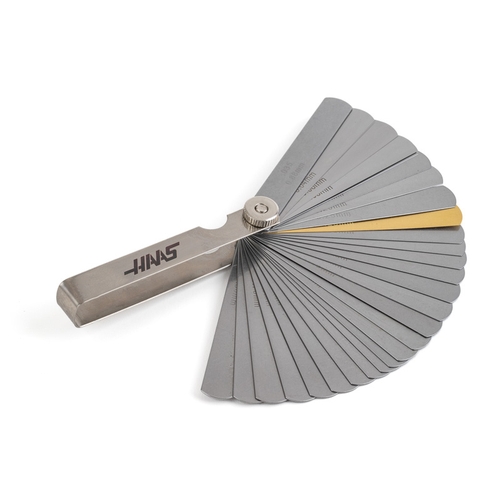

• Lisle 68100 Deluxe Feeler Gauge is a precision blade set for measuring clearances in engines and machinery. It includes 31 blades from .0015 to .035 Inch, with one .010 Inch brass blade, each approximately 3-1/2 Inch long by 1/2 Inch wide for stable, repeatable readings.
• Features:
  • Wide measuring range from .0015 to .035 Inch covers common engine and machinery clearance checks
  • Blades are approximately 3-1/2 Inch long by 1/2 Inch wide to improve handling and measurement stability
  • Includes a .010 Inch brass blade to help prevent scratching delicate surfaces during gauging
  • Heat tempered precision blades provide consistent thickness and long service life
• Includes:
  • .0015 Inch (.038 mm) blade
  • .002 Inch (.051 mm) blade
  • .0025 Inch (.064 mm) blade
  • .003 Inch (.076 mm) blade
  • .004 Inch (.102 mm) blade
  • .005 Inch (.127 mm) blade
  • .006 Inch (.152 mm) blade
  • .007 Inch (.178 mm) blade
  • .008 Inch (.203 mm) blade
  • .009 Inch (.229 mm) blade
  • .010 Inch (.254 mm) blade ? brass
  • .011 Inch (.279 mm) blade
  • .012 Inch (.305 mm) blade
  • .013 Inch (.330 mm) blade
  • .014 Inch (.356 mm) blade
  • .015 Inch (.381 mm) blade
  • .016 Inch (.406 mm) blade
  • .017 Inch (.432 mm) blade
  • .018 Inch (.457 mm) blade
  • .019 Inch (.483 mm) blade
  • .020 Inch (.508 mm) blade
  • .021 Inch (.533 mm) blade
  • .022 Inch (.559 mm) blade
  • .023 Inch (.584 mm) blade
  • .024 Inch (.610 mm) blade
  • .025 Inch (.635 mm) blade
  • .026 Inch (.660 mm) blade
  • .028 Inch (.711 mm) blade
  • .030 Inch (.762 mm) blade
  • .032 Inch (.813 mm) blade
  • .035 Inch (.889 mm) blade
• Specifications:
  • Manufacturer: Lisle
  • Part Number: 68100
  • Product Type: Deluxe feeler gauge set
  • Blade Count: 31 blades, including one .010 Inch brass blade
  • Range: .0015 to .035 Inch (.038 to .889 mm)
  • Blade Size: Approximately 3-1/2 Inch length by 1/2 Inch width
  • Material / Finish: Heat tempered steel blades plus brass blade at .010 Inch
  • Packaging: Skin packed

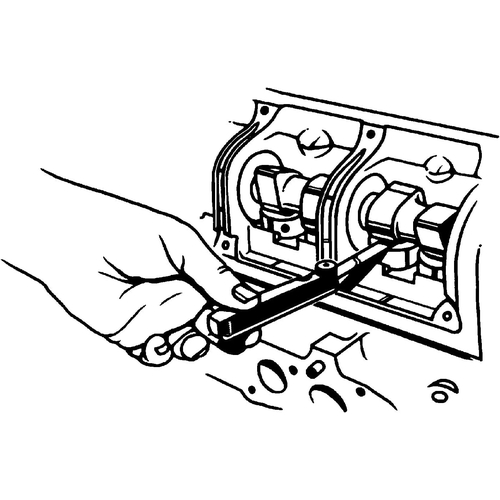

  • System Compatibility or Application: Measuring valve lash, bearing clearances, and general gap checks in automotive and industrial service
• The Deluxe Feeler Gauge can also be referred to as feeler gauge set, 31 blade feeler gauge, precision clearance gauge, automotive feeler gauge, and inch and metric feeler gauge.

Lisle manufactures specialty automotive service tools used by professional technicians for engine, drivetrain, and general maintenance, emphasizing practical designs that speed accurate service procedures.

Q: What makes the .010 Inch brass blade useful?
A: Brass is softer than steel and helps reduce the chance of scratching delicate surfaces when checking clearances at .010 Inch.

Q: Are the blade dimensions suitable for engine work?
A: Yes. The 3-1/2 Inch length and 1/2 Inch width provide reach and stability for valve lash, cam, and bearing clearance checks.

Q: Do the blades include both inch and metric markings?
A: Thicknesses are specified in inch sizes with corresponding metric equivalents shown above for quick reference.
