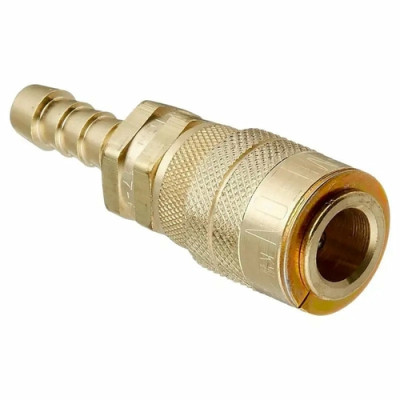

Milton 717-6 M Style Coupler, 3/8" Hose Barb, Brass Body with Drag Guard

Milton 717-6 M Style Coupler, 3/8" Hose Barb, Brass Body with Drag Guard

• Milton 717-6 is an M Style air coupler body with a 3/8 Inch hose barb connection. The brass body and case hardened steel drag guard provide durable, secure connections for shop air lines, while the Buna N seal supports leak resistant, high cycle use up to 300 PSI.
• Features:
  • 3/8 Inch hose barb coupler body simplifies hose repairs and custom hose builds for shop air lines.
  • Case hardened steel drag guard helps prevent accidental uncoupling during use and handling.
  • M Style interface with 1/4 Inch basic flow size delivers up to 40 SCFM for common pneumatic tools.
  • Brass body with Buna N seal rated to 300 PSI and 250 F for reliable performance in shop environments.
• Specifications:
  • Manufacturer: Milton
  • Part Number: 717-6
  • Product Type: M Style pneumatic coupler body
  • Connection: 3/8 Inch hose barb
  • Basic Flow Size: 1/4 Inch
  • Air Flow: 40 SCFM
  • Maximum Inlet Pressure: 300 PSI
  • Maximum Temperature: 250 F
  • Material: Brass body; case hardened steel drag guard
  • Seal Material: Buna N
  • System Compatibility / Application: Mates with M Style plugs for general pneumatic tool circuits
  • Alternate / Cross Reference: MI717-6 (distributor/retailer style for Milton 717-6)
• The M Style hose barb coupler body can also be referred to as 3/8 Inch hose barb air coupler, M Style coupler body, brass barb coupler, drag guard air coupler, and Milton 717-6 coupler.

Milton manufactures pneumatic couplers, plugs, blow guns, and inflator gauges for automotive, industrial, and fleet environments, focusing on durable components that provide reliable airflow and secure connections.

Q: What plug style does 717-6 accept?
A: It is an M Style coupler body designed to mate with M Style plugs for proper fit and rated flow.

Q: What are the pressure, temperature, and flow ratings?
A: The coupler body is rated to 300 PSI, 250 F maximum temperature, and about 40 SCFM with its 1/4 Inch basic flow size.

Q: Is this a push-on and lock coupler?
A: No. Model 717-6 is a standard M Style coupler body with a 3/8 Inch hose barb and drag guard. Milton’s push-on and lock variant is listed separately under 1717-6.
