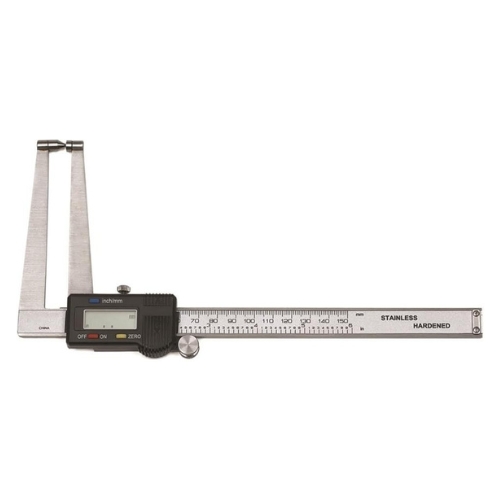

GEARWRENCH 3774D Digital Brake Rotor Gauge, Steel, 0-6 inch Range, SAE/Metric, 0.0005 inch Resolution

GEARWRENCH 3774D Digital Brake Rotor Gauge, Steel, 0-6 inch Range, SAE/Metric, 0.0005 inch Resolution

• The GEARWRENCH 3774D Digital Brake Rotor Gauge measures rotor wear with accuracy over a range of 0 to 6 inch. It features SAE/metric switching, zero setting at any position, data output interface, and manual on/off control for professional brake service diagnostics.
• Features:
  • Measurement range: 0 to 6 inch
  • SAE and metric system interchange at any position
  • Zero setting at any position for easy calibration
  • Manual power on/off
  • Data output interface for digital reading transfers
  • Plastic storage case included
• Specifications:
  • Manufacturer: GearWrench
  • Part Number: 3774D
  • Material: Steel / Metal components
  • Range: 0 to 6 inch
  • Resolution / Repeatability: 0.0005 inch x 0.01 mm
  • Jaw Depth: 3-1/2 inch
  • System Compatibility / Application: Suitable for measuring brake rotor thickness or wear on passenger and light truck vehicles during brake service; useful in both imperial and metric environments.
• Also known as GearWrench APX 3774D Brake Rotor Micrometer Gauge, 6 inch Digital Rotor Wear Gauge

The GearWrench 3774D Digital Brake Rotor Gauge provides precise measurement of rotor wear with a 0-6 inch range and high resolution. With its SAE/metric switch, zero calibration, and sturdy steel build, it is a reliable tool for service techs maintaining brakes on a wide variety of vehicles.

Q: What is the smallest increment this gauge can measure?
A: It measures in increments of 0.0005 inch and 0.01 mm.

Q: Does it include both SAE and metric units?
A: Yes. It supports both SAE and metric measurements with the ability to switch at any position.

Q: Is there a storage case included?
A: Yes. It comes with a plastic storage case for protection when not in use.
