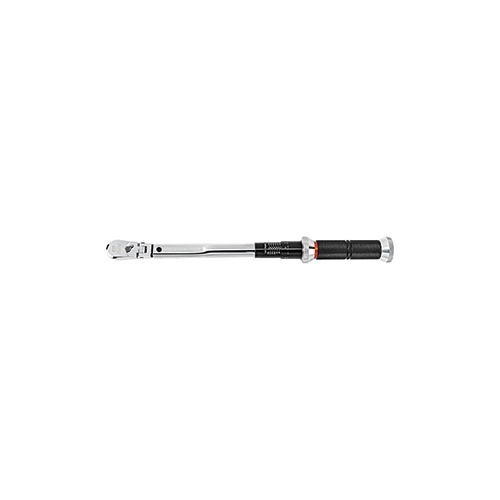

Gearwrench 85188 3/8" Drive 120XP Flex Head Micrometer Torque Wrench, 5-75 ft-lb

Gearwrench 85188 3/8" Drive 120XP Flex Head Micrometer Torque Wrench, 5-75 ft-lb

• The Gearwrench 85188 is a 3/8" drive 120XP flex head micrometer torque wrench with a 10-100 ft-lb range. It has a 3 degrees ratcheting arc, +/- 3% CW torque accuracy in the upper 80% of wrench capability, and a flexing ratchet head for narrow work spaces.
• Features:
  • 120XP head has a 3 degrees ratcheting arc to turn fasteners in narrow spaces.
  • Torque accuracy of +/- 3% CW in the upper 80% of wrench capability.
  • Ratcheting head flexes up to 15 degrees for improved access in narrow work spaces.
  • Enclosed ratchet head design resists dirt infiltration.
  • Low profile tube, teardrop head, flush mounted on/off switch, highly visible scale markings, and knurled aluminum handle.
• Specifications:
  • Manufacturer: Gearwrench
  • Part Number: 85188
  • UPC: 099575851889
  • Product Type: Flex Head Micrometer Torque Wrench
  • Drive Tang Size: 3/8"
  • Primary Torque Range: 10-100 ft-lb
  • Primary Scale Increments: 1 ft-lb
  • Alternate Torque Range: 7-136 Nm
  • Alternate Scale Increments: 1.4 Nm
  • Torque Accuracy: +/- 3% Clockwise between 20% and 100% of Full Range
  • Tooth Count: 120
  • Flexible: Yes
  • Knurled: Yes
  • Overall Length: 18.5"
  • Overall Width: 1.25"
  • Overall Height: 0.55"
  • Head Width: 1.25"
  • Head Thickness: 0.3"
  • Head Thickness Less Tang: 0.55"
  • Material: Alloy Steel
  • Finish: Full Polish Chrome
  • Repair Kit: 81227P
  • Included Storage: Injection Molded Case with Removable Lid and EVA Foam Insert
  • Packaging Type: Boxed
  • Certified: No
  • Tether Ready: No
  • ASME Specification: B107.300
  • ANSI Specification: Exceeds on Load and Cycle
• The Gearwrench 85188 3/8" Drive 120XP Flex Head Micrometer Torque Wrench can also be referred to as 3/8 drive flex head torque wrench, 120XP torque wrench, micrometer torque wrench, 5-75 ft-lb torque wrench, and torque wrench with case.

Gearwrench is a mechanics hand tool brand from Apex Tool Group serving professional automotive technicians and industrial users. The brand launched in 1996 with the first professional ratcheting wrench.

Q: How far does the ratcheting head flex on the Gearwrench 85188?
A: The ratcheting head flexes up to 15 degrees for access in narrow work spaces.

Q: What storage comes with the Gearwrench 85188?
A: An injection molded case with a removable lid and foam insert is included.

Q: What scale increments does this torque wrench use?
A: The primary scale uses 1 ft-lb increments, and the alternate scale uses 1.4 Nm increments.

Q: What is the warranty on the Gearwrench 85188?
A: The warranty is 1 year limited warranty; calibration accuracy warrantied for 90 days.
