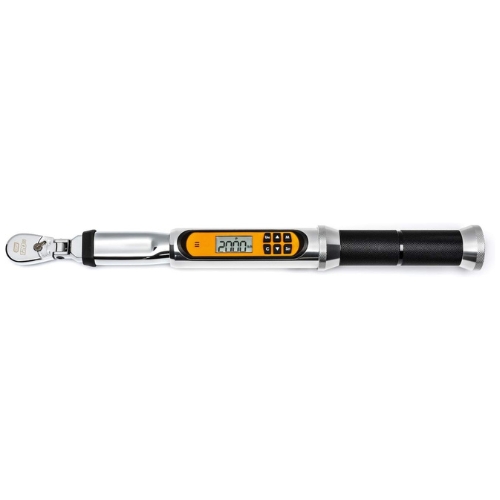

Gearwrench 85194 Electronic Torque Wrench with Angle, 1/4 Inch Drive, 120XP, Flex Head, 2-20 ft-lb

Gearwrench 85194 Electronic Torque Wrench with Angle, 1/4 Inch Drive, 120XP, Flex Head, 2-20 ft-lb

• Gearwrench 85194 is an electronic torque wrench with angle for precise fastener tightening. It covers 2-20 ft-lb and uses a 1/4 inch square drive. Standout attributes include a 120 tooth head with a 3 degree ratcheting arc and a 15 degree flex head. This is not a replacement part for a specific SKU.
• Features:
  • 2-20 ft-lb range with 0.1 ft-lb increments, helping prevent under or over tightening on small fasteners
  • Accuracy ±2% clockwise and ±3% counterclockwise (20-100% of capacity) for confident, repeatable results
  • Angle mode from 5-999 degrees with accuracy ±1% of reading plus 1 degree at 10-180 degrees per second

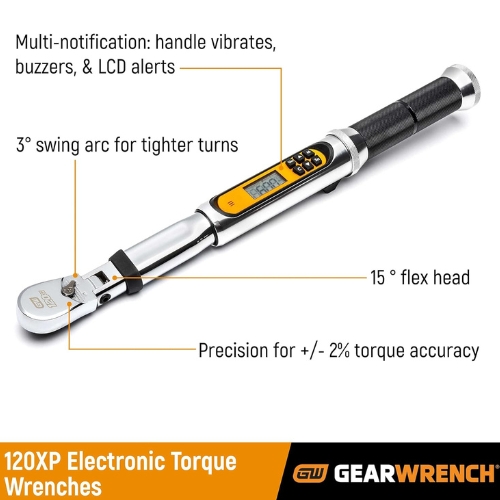

  • 120 tooth mechanism delivers a 3 degree swing arc; 15 degree flex head improves access in confined areas
  • Vibrating handle, buzzer, and LCD alerts when target is reached; three modes (peak torque, angle, peak angle) and ten presets streamline common jobs
  • General-use tool compatible with standard 1/4 inch drive sockets; not designed as a replacement part
• Includes:
  • 85194 electronic torque wrench, 1/4 inch drive, flex head
  • Injection molded case with removable lid and foam insert
• Specifications:
  • Manufacturer: Gearwrench
  • Part Number: 85194
  • Drive size: 1/4 inch square
  • Torque range: 2-20 ft-lb (24-240 in-lb; 2.7-27 Nm)
  • Scale increments: 0.1 ft-lb
  • Angle range / accuracy: 5-999 degrees; ±1% of reading plus 1 degree at 10-180 degrees per second
  • Torque accuracy: ±2% clockwise; ±3% counterclockwise (20-100% of capacity)
  • Tooth count / ratcheting arc: 120 teeth; 3 degree swing arc
  • Head: flex teardrop, 15 degree
  • Overall length: 15.45 inches
  • Material and finish: alloy steel, full polish chrome; knurled aluminum handle
  • Units available: ft-lb, in-lb, Nm, kg-m, kg-cm
  • Presets: 10 user presets
  • Power source: two AA alkaline batteries (not included)
  • Included storage: injection molded case with removable lid and foam insert
  • Standards: ASME B107.10, B107.12, B107.28, B107.300
  • System compatibility / application: accepts standard 1/4 inch drive sockets for torque-and-angle fastening; not a replacement part
• The Gearwrench 85194 1/4 inch electronic torque wrench can also be referred to as 1/4 inch digital torque wrench, flex head electronic torque wrench, 120XP torque wrench, electronic torque wrench with angle, and 2-20 ft-lb torque wrench.

Gearwrench produces professional torque products for automotive and industrial applications, including electronic torque and torque-and-angle tools built to applicable ASME standards.

Q: Is model 85194 a replacement part for a specific tool?
A: No. It is a standalone electronic torque wrench with angle that works with standard 1/4 inch drive sockets across many applications.

Q: What are the accuracy and angle capabilities?
A: From 20-100% of capacity it is accurate to ±2% clockwise and ±3% counterclockwise. Angle mode covers 5-999 degrees with accuracy of ±1% of reading plus 1 degree at 10-180 degrees per second.

Q: Does it include a case or batteries?
A: It includes an injection molded storage case. Batteries are not included and the wrench uses two AA alkaline batteries.
