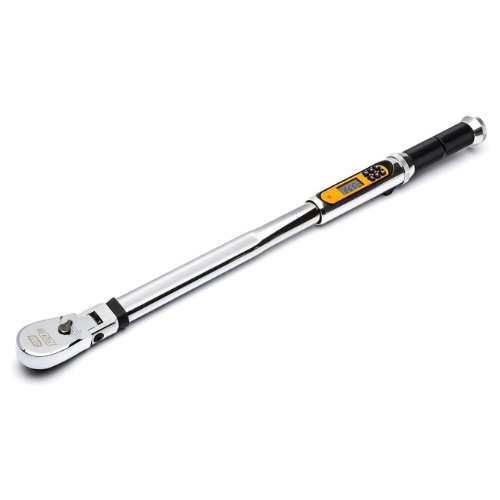

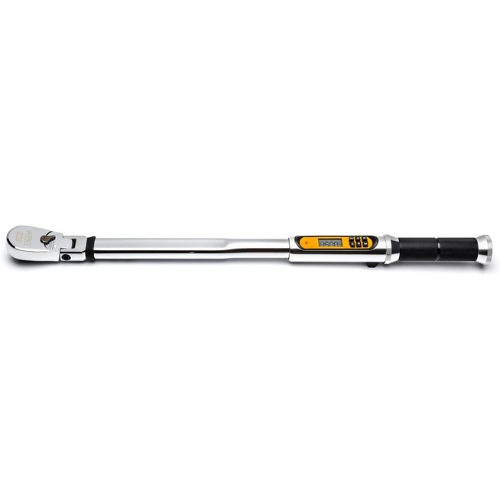

GEARWRENCH 85196 Electronic Torque Wrench with Angle, 1/2" Drive, 120XP, Flex Head, 25-250 ft-lb

GEARWRENCH 85196 Electronic Torque Wrench with Angle, 1/2" Drive, 120XP, Flex Head, 25-250 ft-lb

• GEARWRENCH 85196 is an electronic torque wrench with angle for 1/2 inch drive applications. It uses a 120 position ratchet for a 3 degree swing arc, measures torque and angle with digital alerts, and features a 15 degree flex head for access. This is not a replacement part for another SKU.
• Features:
  • Torque accuracy ±2% clockwise and ±3% counterclockwise from 20-100% of range for precise fastening
  • 120 position head delivers a 3 degree swing arc; flex teardrop head at 15 degree improves access in tight confines
  • Torque and angle modes with vibrating handle, buzzer, and LCD visual alerts when target is reached
  • Stores ten presets and reads in foot pound, inch pound, newton meter, kilogram meter, and kilogram centimeter for versatile workflows
  • General purpose 1/2 inch drive electronic torque wrench; not a replacement part for a specific SKU
• Includes:
  • 85196 electronic torque wrench, 1/2 inch drive, flex head
  • Injection molded case with removable lid and foam insert
• Specifications:
  • Manufacturer: Gearwrench
  • Part Number: 85196
  • Drive size: 1/2 inch square
  • Torque range: 25 to 250 ft-lb (34 to 340 Nm)
  • Angle range: 5 to 999 degree
  • Ratcheting arc: 3 degree; tooth count: 120
  • Head: flex teardrop, 15 degree
  • Accuracy: ±2% CW, ±3% CCW (20-100% of range)
  • Units: ft-lb, in-lb, Nm, kg-m, kg-cm
  • Overall length: 24.26 inch
  • Material and finish: alloy steel, full polish chrome; knurled aluminum handle
  • Included storage: injection molded case with removable lid and foam insert
  • Power source: two AA alkaline batteries (not included)
  • Standards: ASME B107.10, B107.12, B107.28, B107.300
  • System compatibility or application: for applying calibrated torque and angle to threaded fasteners; not a replacement part for a specific SKU
• The Gearwrench 85196 1/2 inch electronic torque wrench can also be referred to as 120XP torque wrench with angle, flex head electronic torque wrench, digital torque wrench 1/2 inch drive, 25-250 ft-lb torque wrench, and electronic torque and angle wrench.

Gearwrench produces professional torque tools for automotive and industrial service, including electronic torque wrenches with angle measurement that meet ASME standards and provide precise feedback through digital displays and haptic and audible alerts.

Q: What accuracy does the wrench provide across its working range?
A: It is accurate to ±2% clockwise and ±3% counterclockwise from 20 to 100 percent of its torque range.

Q: Can I read torque in different units?
A: Yes. You can select ft-lb, in-lb, Nm, kg-m, or kg-cm, and you can store ten preset targets for repeated tasks.

Q: Does the tool measure angle as well as torque?
A: Yes. It supports angle and peak angle modes with a 5 to 999 degree range and provides vibrating, audible, and on-screen alerts when the target is reached.
