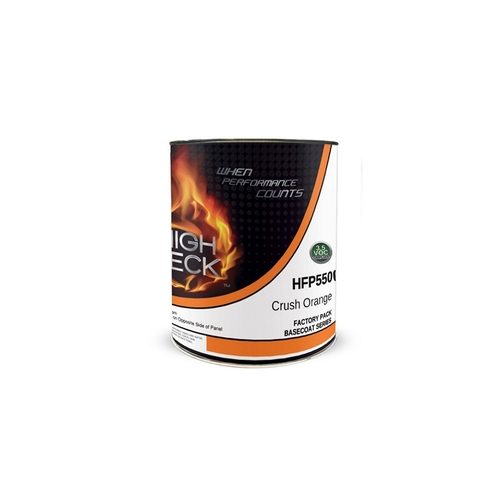

High Teck HFP550C-1 Series HFP Low VOC Urethane Basecoat, Crush Orange CHR PL4, 1 Gallon, 6.8 lb/gal VOC

High Teck HFP550C-1 Series HFP Low VOC Urethane Basecoat, Crush Orange CHR PL4, 1 Gallon, 6.8 lb/gal VOC

• High Teck HFP550C-1 is a factory-pack low VOC urethane basecoat for automotive refinish overalls, large blend area repairs, and ground-coat work. The polyester basecoat is part of a basecoat and clearcoat refinish system and may be top coated with high quality clearcoat.
• Features:
  • HFP-Series Urethane Basecoat is quick dry, good hiding, and supplied as a factory-pack line of popular OEM colors.
  • High quality polyester composition.
  • Factory-pack colors are blendable to match many OEM paint codes and may be tinted with high quality basecoat.
  • May be mixed 1:1 by volume with VOC-grade universal reducer.
  • May be catalyzed up to 10 percent of the unreduced color portion with appropriate isocyanate hardener.
• Specifications:
  • Manufacturer: High Teck
  • Part Number: HFP550C-1
  • Product Type: Series HFP Low VOC Urethane Basecoat
  • Container Size: 1 Gallon
  • Color: Crush Orange
  • OEM Color Code: CHR PL4
  • Composition: Polyester Basecoat
  • Product VOC: 6.8 lb/gal
  • VOC at Gun: Maximum 3.5 lb/gal Ready to Spray
  • Mixing Ratio: 1:1 by Volume with Reducer
  • Reducer: VOC-Grade Universal Reducer
  • Optional Catalyst: Up to 10 Percent of Unreduced Color Portion with Appropriate Isocyanate Hardener
  • Application: Overalls, Large Blend Area Repairs, and Ground-Coat Material
  • Coats: 2 to 4 Single Coats or Until Full Coverage Is Achieved
  • Flash Time Between Coats: Approximately 5 to 10 Minutes at 70 Fahrenheit
  • Clearcoat Window: 20 Minutes Minimum and 24 Hours Maximum at 70 Fahrenheit
  • Pot Life: Indefinite if Not Catalyzed
  • Viscosity at Gun: 13 to 15 Seconds Number 4 Zahn
  • Recommended Film Thickness: Approximately 0.4 to 0.8 Mil
  • Coverage: 286 Square Feet per Gallon at 0.6 Mil
  • Final Dry Sanding: P500 to P600 Grit
  • Final Wet Sanding: P800 to P1000 Grit
  • Spray Gun Setup: 1.3 to 1.5 Millimeter Gravity Feed or HVLP, 1.6 to 1.8 Millimeter Siphon Feed
  • Air Pressure at Gun: 30 Pounds per Square Inch Gravity Feed, 10 Pounds per Square Inch Maximum at HVLP Air Cap, 40 to 50 Pounds per Square Inch Siphon Feed
  • Packaging Type: Gallon Container
• The Series HFP Low VOC Urethane Basecoat can also be referred to as High Teck HFP550C-1 basecoat, Crush Orange low VOC basecoat, CHR PL4 basecoat, low VOC automotive basecoat, and 1 Gallon factory-pack basecoat.

High Teck serves the Paint, Body and Equipment market through distributor partnerships and supplies automotive refinish products across paint, primers, clear coats, solvents, abrasives, tools, and related shop categories.

Q: What reducer is used with this low VOC basecoat?
A: Mix 1 part HFP-Series basecoat with 1 part VOC-grade universal reducer by volume.

Q: What OEM color code is tied to this basecoat?
A: The OEM color code is CHR PL4.

Q: When can clearcoat be applied over the basecoat?
A: Allow a minimum of 20 minutes and a maximum of 24 hours flash time at 70 Fahrenheit before clearcoat; if the maximum is exceeded, scuff the surface and apply another coat.
