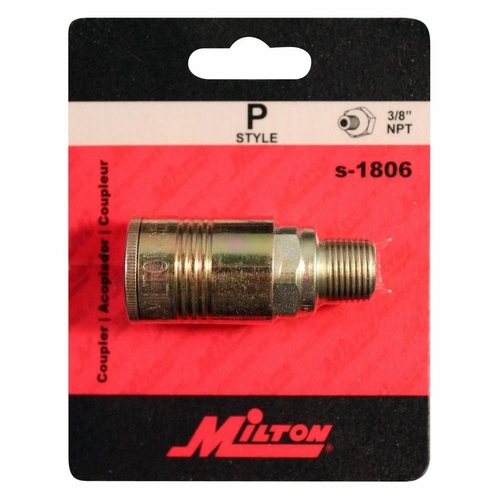

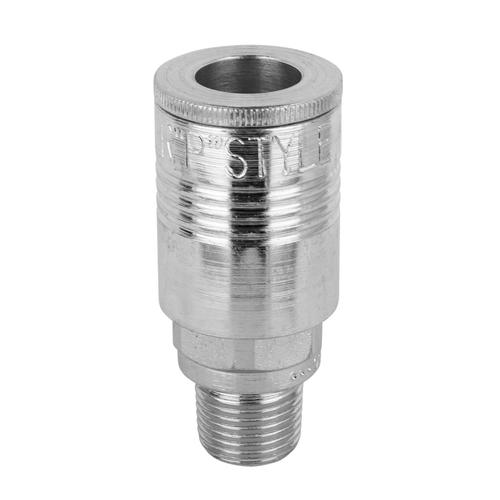

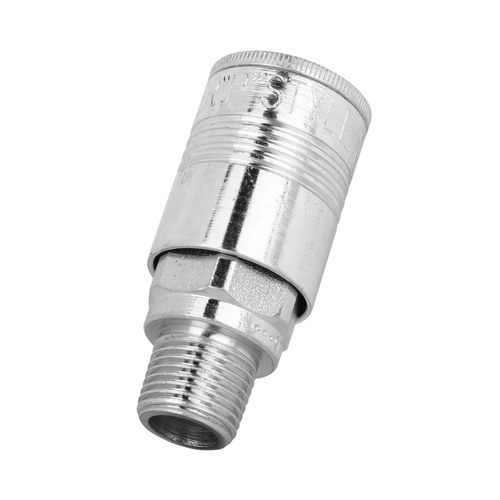

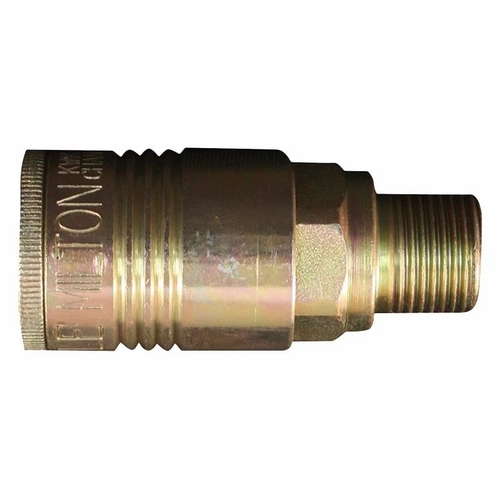

Milton 1806 P-Style Coupler Body, 3/8" MNPT, Steel

Milton 1806 P-Style Coupler Body, 3/8" MNPT, Steel

• Milton 1806 is a P-Style coupler body with a 3/8" male NPT connection for compressed air systems and pneumatic tool setups. This steel quick-connect coupler is designed to connect with compatible P-Style plugs, and it features 8 locking balls with a Buna-N seal for plug retention and air sealing.
• Features:
  • 3/8" male NPT connection threads into compatible air line ports and fittings for secure installation.
  • P-Style coupler body is designed to connect with compatible Milton P-Style plugs in pneumatic systems.
  • 8 locking balls help improve plug retention during repeated connect and disconnect cycles.
  • Buna-N seal supports air sealing performance in compressed air applications.
  • Steel construction is suited for repeated shop and industrial air tool use.
  • 68 SCFM airflow and 300 PSI maximum rating support higher flow pneumatic tool applications.
• Specifications:
  • Manufacturer: Milton
  • Part Number: 1806
  • MPN: S-1806
  • UPC: 030937018069
  • Product Type: Quick-connect coupler body
  • Style: P-Style
  • Thread Size: 3/8" MNPT
  • Material: Steel
  • Seal Material: Buna-N
  • Basic Flow Size: 3/8"
  • Air Flow: 68 SCFM
  • Maximum Pressure: 300 PSI
  • Quantity: 1 coupler body
  • System Compatibility or Application: Designed for use with compatible Milton P-Style plugs and 3/8" male NPT compressed air connections in pneumatic systems.
• The P-Style Coupler Body can also be referred to as air coupler body, quick-connect air coupler, 3/8" MNPT coupler, pneumatic coupler body, and P-Style air fitting.

Milton manufactures pneumatic fittings, couplers, plugs, inflation equipment, and shop air accessories for automotive, industrial, and maintenance applications. The brand is widely used for compressed air connection products and air system service equipment.

Q: What plugs are compatible with Milton 1806?

A: This coupler body is designed for use with compatible P-Style plugs.

Q: What thread connection does Milton 1806 use?

A: It uses a 3/8" male NPT connection for installation into a matching female threaded air line port or fitting.

Q: Is Milton 1806 intended for higher flow air applications?

A: Yes. Verified product data lists a 3/8" basic flow size, 68 SCFM airflow, and a maximum pressure rating of 300 PSI.
