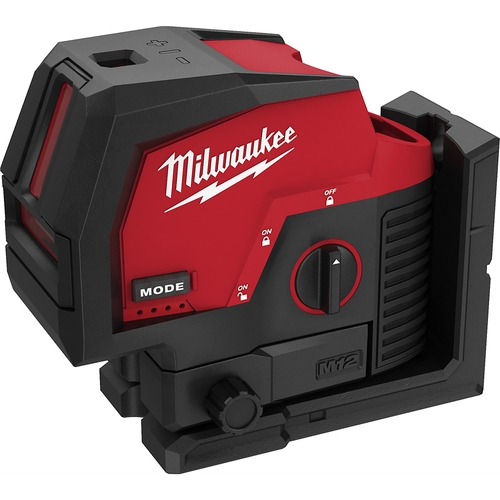

Milwaukee 3622-20 M12 Green Cross Line and Plumb Points Laser, 125 Feet Working Range, Tool Only

Milwaukee 3622-20 M12 Green Cross Line and Plumb Points Laser, 125 Feet Working Range, Tool Only

• Milwaukee 3622-20 is a cordless M12 green laser for level, alignment, and plumb transfer work. The laser projects horizontal and vertical green lines plus plumb points for floor-to-ceiling layout applications.
• Features:
  • 15+ hours of continuous runtime with an M12 REDLITHIUM 3.0 CP battery, sold separately.
  • High-intensity green laser visibility reaches 125 Feet, with 165 Feet range when used with a compatible detector.
  • Accuracy is rated at +/- 1/8" at 33 Feet for layout and alignment work.
  • Integrated magnetic bracket has micro control and pivots on the plumb point for alignment.
  • IP54 water and dust resistance, 1 Meter impact resistance, amplified rare earth magnets, and 1/4-20 and 5/8-11 thread mounts support jobsite setup.
• Specifications:
  • Manufacturer: Milwaukee
  • Part Number: 3622-20
  • Product Type: Cordless green cross line and plumb points laser
  • Power Source: Cordless
  • Power Platform: Milwaukee M12
  • Package Type: Tool only
  • Battery and Charger: Sold separately
  • Laser Color: Green
  • Line Functions: Horizontal line, vertical line, and two plumb points
  • Working Range: 125 Feet
  • Range with Detector: 165 Feet
  • Accuracy: +/- 1/8" at 33 Feet
  • Self-Leveling Range: +/- 4 Degrees Tilt
  • Plumb Point Access: 2"
  • Thread Mounts: 1/4-20 and 5/8-11
  • Runtime Reference: 15+ Hours with M12 REDLITHIUM 3.0 CP battery
  • Bracket Type: Integrated magnetic bracket with micro control
  • Magnet Type: Amplified rare earth magnets
  • Ingress Rating: IP54 water and dust resistant
  • Impact Resistance: 1 Meter
  • System Compatibility: Milwaukee M12 batteries
  • Quantity: 1 laser tool
• The M12 Green Cross Line and Plumb Points Laser can also be referred to as Milwaukee 3622-20 laser level, M12 green cross line laser, cordless plumb points laser, green line laser level, and Milwaukee M12 layout laser.

Milwaukee, founded in 1924, develops power tools, outdoor power equipment, accessories, hand tools, storage, lighting, safety products, and digital tool solutions for professional construction and trade users.

Q: Does the Milwaukee 3622-20 include a battery or charger?
A: No. The 3622-20 is a tool-only model, and Milwaukee M12 batteries and chargers are sold separately.

Q: What layout functions does this laser have?
A: It projects a horizontal green line, a vertical green line, and two plumb points for floor-to-ceiling transfers.

Q: What mounting options are built into the laser?
A: The laser has an integrated magnetic bracket with micro control, amplified rare earth magnets, and 1/4-20 and 5/8-11 thread mounts.
