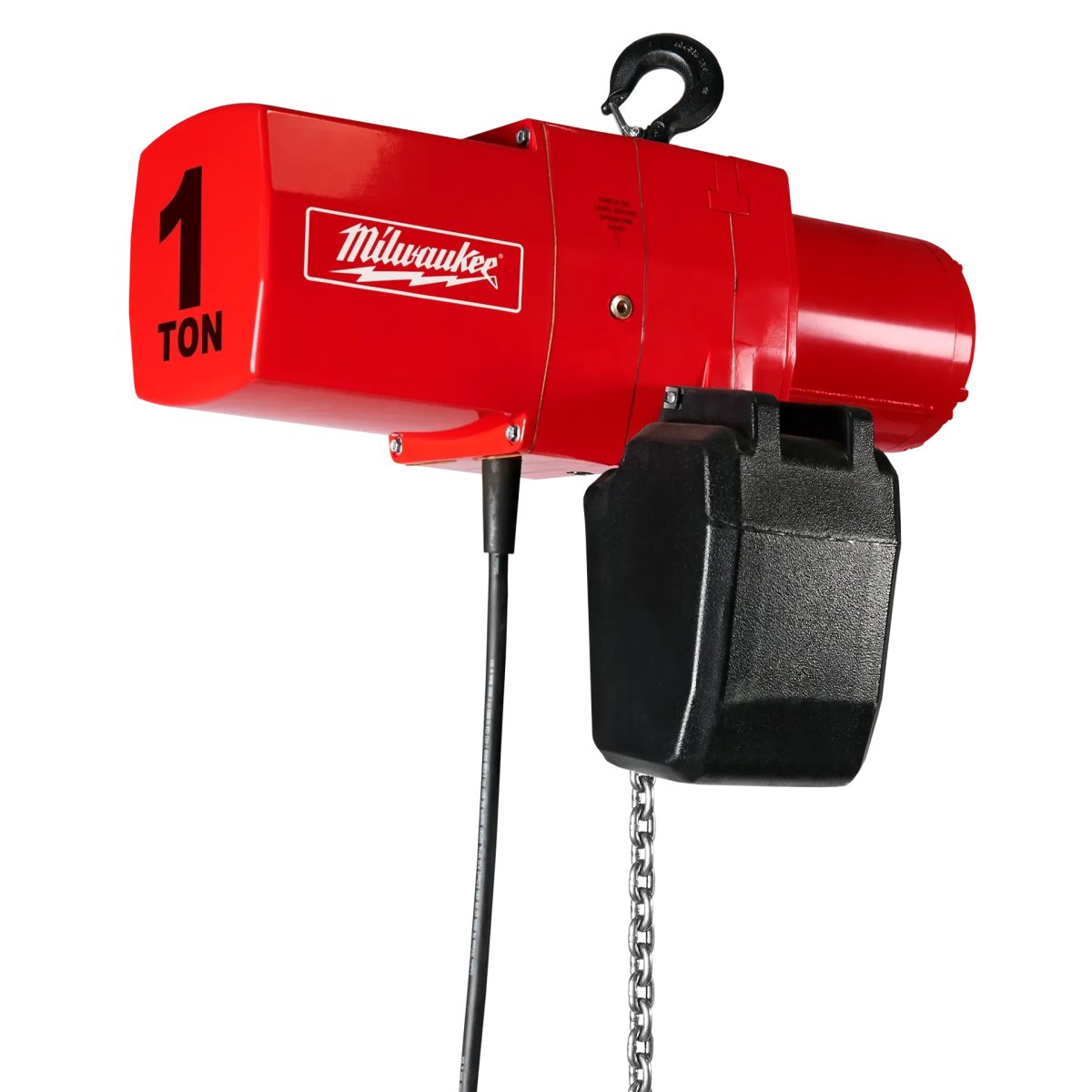

Milwaukee 9565 1 Ton Electric Chain Hoist, 10 Foot Lift Height, 16 Feet Per Minute

Milwaukee 9565 1 Ton Electric Chain Hoist, 10 Foot Lift Height, 16 Feet Per Minute

• Milwaukee 9565 is an electric chain hoist for powered lifting, positive load holding, and load spotting. The corded hoist uses AC power, pushbutton operation, an overload limiting clutch, and adjustable limit switches for regulating load travel.
• Features:
  • Built-in multiple-disc magnetic brake provides positive load holding and spotting.
  • Adjustable upper and lower limit switches regulate load travel.
  • Overload limiting clutch is included for load protection.
  • Latch-type top hook is built into the hoist mounting configuration.
  • 24 Volt pushbutton station operates by thumb, trigger, or two-handed control.

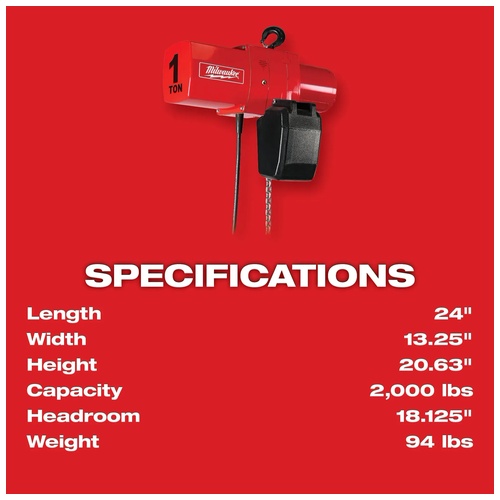

• Specifications:
  • Manufacturer: Milwaukee
  • Part Number: 9565
  • UPC: 045242069156
  • Product Type: Electric chain hoist
  • Rated Load: 1 Ton
  • Lift Height: 10 Feet
  • Lifting Speed: 16 Feet Per Minute
  • Voltage: 115/230 Volt AC
  • Amperage: 16 Amp at low voltage
  • Brake Type: Multiple-disc magnetic brake
  • Travel Control: Adjustable upper and lower limit switches
  • Load Protection: Overload limiting clutch
  • Mounting Type: Latch-type top hook
  • Control Type: 24 Volt pushbutton station
  • Quantity: 1 electric chain hoist
• The 1 Ton Electric Chain Hoist can also be referred to as Milwaukee 9565 hoist, 1 Ton electric chain hoist, 10 Foot lift chain hoist, 115/230 Volt electric hoist, and hook mount electric hoist.

Milwaukee began in 1924 and manufactures professional power tools, hand tools, batteries, chargers, accessories, storage products, outdoor power equipment, jobsite lighting, and trade-focused solutions for construction users.

Q: What power input does Milwaukee 9565 use?
A: The hoist uses 115/230 Volt AC and draws 16 Amp at low voltage.

Q: What holds and spots the load?
A: The built-in multiple-disc magnetic brake provides positive load holding and spotting.

Q: How is Milwaukee 9565 controlled?
A: It uses a 24 Volt pushbutton station for thumb, trigger, or two-handed operation.
