OTC 3492 Digital Pressure/Temperature Analyzer Kit, Heavy-Duty

OTC 3492 Digital Pressure/Temperature Analyzer Kit, Heavy-Duty

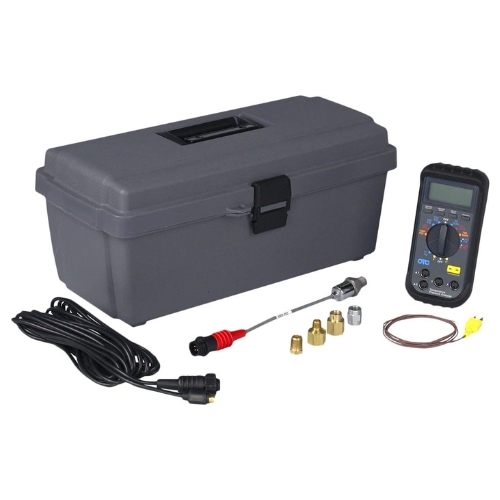

• The OTC 3492 Heavy-Duty Digital Pressure/Temperature Analyzer is a multi-function diagnostic tool for professional vehicle service; it measures pressures up to 5,000 PSI, monitors temperature via bead-type probe, includes four pressure input receptacles, and comes with protective boot and storage case.
• Features:
  • High pressure range with 5,000 PSI transducer allows use across hydraulic, fuel, transmission, and A/C pressure diagnostics.
  • Four pressure input receptacles for simultaneous or alternate connections; protected by rugged casing and rubber boot for durability in shop environments.
  • Bead-type temperature probe included for accurate temp readings to correlate with pressure readings; includes 20-foot cable and assorted fittings.
  • Impact resistant body, ergonomic design, and portable kit (storage case included) built for frequent use under heavy shop conditions.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 3492
  • Pressure Range: up to 5,000 PSI (with included transducer No. 3491-02)
  • Temperature Sensor: bead-type temperature probe (No. 3500-05)
  • Cable Length: 20 feet
  • Inputs: four pressure input receptacles built into analyzer housing
  • Dimensions: 16 x 9 x 7 inches ( 41 x 23 x 18 cm)
• The OTC 3492 can also be referred to as OTC digital pressure temp kit, 5,000 PSI pressure/temperature tester, heavy-duty transducer pressure analyzer, multi-input pressure/temperature diagnostic tool, OTC 3492 shop gauge-probe set.

OTC is a leading hardware and automotive service equipment manufacturer that designs and builds high-quality tools for vehicle diagnostics, lifting, and repair. Known for its innovation and durability.

Q: What kinds of pressures can this unit measure?
A: The included transducer (No. 3491-02) measures pressures up to 5,000 PSI, making it suitable for hydraulic, transmission, fuel, oil, A/C, and similar service tasks.

Q: What temperature probe is included, and how is it used?
A: A bead-type temperature probe (No. 3500-05) is included, along with a 20-foot cable (No. 3491-13), which allows placing the probe in tight or hot locations to monitor temperature correlated to pressure readings.

Q: How many pressure inputs does the kit provide?
A: It has four pressure input receptacles so you can connect multiple measurement points without needing to swap fittings constantly.
