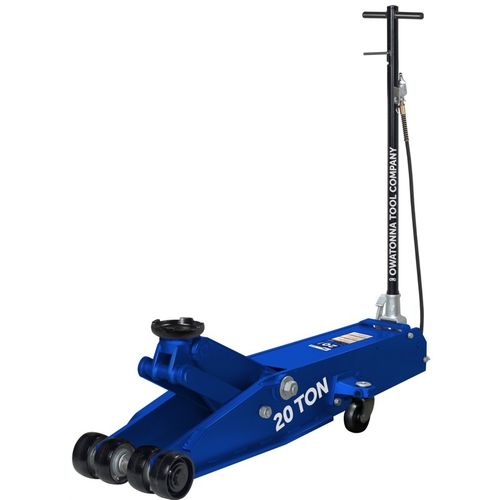

OTC HDJ20P 20 Ton Air/Hydraulic Service Jack, 7.5 Inch to 23.8 Inch Lift Range

OTC HDJ20P 20 Ton Air/Hydraulic Service Jack, 7.5 Inch to 23.8 Inch Lift Range

• OTC HDJ20P is an air assisted hydraulic service jack for large vehicle service on bucket trucks, school buses, city buses, garbage trucks, and more. It combines air, foot, and jack-handle lifting operation for shop service.
• Features:
  • Air-assist, foot, and jack-handle pumping actions offer three lift actuation methods.
  • Rugged steel frame members pair with a low-profile stance and extended height.
  • Large metal wheels and swivel casters roll on internal bearings.
  • Welded hydraulic pump and cylinder construction, chrome plated ram, and wiper seals protect the hydraulic system.
  • Overload and bypass safety valves prevent use beyond rated capacity and ram overextension.
• Includes:
  • HDJ20P 20 Ton capacity air assisted service jack
  • 1-piece handle with spring locking mechanism
  • OTC Owners Manual for Service Jacks
• Specifications:
  • Manufacturer: OTC
  • Part Number: HDJ20P
  • UPC: 731413593406
  • Product Type: Air assisted hydraulic service jack
  • Capacity: 20 Ton
  • Air Pressure: 80 to 120 Pounds per Square Inch
  • Lifting Range: 7.5 Inches to 23.8 Inches
  • Reach: 110.4 Inches
  • Saddle: 6.5 Inch diameter steel crown
  • Frame Height: 10.2 Inches
  • Handle Length: 47.5 Inches, 3-position spring-assisted locking
  • Footprint: 18.125 Inches x 61.375 Inches
  • Casters: 6, with 4 front fixed and 2 mid-body swivel
  • Product Dimensions: 71.5 Inches x 21.5 Inches x 17 Inches
  • Product Weight: 631 Pounds
  • Standards: ASME PASE-2019 service jack standards
  • Applications: Bucket trucks, school buses, city buses, garbage trucks, and other large vehicles
  • Packaging Type: Each
  • Quantity: 1 service jack
• The OTC HDJ20P 20 Ton Air/Hydraulic Service Jack can also be referred to as OTC HDJ20P jack, 20 Ton air hydraulic service jack, heavy duty service jack, commercial vehicle floor jack, and air assisted hydraulic jack.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What air pressure range does the HDJ20P use?
A: The air assist operating range is 80 to 120 Pounds per Square Inch.

Q: What safety features are built into the HDJ20P?
A: Overload and bypass safety valves prevent use beyond rated capacity and ram overextension.

Q: What handle comes with the OTC HDJ20P?
A: It includes a 1-piece handle with spring locking mechanism, specified as a 47.5 Inch, 3-position spring-assisted locking handle.
