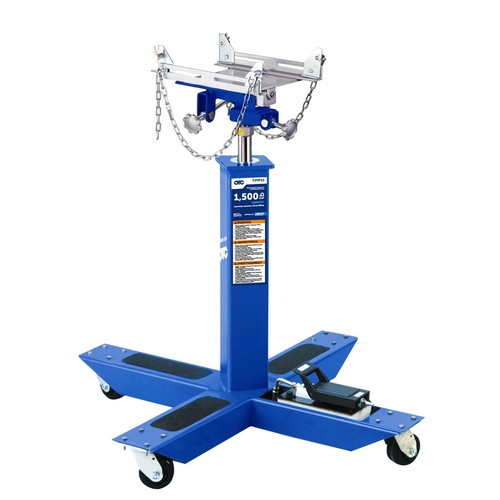

OTC TJHP15 Air-Assisted 1,500 Pound Capacity High-Lift Transmission Jack, 41.5 Inch to 65 Inch Height Range

OTC TJHP15 Air-Assisted 1,500 Pound Capacity High-Lift Transmission Jack, 41.5 Inch to 65 Inch Height Range

• OTC TJHP15 is an air assisted hydraulic transmission jack for removing and installing truck, bus, and automobile transmissions. The high-lift jack uses a universal saddle, adjustable corner brackets, and safety chains for load positioning during drivetrain service.
• Features:
  • Foot-operated air pump controls the air assisted hydraulic lifting operation.
  • Universal saddle, adjustable corner brackets, and safety chains secure components during removal, transport, and installation.
  • Head tilts front to back and side to side for transmission and driveline component alignment.
  • Rugged wall tubing and oversized base add strength and stability for transmission service.
  • Flash-chromed rams, wide-leg base, polyurethane swivel wheels, built-in overload system, and 2 locking casters are built into the jack.
• Specifications:
  • Manufacturer: OTC
  • Part Number: TJHP15
  • UPC: 731413592980
  • Product Type: Air assisted high-lift transmission jack
  • Capacity: 1,500 Pounds
  • Air Pressure: 80 to 140 Pounds per Square Inch
  • Minimum Height: 41.5 Inches retracted
  • Maximum Height: 65 Inches
  • Forward Tilt: 50 Degrees
  • Backward Tilt: 38 Degrees
  • Side Tilt: 14 Degrees side to side
  • Leg Width: 46 Inches
  • Wheel Size: 4 Inch polyurethane swivel wheels
  • Product Dimensions: 48 Inches x 36 Inches x 45 Inches
  • Product Weight: 312 Pounds
  • Standards: ASME PASE-2019 transmission jack standards
  • Compatible Adapters: OTC 1870 Universal transmission adapter, OTC 1758 Fuel tank handler, and OTC 1797 Heavy-duty clutch adapter
  • Applications: Truck, bus, and automobile transmissions
  • Packaging Type: Each
  • Quantity: 1 transmission jack
• The OTC TJHP15 Air-Assisted 1,500 Pound Capacity High-Lift Transmission Jack can also be referred to as OTC TJHP15 jack, air-assisted transmission jack, 1,500 Pound transmission jack, high-lift transmission jack, and hydraulic transmission jack.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What air pressure range does the TJHP15 use?
A: The air assisted hydraulic operation uses 80 to 140 Pounds per Square Inch.

Q: How does the transmission jack head adjust?
A: The head tilts 50 Degrees forward, 38 Degrees backward, and 14 Degrees side to side.

Q: What OTC adapters are compatible with this jack?
A: Compatible adapters include the OTC 1870 Universal transmission adapter, OTC 1758 Fuel tank handler, and OTC 1797 Heavy-duty clutch adapter.
