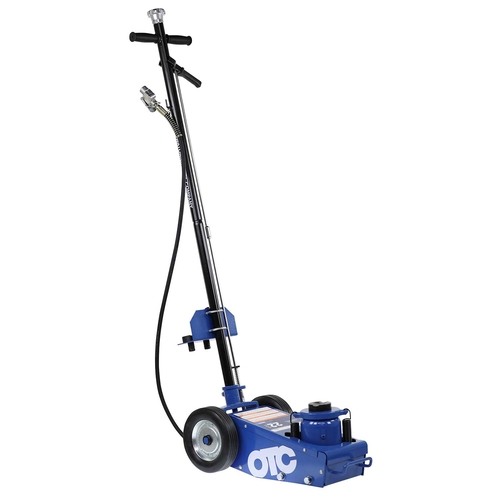

OTC UA22 22-Ton Air/Hydraulic Under Axle Jack, 8.27" to 20-2/3" Lift Range

OTC UA22 22-Ton Air/Hydraulic Under Axle Jack, 8.27" to 20-2/3" Lift Range

• OTC UA22 is an air/hydraulic under axle service jack for safely lifting heavy-duty vehicles in garages, equipment dealers, commercial service, and more. It has a long T-handle, self-retracting ram, large rubber-tired steel wheels, and saddle attachments for height adjustments.
• Features:
  • Long 49-1/2" T-handle positions the jack under vehicles with long overhangs.
  • One pull of the handle activates the self-retracting 22-ton capacity ram without crawling underneath the vehicle.
  • Welded hydraulic pump and cylinder construction provides increased strength and leak prevention.
  • Chrome-plated ram adds rust resistance, and wiper seals protect the hydraulic system from contaminants.
  • Large rubber-tired steel wheels add maneuverability and movement on most types of terrain.
• Includes:
  • 22 Ton Under Axle Service Jack
  • 49-1/2" T Handle with position control rod and lever
  • 3 attachments for adjusting height application
  • OTC Owners Manual for service jacks with training operating instruction
• Specifications:
  • Manufacturer: OTC Tools & Equipment
  • Part Number: UA22
  • UPC: 731413592652
  • Product Type: Under axle service jack
  • Capacity: 22 tons
  • Operation: Air and hydraulic
  • Air Pressure: 90 - 145 PSI
  • Lifting Range: 8.27" to 20-2/3" using longest saddle
  • Reach: 69.87"
  • Cylinder Stroke: 4-1/2"
  • Extended Screw Length: 4-1/4"
  • Saddle: 3" diameter, round with center notch
  • Saddle Lengths: 3/4", 1-15/16", and 3-7/8"
  • Frame Height: 8.27"
  • Handle Length: 49-1/2" T Handle with position control rod and lever
  • Footprint: 22.63" x 11.73"
  • Wheels: 2 fixed, 7.88" rubberized steel
  • Product Dimensions: 22.6" x 11.7" x 8.27"
  • Product Weight: 100 lb
  • Safety Standard: Meets all 5 ASME PASE-2019 safety standards for service jacks
• The 22-Ton Air/Hydraulic Under Axle Jack can also be referred to as 22 ton axle jack, air hydraulic axle jack, heavy-duty under axle jack, commercial vehicle service jack, and truck axle jack.

OTC Tools & Equipment is a Bosch Automotive Service Solutions brand supplying professional diagnostic equipment, specialty service tools, shop equipment, and heavy-duty service tools for automotive and commercial vehicle repair.

Q: What air pressure does OTC UA22 require?
A: It operates at 90 - 145 PSI.

Q: What saddle lengths are included?
A: The included saddle lengths are 3/4", 1-15/16", and 3-7/8".

Q: What is the lifting range with the longest saddle?
A: The lifting range is 8.27" to 20-2/3" using the longest saddle.
