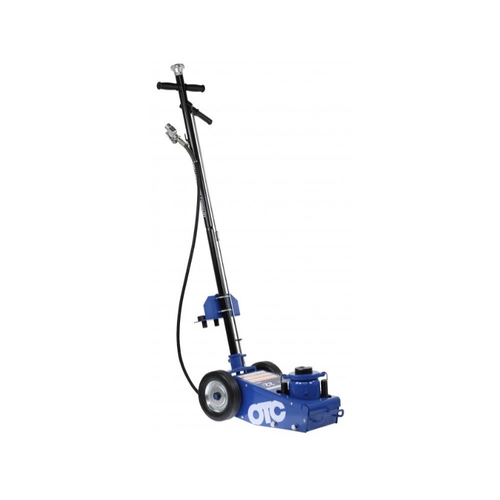

OTC UA22 22 Ton Under Axle Jack, 8.27 Inch to 20-2/3 Inch Lift Range

OTC UA22 22 Ton Under Axle Jack, 8.27 Inch to 20-2/3 Inch Lift Range

• OTC UA22 is an air/hydraulic under axle service jack for safely lifting heavy duty vehicles. The jack combines air assist operation, a self-retracting spring return ram, a long T handle, and saddle attachments for shop lifting tasks.
• Features:
  • Self-retracting spring return activates the ram with one pull of the handle.
  • Long T handle positions the jack under vehicles with long overhangs.
  • Large rubber-tired steel wheels support maneuverability and movement on most types of terrain.
  • Welded hydraulic pump and cylinder construction, chrome plated ram, and wiper seals protect the hydraulic system.
  • Wide rugged base adds stability and strength during lifting.
• Includes:
  • 22 Ton Under Axle Service Jack
  • 49.5 Inch T Handle with position control rod and lever
  • 3 Attachments for adjusting height application
  • OTC Owners Manual for service jacks with training operating instruction
• Specifications:
  • Manufacturer: OTC
  • Part Number: UA22
  • UPC: 731413048982
  • Product Type: Air/hydraulic under axle service jack
  • Capacity: 22 Ton
  • Air Pressure: 90 to 145 Pounds per Square Inch
  • Lifting Range: 8.27 Inches to 20-2/3 Inches using longest saddle
  • Reach: 69.87 Inches
  • Saddle: 3 Inch diameter, round with center notch
  • Saddle Attachments: 3/4 Inch, 1-15/16 Inch, and 3-7/8 Inch
  • Maximum Height Using 3/4 Inch Saddle: 17-3/4 Inches
  • Maximum Height Using 1-15/16 Inch Saddle: 18-15/16 Inches
  • Maximum Height Using 3-7/8 Inch Saddle: 20-2/3 Inches
  • Frame Height: 8.27 Inches
  • Handle Length: 47.24 Inches, T handle with lowering lever and air-chuck hook
  • Footprint: 22.63 Inches x 11.73 Inches
  • Wheels: 2 fixed, 7.88 Inch rubberized steel
  • Cylinder Stroke: 4.5 Inches
  • Extended Screw Length: 4.25 Inches
  • Product Dimensions: 22.6 Inches x 11.7 Inches x 8.27 Inches
  • Product Weight: 100 Pounds
  • Standards: ASME PASE-2019 service jack standards
  • Applications: Heavy duty vehicles
  • Packaging Type: Each
  • Quantity: 1 under axle jack
• The OTC UA22 22 Ton Under Axle Jack can also be referred to as OTC UA22 jack, 22 Ton axle jack, air hydraulic under axle jack, heavy duty under axle jack, and under axle service jack.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What air pressure range does the UA22 use?
A: The air assist operation uses 90 to 145 Pounds per Square Inch.

Q: What saddle attachments come with the UA22?
A: It includes 3/4 Inch, 1-15/16 Inch, and 3-7/8 Inch saddle attachments for height adjustment.

Q: What does the spring return feature do?
A: The self-retracting spring return lowers the piston ram quickly with no load.
