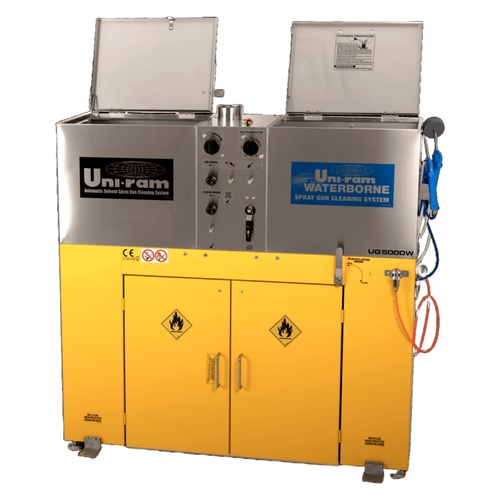

Uni-Ram UG5000W Automatic Dual Tank Spray Gun Washer, Solvent and Water, Stainless Steel

Uni-Ram UG5000W Automatic Dual Tank Spray Gun Washer, Solvent and Water, Stainless Steel

• The Uni-Ram UG5000W is a dual tank spray gun washer combining an automatic solvent-side cleaner for primers and clear coat paints with a manual water-side cleaner for waterborne base paints. The solvent side (left) automatically washes, air flushes, and rinses two spray guns and hoses in under a minute, while the water side (right) manually flushes, brushes, and air-dries one waterborne spray gun at a time. Both tanks are constructed from 304 grade stainless steel.
• Solvent Tank Features (Left Side):
  • Top-loading design cleans 2 spray guns in under 1 minute.
  • Wash timer activates a 4" dual-diaphragm pump that outputs 3.7 gallons of solvent per minute.
  • Flow-through brush, activated by a foot pedal and powered by a 2" dual-diaphragm pump with adjustable flow, removes hardened overspray from the spray gun.
  • Mounting adapters fit popular conventional and disposable cup systems to flush the paint channel.
  • 14 swirl action jets wash overspray from the exterior of the spray guns.
  • Automatic shut-off halts the pump immediately if the lid is raised during cleaning.
  • Stainless steel mesh filter keeps solvent clean and protects the diaphragm pump from debris.
  • Plastic cone prevents solvent from entering the gun's air passageway and maintains positive air flow.
  • Automatic fume extractor removes solvent fumes from the work area when the lid is raised.
  • Lower cabinet is powder-coated mild steel with a closing door, floor, and adjustable feet.
  • Drain valve under the tank can be closed to prevent solvent spillage when refilling the wash pail.
  • CE Approved.
• Water Tank Features (Right Side):
  • Wash gun delivers high-pressure clean water to flush the paint channel in under 10 seconds.
  • Flow-through brush removes overspray from the outside of the gun.
  • Both cleaning tools are activated by a foot pedal and powered by a 2" diaphragm pump with flow control.
  • Air gun dries the spray gun; a spray-out test verifies a clean paint channel.
  • "GREEN" Water Recovery System filters used water treated with Uni-ram's COAG KLEEN flocculating agent, allowing recovered water to be reused multiple times before disposal.
  • For use with waterborne paints only.
• Includes:
  • Closed-Top HDPE Wash Pail (Pre-Installed, Solvent Side)
  • Open-Top Plastic Pail with Filters (Pre-Installed, Water Side)
  • (2) Additional Solvent Pails (Stored in Cabinet)
  • Trigger Clamps
  • Standard Operating Procedures (SOPs)
  • 1 Quart AQUA KLEEN Cleaning Solution (102-8200)
  • 1 Container (2.2 lb.) COAG KLEEN Flocculant Crystals (102-8300)
  • 2 Filters
• Application Notes:
  • The clean solvent pail used for rinsing on the solvent side is not included and must be supplied by the user.
  • The water side is for use with waterborne paints only.
• Compatible Applications:
  • Solvent-Based Primers and Clear Coat Paints
  • Waterborne Base Paints
  • Automotive Refinishing and Industrial Paint Shops
• Specifications:
  • Manufacturer: Uni-Ram
  • Part Number: UG5000W
  • Product Line: Cascade
  • Product Type: Automatic Dual Tank Spray Gun Washer
  • Type: 2-Tank Model, Automatic (Solvent Side) / Manual (Water Side)
  • Overall Dimensions: 47" W x 17" D x 46" H
  • Tank Material: 304 Stainless Steel
  • Solvent Tank Size: 17.25" W x 13.5" D x 14" H
  • Diaphragm Pump Size: 4"
  • Pump Air Consumption: 2 CFM
  • Pump Output: 3.7 Gallons per Minute at 85 PSI
  • Required Air Pressure: 85 PSI
  • Number of Guns Cleaned: 2
  • Application: Automotive Industry
• This item is also often referred to as a dual tank spray gun washer, solvent and water gun cleaner, automatic gun washer, waterborne spray gun cleaner, and Uni-Ram Cascade gunwasher.

Uni-Ram manufactures automatic spray gun washers and solvent recovery equipment for automotive and industrial paint shop applications.

Q: Can the UG5000W clean both solvent and waterborne spray guns?
A: Yes, the solvent side (left) automatically cleans guns used with solvent-based primers and clear coats, while the water side (right) manually cleans guns used with waterborne base paints.

Q: How many spray guns can be cleaned at once on the solvent side?
A: The solvent side cleans 2 spray guns in under 1 minute.

Q: Is the clean solvent rinse pail included?
A: No, the clean solvent pail used for rinsing is not included and must be supplied by the user.

Q: What is included with the water recovery system?
A: The "GREEN" Water Recovery System includes 1 container of COAG KLEEN flocculant crystals and 2 filters, allowing recovered water to be reused multiple times before disposal.
