Anest Iwata 9231 AirGunsa HVLP Spray Gun, 1.5 mm Nozzle

Anest Iwata 9231 AirGunsa HVLP Spray Gun, 1.5 mm Nozzle

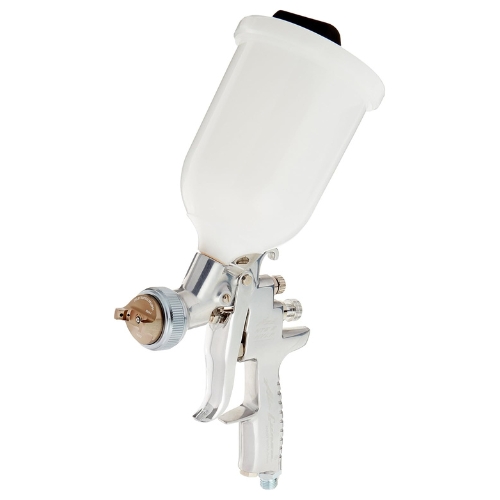

• The Anest Iwata 9231 is a center-post gravity feed HVLP spray gun equipped with a 1.5 mm fluid nozzle and a 600 mL plastic gravity cup. It is engineered for sealers and mid-coats, offering a fine, flat spray pattern at modest pressure.
• Features:
  • 1.5 mm fluid tip suited for sealers and materials requiring controlled atomization.
  • Polished external surfaces for easier cleanup and maintenance.
  • Lightweight, ergonomic body and softer trigger pull to reduce operator fatigue.
  • All wetted parts made of stainless steel for corrosion resistance.
  • Compatible with 3M PPS cup systems (Type 43) for efficient material changes.
• Specifications:
  • Manufacturer: Anest Iwata
  • Model / Part: 9231
  • Nozzle / Fluid Tip: 1.5 mm
  • Cup Capacity: 600 mL gravity cup (plastic)
  • Recommended Inlet Pressure: 28 psi
  • Air Consumption: 12.0 CFM
  • Spray Pattern Width: 11.5 inch
  • System Compatibility: Designed for HVLP application of sealers, fillers, and mid-coats in automotive refinishing and industrial finishing settings
  • Quantity: One spray gun with 600 mL cup
• The Anest Iwata 9231 spray gun is also known as Iwata 1.5 mm HVLP gun, AZ3HV2-15G gravity feed spray gun, IWA-9231 sealer HVLP gun, AirGunsa 9231, and center-post HVLP cup gun.

Anest Iwata is a global manufacturer of professional spray equipment and air compressor systems, renowned for its precision engineering, high performance, and commitment to delivering superior finishing solutions for automotive, industrial, and fine art applications.

Q: What air supply is required for this gun?
A: It typically operates at about 28 psi inlet pressure with an air consumption near 12.0 CFM.

Q: Is it suitable for primers and basecoats?
A: The IWA9231 with its 1.5 mm nozzle is optimal for sealers and mid-coats; it may be used for lighter primers or basecoats in controlled operations, but may not atomize heavier materials as well as a larger tip.

Q: Can I switch the nozzle to a different size later?
A: Yes, The AZ3HV2 body typically supports interchangeable fluid tips and air caps (e.g. 1.3 mm, 1.8 mm, 2.0 mm) with compatible kits, so you can adapt to different materials.
