OTC 5285 Power Train Lift, 1,650 lb Capacity, Air Hydraulic Scissor Table

OTC 5285 Power Train Lift, 1,650 lb Capacity, Air Hydraulic Scissor Table

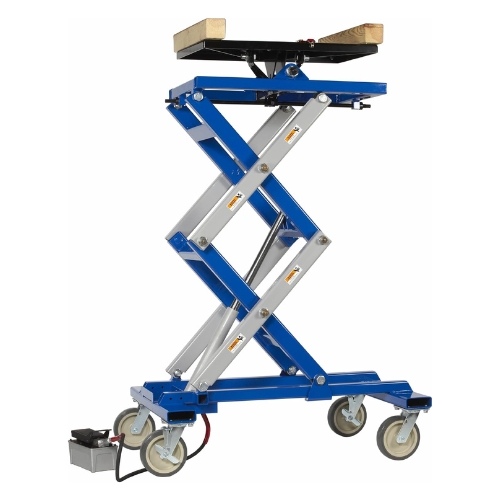

• The OTC 5285 Power Train Lift is a professional-grade air/hydraulic scissor table designed for lifting and positioning engines, transmissions, drive axles, and EV battery packs up to 1,650 lb. It provides full 360degrees access for alignment and service precision in demanding shop environments.
• Features:
  • Scissor-style lift design offers unobstructed 360degrees access for improved alignment and maneuverability
  • Foot-operated air/hydraulic pump with remote hose provides hands-free lift and lowering control
  • Tilt capability of ±15degrees side-to-side and fore/aft enables precise drivetrain alignment
  • Heavy-duty steel frame construction ensures strength and long service life
  • Large casters provide smooth mobility and stability during load handling
• Specifications:
  • Manufacturer: OTC (Bosch Automotive Service Solutions)
  • Part Number: 5285
  • Load Capacity: 1,650 lb
  • Lift Range: 31-1/2 inches (minimum) to 74-1/2 inches (maximum)
  • Tilt Capability: ±15degrees side-to-side and ±15degrees fore/aft
  • Material: Heavy-duty steel scissor frame with air/hydraulic system
  • Application: Designed for lifting and aligning powertrain assemblies such as engines, transmissions, axles, and EV battery packs

OTC, part of Bosch Automotive Service Solutions, engineered the 5285 Power Train Lift to simplify drivetrain handling in modern repair facilities. Its air-assisted hydraulic system, precision tilt controls, and 360degrees scissor design enable technicians to perform installation and service tasks safely, efficiently, and with full component access.

Q: What is the lift height range?
A: The lift operates from 31-1/2 inches up to 74-1/2 inches, suitable for a wide range of service applications.

Q: Does the table offer tilt adjustment?
A: Yes - the platform tilts ±15degrees side-to-side and fore/aft to ensure accurate drivetrain alignment.

Q: What types of components can it lift?
A: It handles engines, transmissions, drive axles, and EV battery packs up to 1,650 lb with stability and precision.
