Sunex 1501 1500 lb Hydraulic Wheel Dolly, Tilting Frame, Ball-Bearing Casters

Sunex 1501 1500 lb Hydraulic Wheel Dolly, Tilting Frame, Ball-Bearing Casters

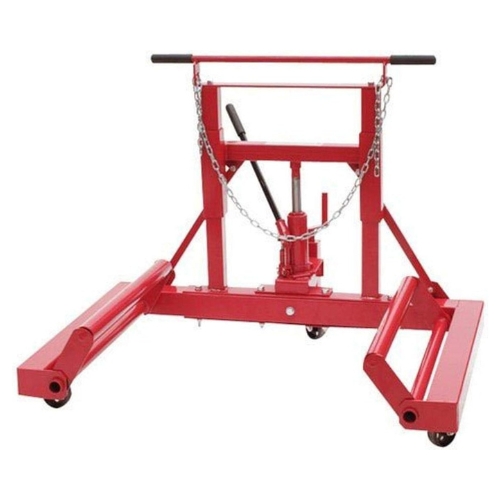

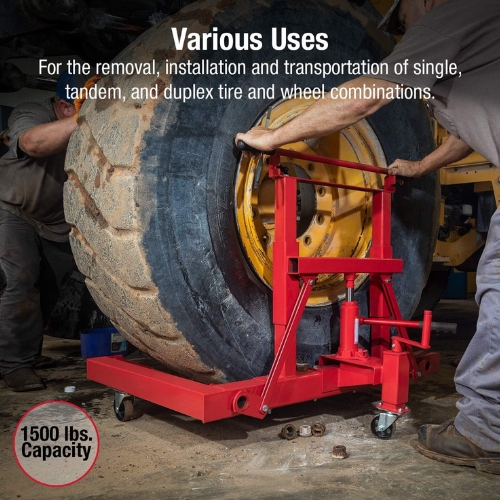

• The Sunex 1501 is a hydraulic wheel dolly rated for 1,500 lb capacity, designed to assist in removal, installation, and transport of single, tandem, and duplex tire and wheel assemblies.
• Features:

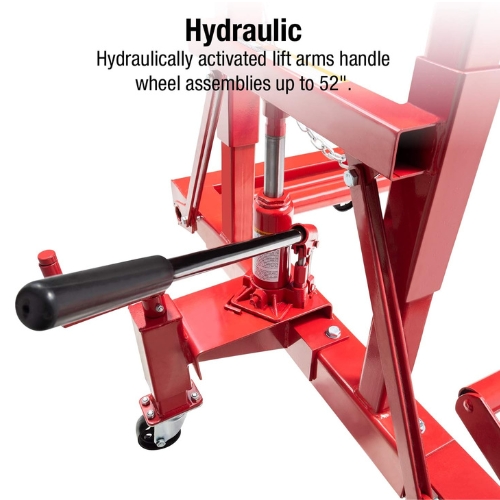

  • Hydraulically activated lift arms for smooth raising and lowering

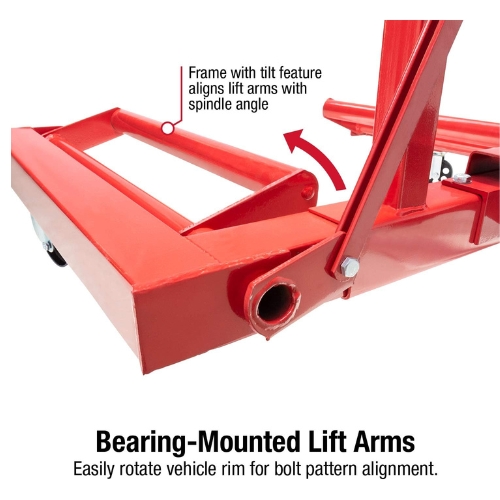

  • Tilting frame to align lift arms with wheel spindle angle
  • Ball-bearing mounted lift arms to facilitate rotation for bolt pattern matching

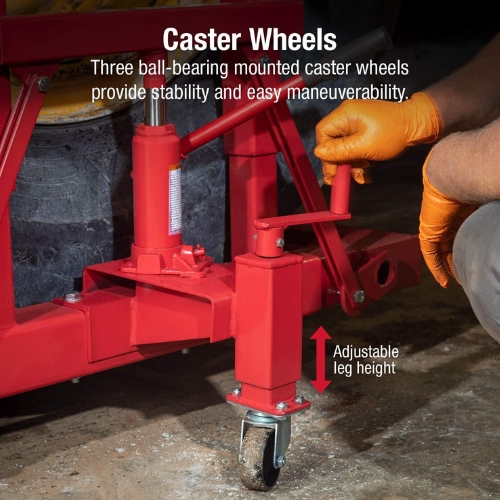

  • Ball-bearing mounted caster wheels for maneuverability and stability
• Specifications:
  • Manufacturer: Sunex Tools
  • Part Number: 1501
  • Load Capacity: 1,500 lb
  • Length: 31 inches
  • Width: 43 inches
  • Height: 35 inches
  • Lift Arm Length: 26 inches
  • Lift Arm Spread (Min/Max): 21 to 25 inches
  • Lift Travel: 8-1/4 inches
  • Application / System Compatibility: Designed for handling heavy wheels and tires on vehicles with single, tandem, or duplex configurations
• Also known as Sunex 1500 lb hydraulic wheel dolly, Sunex 1501 tilting frame dolly, Sunex wheel service dolly 1501, and Sunex heavy duty wheel dolly.

Q: What is the range of motion for the lift arms?
A: The lift arms travel approximately 8-1/4 inches and can be adjusted in spread from 21 to 25 inches.

Q: Can the dolly rotate the wheel for bolt alignment?
A: Yes - it uses ball-bearing lift arms to rotate the wheel without repositioning the dolly.

Q: What is the footprint of the dolly?
A: It measures 31 x 43 inches in length and width, with 35 inches in height at rest.
