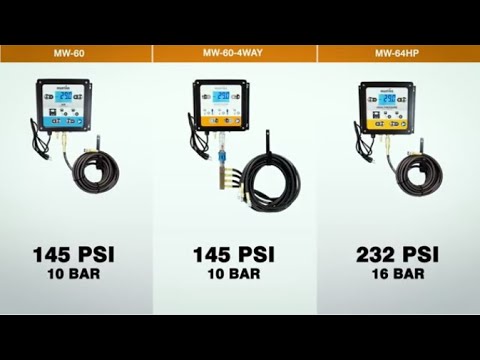

Martins Industries Flatematic MW-64HP High Pressure Automatic Tire Inflator

Martins Industries Flatematic MW-64HP High Pressure Automatic Tire Inflator

• The Martins Industries MW-64HP Flatematic High Pressure Automatic Tire Inflator is a professional-grade wall-mounted tire inflation system designed specifically for high-pressure tire applications. Capable of automatically inflating or deflating tires up to 232 PSI, this advanced inflator provides hands-free operation with precise digital accuracy, making it ideal for truck, commercial, industrial, and fleet tire service environments. The integrated nitrogen purge cycle function improves nitrogen purity within tires by automatically cycling inflation and deflation processes.
• Features
  • Automatic High-Pressure Tire Inflation – Automatically inflates or deflates tires up to 232 PSI with precise digital pressure control and hands-free operation.
  • Nitrogen Purge Cycle Function – Performs up to 5 automatic nitrogen purge cycles to increase nitrogen purity inside the tire for improved tire performance and longevity.
  • Clip-On Open Chuck Design – Secure open chuck allows technicians to work away from the tire during inflation for increased productivity and convenience.
  • Fast Inflation Performance – Inflates an 11R22.5 truck tire from 0 to 100 PSI in approximately 2 minutes and 20 seconds.
  • Digital LCD Display with Multiple Units – Easy-to-read backlit LCD screen supports PSI, bar, kPa, and kg/cm² measurement units.
  • High Accuracy & Auto Calibration – Features ±0.29 PSI reading accuracy with automatic calibration at every startup.
  • Nitrogen Compatible – Designed for use with compressed air or nitrogen tire inflation systems.
  • Durable Industrial Construction – Aluminum housing with IP66 protection rating for demanding shop and commercial environments.
• Included
  • 25 Foot / 7.6 Meter Air Hose with 1/4" NPT Open Chuck
  • Quick Connect Outlet
  • Air Hose Support Hook
  • M6x38 Mounting Screws (5)
  • User Manual
• Specifications
  • Part Number: MW-64HP
  • Manufacturer: Martins Industries
  • Product Type: Automatic High-Pressure Tire Inflator
  • Mounting Type: Fixed, Wall-Mounted
  • Compatible Gas: Air and Nitrogen
  • Maximum Outlet Pressure: 232 PSI
  • Maximum Inlet Pressure: 261 PSI
  • Reading Accuracy: ±0.29 PSI
  • Maximum Airflow: 2500 L/min (92 CFM)
  • Hose Quantity: 1
  • Hose Length: 300 Inches (25 Feet)
  • Chuck Type: Open
  • Display Type: LCD with Backlight
  • Measurement Units: PSI, Bar, kPa, kg/cm²
  • Autocalibration: Yes
  • Calibration Certified: Yes
  • Degree of Protection: IP66
  • Supply Voltage: 110 Volt
  • Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
  • Material: Aluminum
  • Color: Black and Yellow
  • Certifications: CE
  • Product Dimensions: 9" x 10-1/2" x 3-1/2"
  • Net Weight: 14 lbs.
  • Gross Weight: 14 lbs.
  • Warranty: 1 Year
• Applications
  • Commercial truck tire service
  • Fleet maintenance facilities
  • Bus and heavy-duty tire inflation
  • Industrial tire service operations
  • Nitrogen tire inflation systems
  • Professional automotive tire shops
• The Martins Industries MW-64HP is also commonly referred to as a high-pressure automatic tire inflator, nitrogen tire inflator, wall-mounted tire inflation station, digital truck tire inflator, commercial tire inflation system, and hands-free tire inflation machine.

Q: What is the maximum tire pressure supported by the MW-64HP?
A: The inflator supports automatic inflation up to 232 PSI.

Q: Can this inflator be used with nitrogen systems?
A: Yes. The MW-64HP is fully nitrogen compatible and includes an automatic nitrogen purge cycle function.

Q: Does the unit automatically stop at the selected pressure?
A: Yes. The system automatically inflates or deflates to the preset pressure and alerts the user with an audible signal once complete.

Q: Is this inflator suitable for commercial truck tires?
A: Yes. It is specifically designed for high-pressure truck, bus, industrial, and fleet tire applications.
