Martins Industries MIC-6HD 6-Bar Tire Inflation Safety Cage, 47" Max Tire Diameter, 130 PSI

Martins Industries MIC-6HD 6-Bar Tire Inflation Safety Cage, 47" Max Tire Diameter, 130 PSI

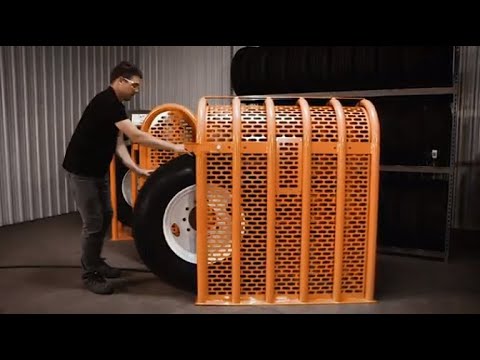

• The Martins Industries MIC-6HD Tire Inflation Safety Cage is a heavy-duty restraint system designed for safer inflation and deflation of compatible truck, bus, excavation, and aircraft tires. Its 6-bar steel construction, air deflection shield, and integrated safety door system help protect technicians from air blasts and tire fragments during inflation procedures. The cage accommodates one tire up to 47" in diameter and 20-1/2" wide and is certified for inflation pressures up to 130 PSI.
• Features:
  • Heavy-duty 6-bar steel construction for commercial tire service applications.
  • Designed for compatible truck, bus, excavation, and aircraft tires.
  • Laser-cut air deflection shield helps redirect blast pressure during a tire failure.
  • Integrated safety door system automatically activates or deactivates airflow based on door position.
  • Accommodates tires up to 47" outside diameter and 20-1/2" wide.
  • Certified for tire inflation pressures up to 130 PSI and designed to meet OSHA Standard 29 CFR 1910.177 requirements.
• Includes:
  • (1) 52" Air Hose with Closed Chuck
  • (1) 1/4" NPT Quick-Connect Air Inlet
  • Accessory Mounting Plates
  • Safety Information and Procedures Sticker
  • User Manual
• Compatible Applications:
  • Truck Tire Inflation
  • Bus Tire Inflation
  • Excavation Tire Inflation
  • Aircraft Tire Inflation
  • Commercial Tire Service Facilities
  • Heavy-Duty Tire Maintenance
• Specifications:
  • Manufacturer: Martins Industries
  • Part Number: MIC-6HD
  • MPN: MIC-6HD
  • Product Type: Tire Inflation Safety Cage
  • Cage Style: 6-Bar
  • Tire Capacity: 1 Tire
  • Maximum Tire Diameter: 47"
  • Maximum Tire Width: 20-1/2"
  • Certified Inflation Pressure: Up to 130 PSI
  • Tire Compatibility: Truck, Bus, Excavation, and Aircraft Tires
  • Material: Steel
  • Finish: Powder-Coated UV-Resistant Paint
  • Color: Orange
  • Product Dimensions: 53" L x 27" W x 57" H
  • Net Weight: 291 lbs.
  • Air Compressor Required: Yes
  • Safety Standard: OSHA 29 CFR 1910.177
  • Certification: CE
  • Warranty: 1 Year
  • Floor Mounting: Four Anchor Holes
• This item is also often referred to as a tire inflation cage, truck tire safety cage, tire restraint cage, heavy-duty tire inflation cage, OSHA tire cage, and commercial tire inflation enclosure.

Martins Industries manufactures tire service equipment, vehicle lifting products, wheel handling systems, safety cages, and related shop equipment for commercial tire, automotive, fleet, and heavy-duty service facilities.

Q: What size tires can the Martins Industries MIC-6HD accommodate?
A: It accommodates one compatible tire up to 47" in outside diameter and 20-1/2" wide.

Q: What is the maximum certified inflation pressure?
A: The MIC-6HD is certified for tire inflation pressures up to 130 PSI.

Q: What types of tires is the MIC-6HD designed for?
A: It is designed for compatible truck, bus, excavation, and aircraft tires.

Q: How does the integrated safety door system work?
A: The system automatically activates or deactivates inflation and deflation airflow according to whether the cage door is open or closed.
