Motor Guard JO1000 Magna-Spot Entry Stud Welder Kit, 120 Volt AC, 15 Ampere

Motor Guard JO1000 Magna-Spot Entry Stud Welder Kit, 120V, 15A

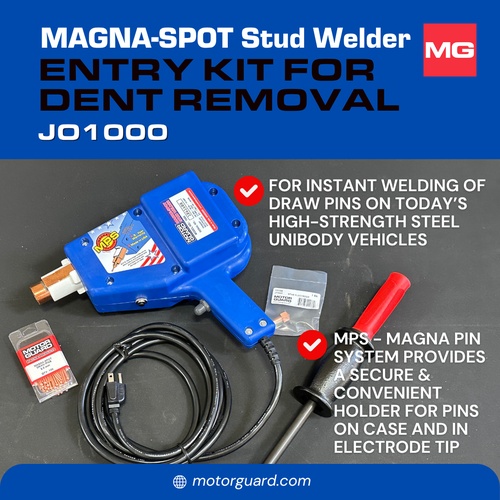

• The Motor Guard JO1000 Magna-Spot Entry Stud Welder Kit is a no-holes dent repair system incorporating exclusive Low-Heat technology designed for high-strength steel unibody vehicles, virtually eliminating burn-through. The kit includes a 1500 Series stud welder, an entry weight slide hammer, an electrode for pins, and 100 2.0mm pins in a storage carton.
• Features:
  • Exclusive Low-Heat technology designed for today's high-strength steel unibody vehicles.
  • Virtually eliminates burn-through, a common problem with other models.
  • Magna Pin System (MPS) provides a convenient, secure holder for pins both on the case and in the electrode tip.
  • Slide hammer features heavy-duty construction with a quick release chuck to grip pins firmly, a cast iron slide weight, and a comfortable vinyl grip.
  • Lightweight, ergonomic design with heavy-duty construction and low-heat transfer.
  • 9' heavy gauge, oil-resistant power cord.
  • 5-year limited warranty.
  • Made in the USA.

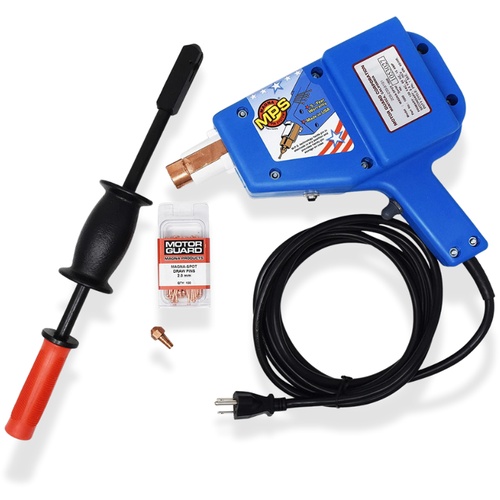

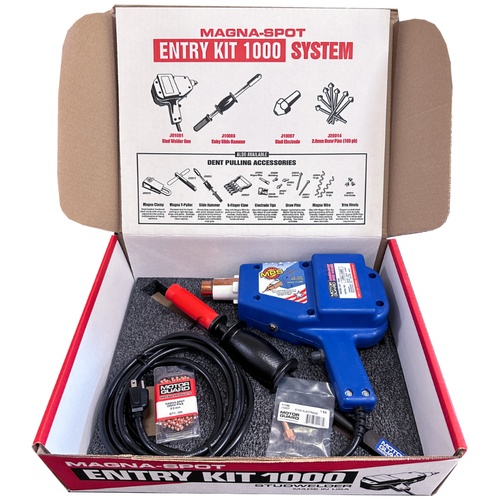

• Includes:
  • 1500 Series Stud Welder
  • Entry Weight Slide Hammer
  • Electrode for Pins
  • 100 - 2.0mm Pins
  • Storage Carton
• Application Notes:
  • WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov.
• Compatible Applications:
  • Draw Pin Welding
  • Molding Rivet Welding
  • Shrinking Stressed Material
• Specifications:
  • Manufacturer: Motor Guard
  • Part Number: JO1000
  • SKU: 00509
  • Product Line: Magna-Spot
  • Product Type: Entry Stud Welder Kit
  • Voltage: 120V AC
  • Phase: 1
  • Frequency: 50/60 Hz
  • Amperage: 15A
  • Cord Length: 9'
  • Weight: 16.126 lbs.

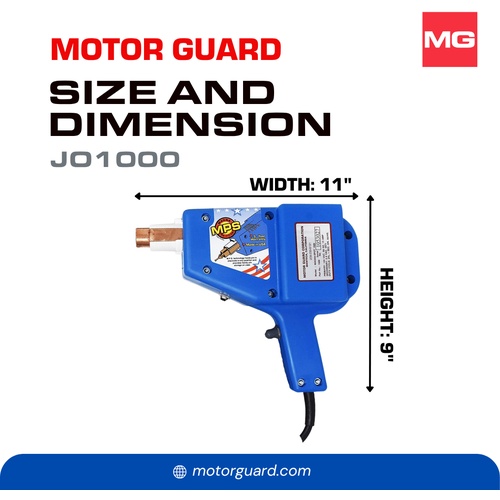

  • Dimensions: 17.75" x 13.5" x 5"
  • Country of Origin: USA
  • Warranty: 5 Years, Limited
• This item is also often referred to as a stud welder kit, Magna-Spot dent repair kit, no-holes dent removal tool, slide hammer stud gun kit, and Motor Guard JO1000.

Motor Guard Corporation manufactures air preparation products, sanding blocks, stud welders, and collision repair tools for the auto body industry since 1966.

Q: What is included in the Motor Guard JO1000 kit?
A: The kit includes a 1500 Series stud welder, an entry weight slide hammer, an electrode for pins, and 100 2.0mm pins.

Q: What voltage and amperage does this welder require?
A: This welder operates on 120V AC, 1 phase, 50/60 Hz, at 15 amps.

Q: How does this welder reduce burn-through?
A: It uses exclusive Low-Heat technology designed for high-strength steel unibody vehicles.

Q: What warranty covers this kit?
A: This kit is backed by a 5-year limited warranty.
