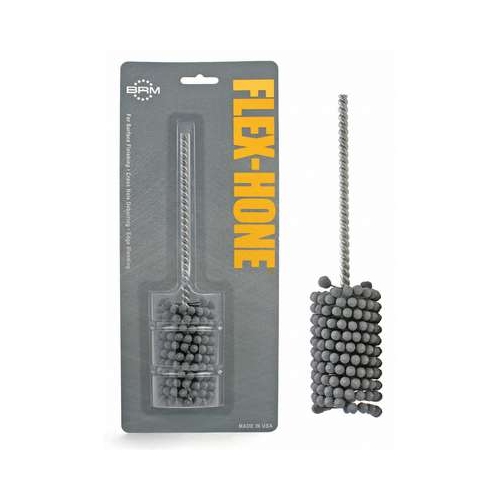

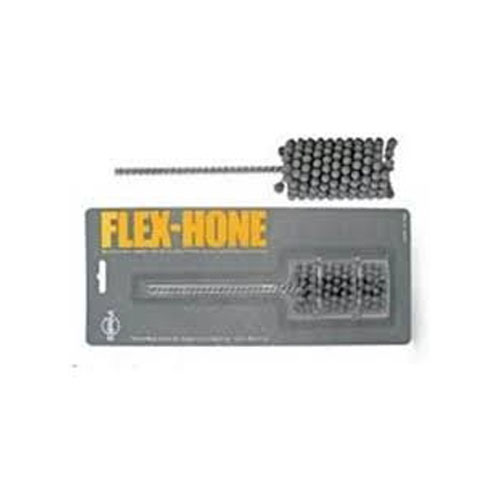

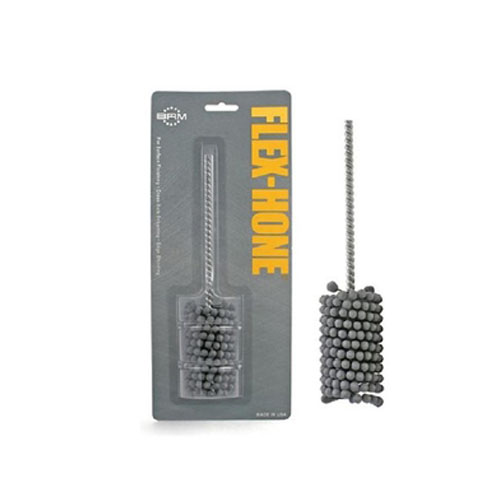

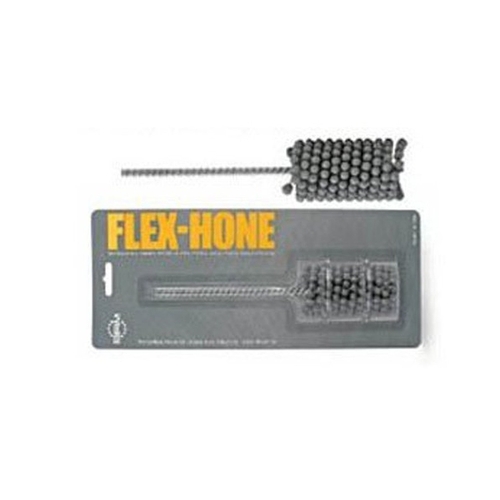

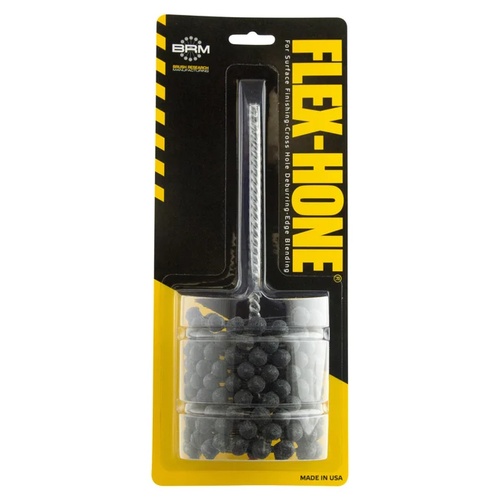

Brush Research BC23418 Flex-Hone BC Flexible Cylinder Hone, for 2.626" - 2.75" Bores, 180 Grit, Silicon Carbide

Brush Research BC23418 Flex-Hone BC Flexible Cylinder Hone, for 2.626" - 2.75" Bores, 180 Grit, Silicon Carbide

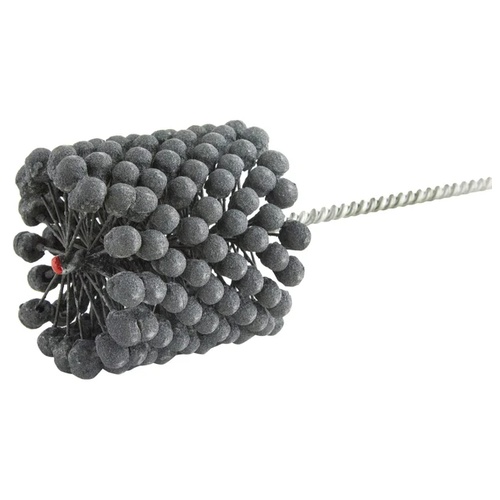

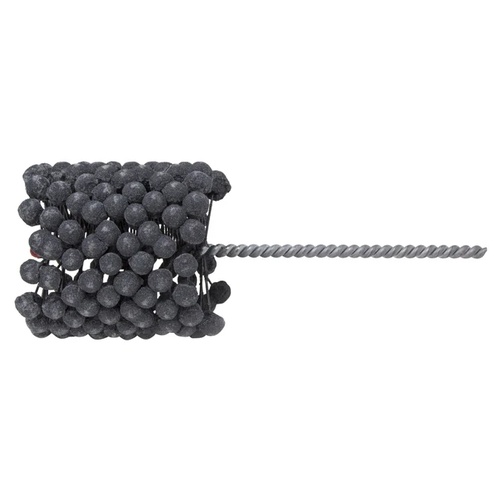

• Brush Research BC23418 is a Flex-Hone BC flexible cylinder hone designed for surface finishing and deburring in bores from 2.626 to 2.75 inches. It uses 180 grit silicon carbide abrasive globules, with a 3 inch abrasive length and 8 inches overall length for consistent bore contact in a rotating spindle.
• Features:

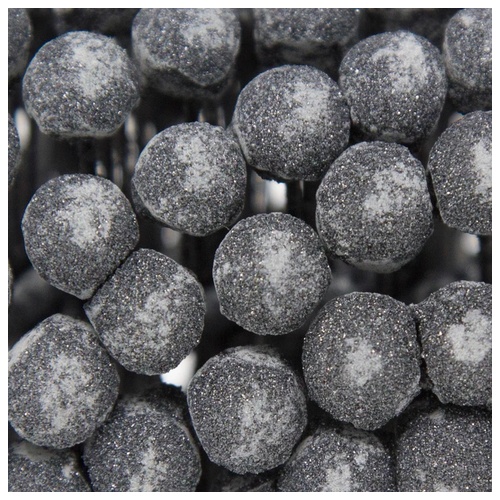

  • 180 grit silicon carbide abrasive globules support simultaneous surface finishing and deburring in a single setup.

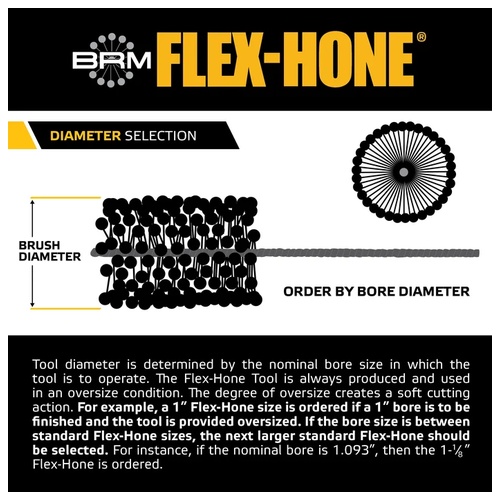

  • Designed for bore sizes from 2.626 to 2.75 inches to match 2.75 inches (69.9 mm) nominal cylinder and bore applications.

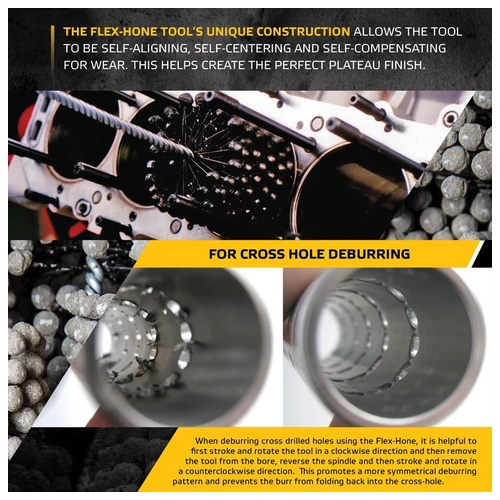

  • Self-centering, self-aligning, and self-compensating for wear design helps maintain uniform bore contact.
  • 3 inch abrasive length with 8 inches overall length helps reach through typical cylinder bores while maintaining stable tool engagement.
  • Recommended 600-900 RPM operation with lubrication required supports controlled cutting on mild steel, stainless steel, cast iron, and other softer ferrous materials.
• Specifications:
  • Manufacturer: Brush Research
  • Part Number: BSBC23418
  • Alternate Part Numbers: BC23418, BC2-3/4
  • Series: Flex-Hone BC Standard Duty
  • Bore Diameter: 2.75 inches (69.9 mm)
  • Minimum Bore Diameter: 2.626 inches
  • Maximum Bore Diameter: 2.75 inches
  • Overall Length: 8 inches
  • Abrasive Length: 3 inches
  • Abrasive Type: Silicon carbide
  • Grit: 180
  • Stem Diameter: 0.245 inches
  • Tip Marking: Red
  • Stem Marking: Silver or no color
  • Recommended RPM: 600-900
  • Feed Rate: 10-2500 ipm
  • Lubrication: Required
  • Power Requirements: 1/6 hp to 1/4 hp

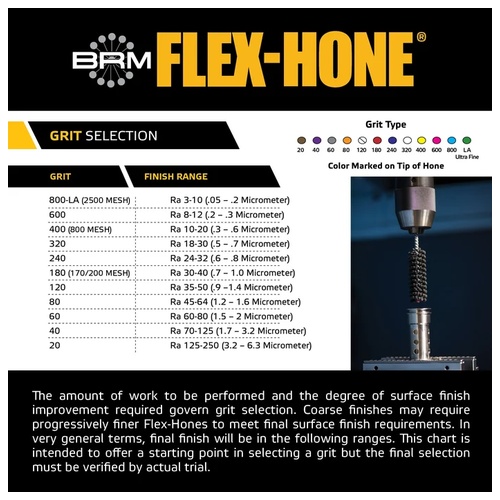

  • Ra Range: 30-40 microinch (0.7-1 micrometer)

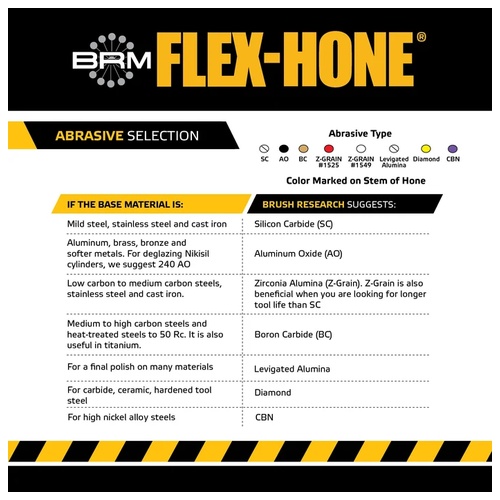

  • Applicable Materials: Mild steel, stainless steel, cast iron, and other softer ferrous materials
  • Quantity: 1
  • System Compatibility or Application: Designed for internal diameter surface finishing and deburring in bores sized 2.626 to 2.75 inches.
• The Flex-Hone BC flexible cylinder hone can also be referred to as a flexible cylinder hone, silicon carbide ball hone, bore finishing hone, internal diameter deburring tool, and 180 grit cylinder hone.

Brush Research is a privately held manufacturer based in Los Angeles, California, focused on solving surface finishing and deburring challenges through brushing technology since 1958, serving industrial and automotive applications with standard and custom solutions.

Q: What bore sizes is BSBC23418 designed to fit?
A: It is designed for bore sizes between 2.626 and 2.75 inches, with a nominal bore diameter of 2.75 inches (69.9 mm).

Q: What abrasive and grit does this Flex-Hone BC use?
A: It uses silicon carbide abrasive globules in 180 grit.

Q: What speed range is recommended for operation?
A: The recommended operating speed is 600-900 RPM.

Q: Is lubrication required when using this hone?
A: Yes. Lubrication is required for proper operation and controlled cutting action.
