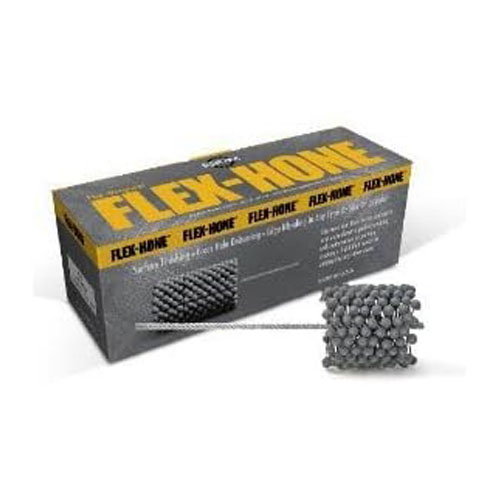

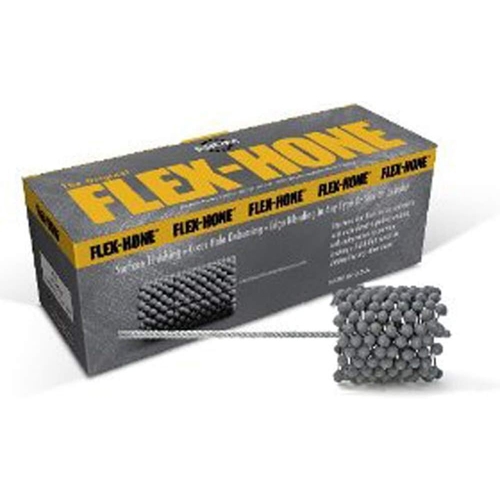

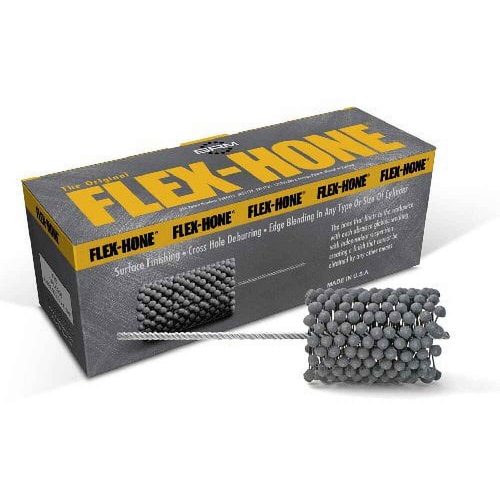

Brush Research Flex-Hone GBD40032 GBD Heavy Duty Flexible Cylinder Hone, 4" Bore, 320 Grit, Silicon Carbide, for Cylinder Bore Finishing and Deburring

Brush Research Flex-Hone GBD40032 GBD Heavy Duty Flexible Cylinder Hone, 4" Bore, 320 Grit, Silicon Carbide, for Cylinder Bore Finishing and Deburring

• Brush Research GBD40032 is a Flex-Hone GBD heavy duty flexible cylinder hone designed for surface finishing and deburring cylinder bores from 3.751 to 4.000 inches. Its 320 grit silicon carbide abrasive and 6 inch abrasive part help produce a controlled finish for automotive and general industrial cylinder applications.
• Features:
  • 4 inch bore diameter with a 3.751 to 4.000 inches bore range helps match nominal 4 inch cylinder bores for consistent tool fit.
  • 320 grit silicon carbide abrasive supports extra fine surface finishing and deburring on mild steel, stainless steel, cast iron, and other softer ferrous materials.
  • 6 inch abrasive part and 13.5 inches overall length help maintain stable engagement through longer bores while operating in a rotating spindle.
  • Self-centering, self-aligning, and self-compensating for wear construction helps maintain uniform bore contact for repeatable results.
  • Recommended 350 to 600 RPM operation with lubrication required supports controlled cutting action and helps reduce abrasive loading.
• Specifications:
  • Manufacturer: Brush Research
  • Part Number: GBD40032
  • Alternate Part Numbers: GBD40032
  • Product Type: Flex-Hone GBD heavy duty flexible cylinder hone
  • Series: Flex-Hone GBD Heavy Duty (3 to 8 inches)
  • Bore Diameter: 4 inches (102 mm)
  • Minimum Bore Diameter: 3.751 inches
  • Maximum Bore Diameter: 4.000 inches
  • Abrasive Type: Silicon carbide
  • Grit: 320
  • Abrasive Part Length: 6 inches
  • Overall Length: 13.5 inches
  • Stem Diameter: 0.31 inches
  • Attachment Type: Twisted wire stem
  • Tip Marking: White
  • Stem Marking: Silver or no color
  • Recommended RPM: 350 to 600
  • Feed Rate: 10 to 2500 ipm
  • Lubrication: Required
  • Power Requirements: 1/3 hp to 1/2 hp
  • Ra Range: 18 to 30 microinch (0.5 to 0.7 micrometer)
  • Applicable Materials: Mild steel, stainless steel, cast iron, and other softer ferrous materials
  • Quantity: 1
  • System Compatibility or Application: Designed for surface finishing and deburring cylinder bores in automotive and general industrial equipment, with nominal 4 inch bore sizing.
• The Flex-Hone GBD flexible cylinder hone can also be referred to as flexible cylinder hone, silicon carbide ball hone, cylinder bore finishing hone, GBD heavy duty flex hone, and 4 inch bore honing brush.

Brush Research is a privately held manufacturer in Los Angeles, California, producing Flex-Hone tools and industrial brushing solutions for surface finishing and deburring across automotive and general industrial applications since 1958.

Q: What bore size range does GBD40032 fit?
A: It is designed for bore sizes from 3.751 to 4.000 inches, with a nominal bore diameter of 4 inches (102 mm).

Q: What abrasive and grit does this Flex-Hone use?
A: It uses silicon carbide abrasive globules in 320 grit.

Q: What operating speed is recommended?
A: The recommended operating speed range is 350 to 600 RPM.

Q: Is lubrication required during use?
A: Yes. Lubrication is required for proper operation and controlled cutting action.
