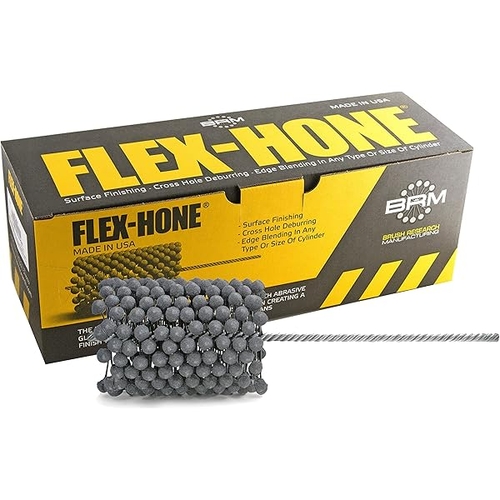

Brush Research Flex-Hone GBD51224 GBD Heavy Duty Flexible Cylinder Hone, 5-1/2" Bore, 240 Grit, Silicon Carbide

Brush Research Flex-Hone GBD51224 GBD Heavy Duty Flexible Cylinder Hone, 5-1/2" Bore, 240 Grit, Silicon Carbide

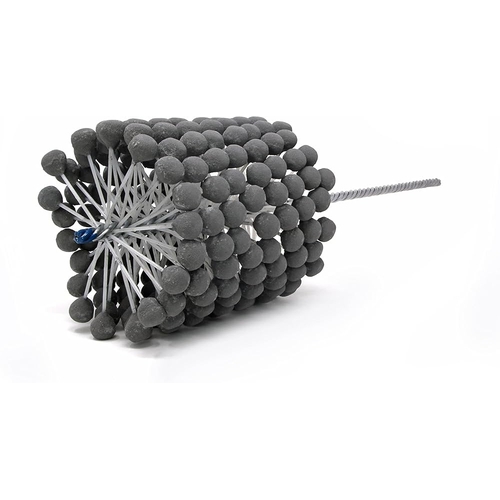

• Brush Research GBD51224 is a Flex-Hone GBD heavy duty flexible cylinder hone for surface finishing, deburring, and edge breaking in 5.001 to 5-1/2 inches bores. It uses 240 grit silicon carbide abrasive globules and a 6 inches abrasive part to help produce an Ra finish of 24 to 32 microinch when used with lubrication.
• Features:
  • Bore range 5.001 to 5-1/2 inches supports internal diameter finishing and deburring on nominal 5-1/2 inches bores.
  • 240 grit silicon carbide abrasive helps achieve a fine surface finish in the 24 to 32 microinch Ra range on mild steel, stainless steel, cast iron, and other softer ferrous materials.
  • 6 inches abrasive part and 17-1/2 inches overall length help maintain stable engagement through deeper bores during finishing passes.
  • Self centering, self aligning, and self compensating for wear construction helps maintain consistent contact for repeatable results.
  • Recommended operating range of 350 to 600 RPM with lubrication required supports controlled cutting action and helps reduce abrasive loading.
• Specifications:
  • Manufacturer: Brush Research
  • Part Number: GBD51224
  • Manufacturer Part Number: GBD51224
  • Product Type: Flex-Hone GBD heavy duty flexible cylinder hone
  • Bore Diameter: 5-1/2 inches (140 mm)
  • Minimum Bore Diameter: 5.001 inches
  • Maximum Bore Diameter: 5-1/2 inches
  • Overall Length: 17-1/2 inches
  • Abrasive Part Length: 6 inches
  • Abrasive Type: Silicon carbide
  • Grit: 240
  • Stem Diameter: 0.35 inches
  • Tip Marking: Navy Blue
  • Stem Marking: Silver or no color
  • Recommended RPM: 350 to 600
  • Feed Rate: 10 to 2500 ipm
  • Lubrication: Required
  • Power Requirements: 1/3 hp to 1/2 hp
  • Ra Range: 24 to 32 microinch (0.6 to 0.8 micrometer)
  • Applicable Materials: Mild steel, stainless steel, cast iron, and other softer ferrous materials
  • Series: Flex-Hone GBD Heavy Duty (3 inches to 8 inches)
  • Standard Pack Quantity: 1
  • System Compatibility or Application: Designed for internal bore surface finishing, deburring, and edge breaking in bores sized 5.001 to 5-1/2 inches.
• The Flex-Hone GBD heavy duty flexible cylinder hone can also be referred to as 5-1/2 inches cylinder hone, 240 grit silicon carbide ball hone, heavy duty bore finishing hone, cylinder bore deburring tool, and GBD flex hone brush.

Brush Research is a privately held manufacturer located in Los Angeles, California, producing Flex-Hone tools and industrial brushing solutions for surface finishing and deburring applications, with company operations dating back to 1958.

Q: What bore size range does GBD51224 fit?
A: It is designed for bores from 5.001 inches to 5-1/2 inches, with a nominal bore diameter of 5-1/2 inches (140 mm).

Q: What abrasive and grit does this Flex-Hone use?
A: It uses silicon carbide abrasive globules in 240 grit.

Q: What operating speed is recommended?
A: The recommended operating range is 350 to 600 RPM.

Q: Is lubrication required during use?
A: Yes. Lubrication is required during operation.
