Brush Research BC11418 Flex-Hone, 1-1/4" Bore, 180 Grit, Silicon Carbide, 8" OAL

Brush Research BC11418 Flex-Hone, 1-1/4" Bore, 180 Grit, Silicon Carbide, 8" OAL

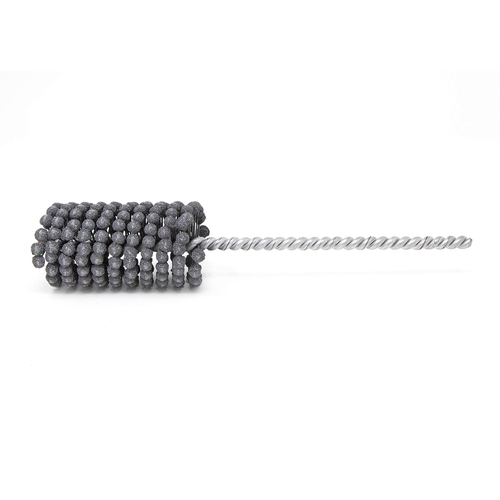

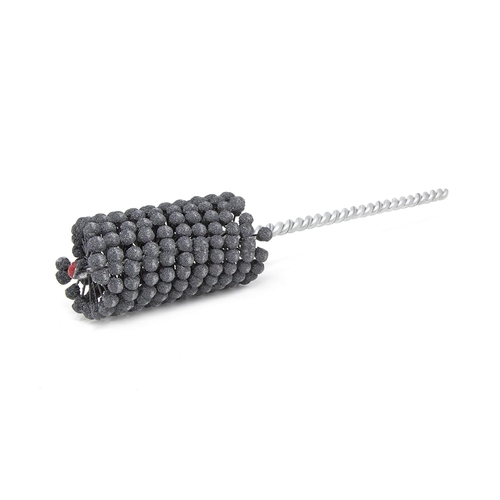

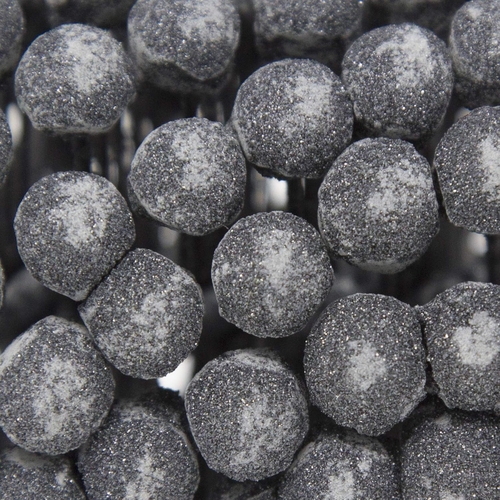

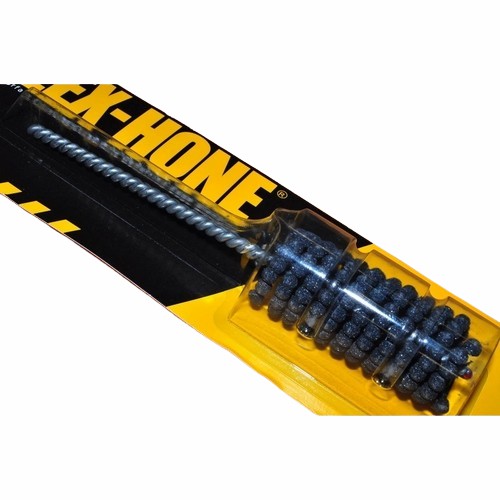

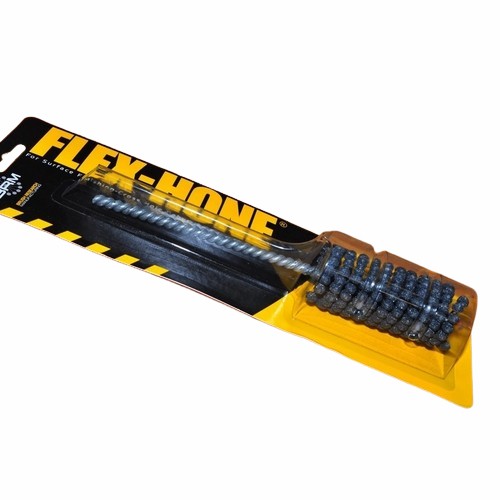

• Brush Research BC11418 Flex-Hone is a flexible honing tool designed for surface finishing and deburring in compatible bores from 1.126" to 1.250". It uses 180 grit silicon carbide abrasive globules and is intended for mild steel, stainless steel, cast iron, and other softer ferrous materials.
• Features:
  • Designed for surface finishing and deburring in compatible bore applications.
  • 180 grit silicon carbide abrasive supports fine finishing work on softer ferrous materials.
  • Fits bore sizes between 1.126" and 1.250".
  • 3" abrasive length helps provide effective contact through the bore.
  • Self-centering, self-aligning, and self-compensating for wear.
  • Can be used in virtually any rotating spindle.

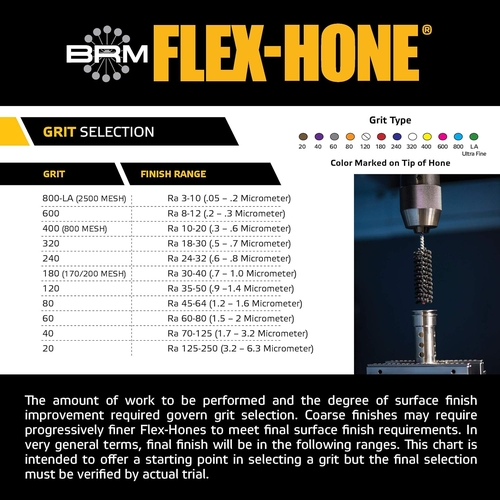

  • Typically achieves an Ra finish range of 30 to 40 micro" or 0.7 to 1 micrometer.
• Specifications:
  • Manufacturer: Brush Research
  • Part Number: BC11418
  • Product Name: Flex-Hone

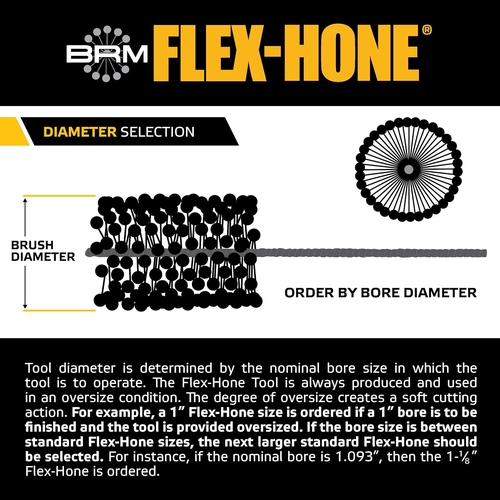

  • Maximum Bore Diameter: 1-1/4"
  • Bore Range: 1.126" to 1.250"
  • Grit: 180
  • Abrasive Material: Silicon Carbide
  • Abrasive Length: 3"

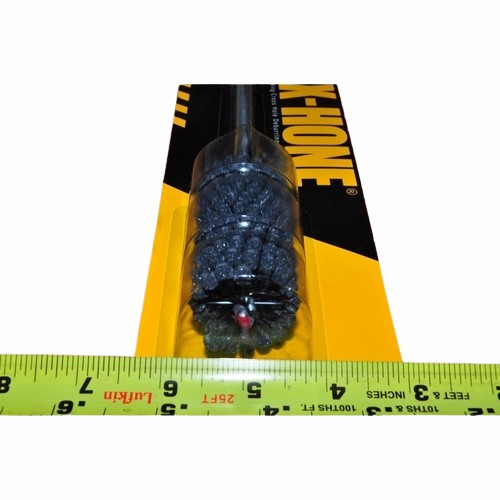

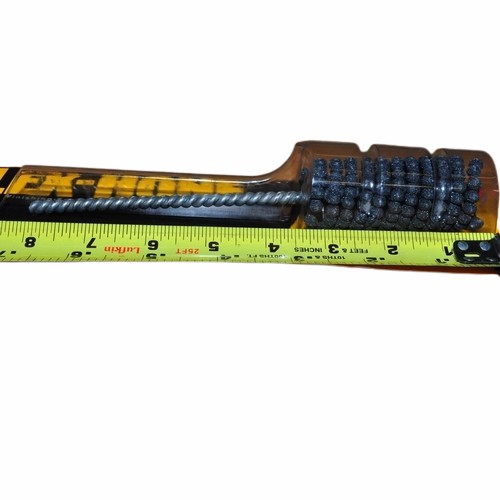

  • Overall Length: 8"
  • Maximum RPM: 1000
  • UPC: 843469116673
  • System Compatibility or Application: Designed for surface finishing and deburring in compatible cylinder and bore applications on mild steel, stainless steel, cast iron, and other softer ferrous materials.
• This product can also be referred to as a cylinder hone, flexible bore hone, silicon carbide Flex-Hone, and 180 grit bore finishing hone.

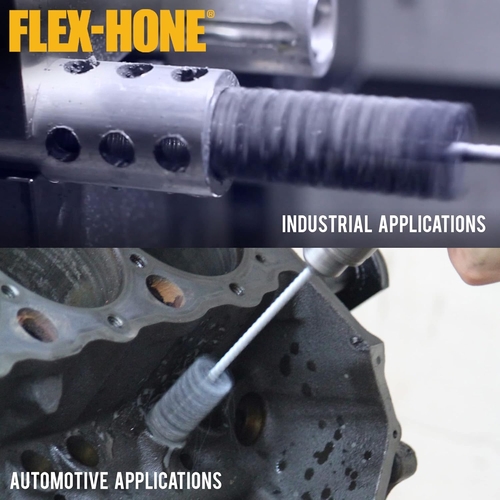

Brush Research manufactures flexible honing and surface finishing tools for automotive, industrial, and machining applications. The Flex-Hone line is designed to improve surface finish, support deburring, and help produce a controlled crosshatch pattern in compatible bore applications.

Q: What bore size is Brush Research BC11418 designed for?

A: It is designed for compatible bores from 1.126" to 1.250", with a maximum bore diameter of 1-1/4".

Q: What abrasive does Brush Research BC11418 use?

A: It uses 180 grit silicon carbide abrasive.

Q: What materials is Brush Research BC11418 suited for?

A: It is intended for mild steel, stainless steel, cast iron, and other softer ferrous materials.
