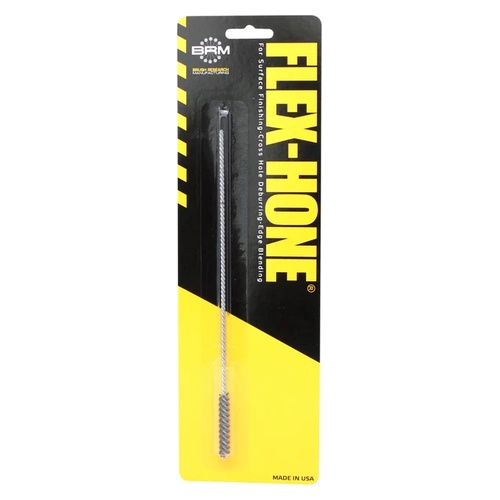

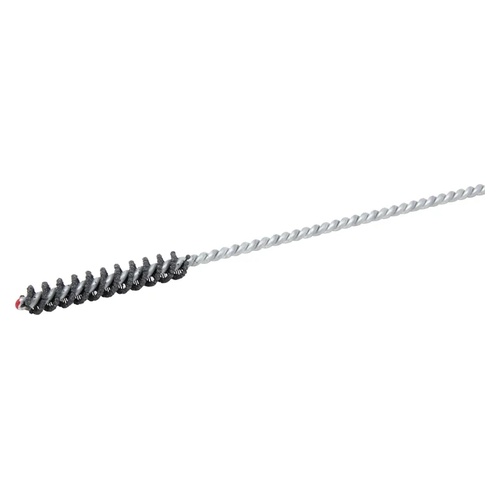

FLEX HONE BC6M18 Cylinder Hone, 6mm Bore, 180 Grit, Silicon Carbide

FLEX HONE BC6M18 Cylinder Hone, 6mm Bore, 180 Grit, Silicon Carbide

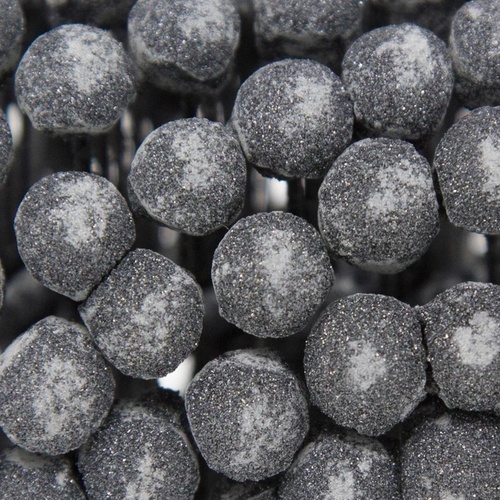

• The FLEX HONE BC6M18 is a standard duty cylinder hone designed for bore sizes between 0.218" and 0.236" (6mm), used for finishing, deburring, and edge breaking. It uses 180 grit silicon carbide abrasive globules on flexible nylon filaments and measures 6mm in diameter by 8" in overall length.
• Features:
  • 180 grit silicon carbide abrasive globules for controlled material removal.
  • Self-centering, self-aligning, self-compensating-for-wear design produces a non-directional, cross-hatched finish.
  • Flexible nylon filaments allow the abrasive globules to float, helping maintain bore alignment.
  • 1.5" abrasive section with a 0.112" stem, for use in virtually any rotating spindle.
  • Typically achieves a surface finish of 30-40 microinch (0.7-1 micrometer) Ra.
  • Recommended operating speed of 1000-1200 RPM, with a feed rate of 10-2,500 IPM.
  • Manufactured in the USA by Brush Research Manufacturing.
• Compatible Applications:
  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Other Softer Ferrous Materials
• Specifications:
  • Manufacturer: Brush Research Manufacturing Co., Inc.
  • Part Number: BC6M18
  • Product Line: FLEX HONE BC Standard Duty (4mm-3")
  • Product Type: Cylinder Hone

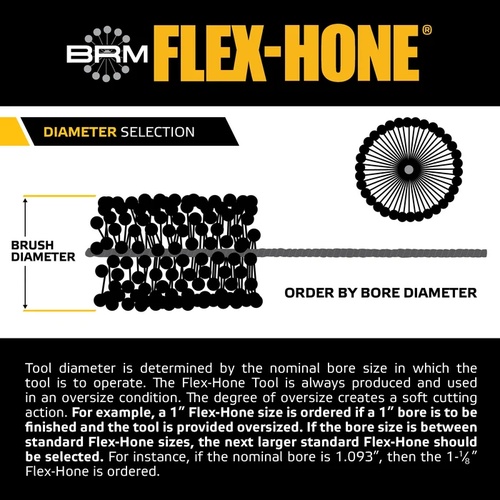

  • Bore Diameter: 0.236" (6mm)
  • Minimum Bore Diameter: 0.218"
  • Maximum Bore Diameter: 0.236"

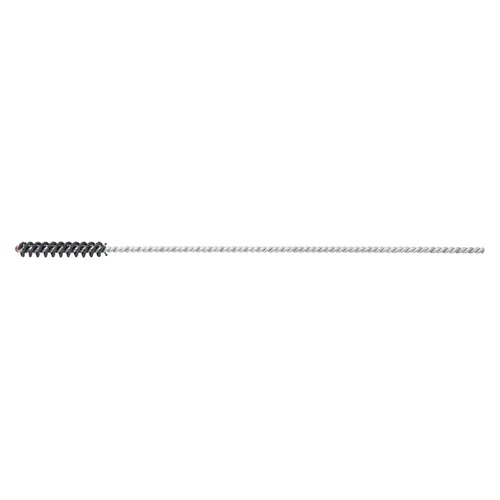

  • Overall Length: 8"
  • Abrasive Section Length: 1.5"
  • Stem Diameter: 0.112"
  • Grit Size: 180

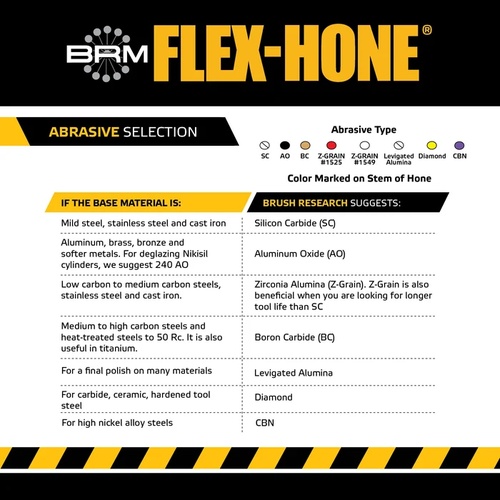

  • Abrasive Type: Silicon Carbide
  • Tip Marking: Red
  • Stem Marking: Silver/No Color
  • Recommended RPM: 1000-1200 RPM
  • Feed Rate: 10-2,500 IPM
  • Power Requirements: 1/6 HP to 1/4 HP

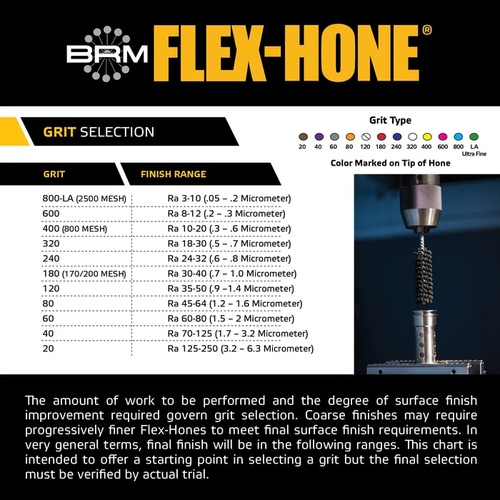

  • Surface Finish (Ra): 30-40 Microinch (0.7-1 Micrometer)
  • Lubrication: Required
  • Country of Origin: USA
  • UPC: 843469130242
• This item is also often referred to as a ball hone, flex hone, cylinder deglazer, and engine cylinder hone.

Brush Research Manufacturing, originator of the FLEX HONE, manufactures cylinder hones, deburring tools, and surface finishing brushes for automotive, hydraulic, aerospace, marine, and general industrial applications.

Q: What bore diameter is the BC6M18 designed for?
A: This hone is designed for bore sizes between 0.218" and 0.236" (6mm).

Q: What finish does the 180 grit provide?
A: 180 grit typically produces a 30-40 microinch (0.7-1 micrometer) Ra finish.

Q: What is the recommended operating speed for this hone?
A: The manufacturer recommends 1000-1200 RPM with a feed rate of 10-2,500 IPM.

Q: What materials is this hone suited for?
A: This hone is suited for mild steel, stainless steel, cast iron, and other softer ferrous materials.
