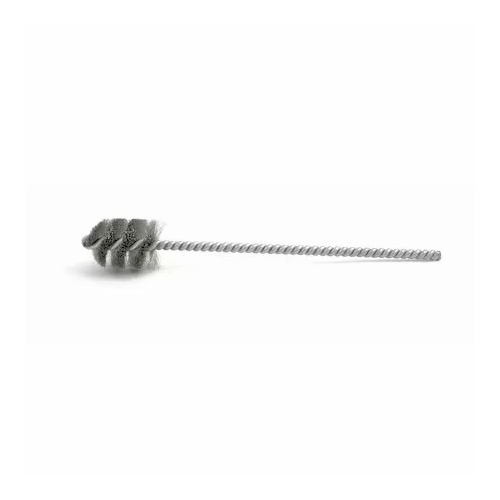

Brush Research NH3N Bristle Injector Cleaning Brush, 1.175" Diameter, 1-5/8" Brush Length, 0.005" Stainless Steel Wire, 8-1/2" Overall Length

Brush Research NH3N Bristle Injector Cleaning Brush, 1.175" Diameter, 1-5/8" Brush Length, 0.005" Stainless Steel Wire, 8-1/2" Overall Length

• Brush Research NH3N is an NH-3 style bristle injector cleaning brush designed to clean injector seats and help ensure proper seating of newly installed copper components. It uses 302 stainless steel bristles with a 1.175" major diameter and is cut for power use with an 8-1/2" overall length.
• Features:
  • Major diameter 1.175" supports cleaning inside injector seat areas sized for this brush diameter.
  • 302 stainless steel bristles with 0.005" filament diameter provide a defined wire specification for seat cleaning.
  • Brush part length 1-5/8" provides bristle coverage through the working section during cleaning.
  • Cut for power design supports use with a drill or power tool where powered cleaning is required.
  • System Compatibility or Application: Designed for cleaning copper injector seats and related injector cup areas to support proper seating during service work.
• Specifications:
  • Manufacturer: Brush Research
  • Part Number: NH3N
  • MPN: NH3N
  • UPC: 843469157645
  • Category: Engine service tools
  • Subcategory: Seat cleaning brushes
  • Product Type or Function: Bristle injector cleaning brush
  • Major Brush Diameter: 1.175"
  • Brush Part Length: 1-5/8"
  • Overall Length: 8-1/2"
  • Filament Material: 302 stainless steel
  • Filament Diameter: 0.005"
  • Shank Style: Twisted wire
  • Cut for Power: Yes
  • System Compatibility or Application: Designed for cleaning copper injector seats and injector cup areas during diesel and engine service work
  • Quantity: 1 brush
• The Bristle Injector Cleaning Brush can also be referred to as an injector seat cleaning brush, a copper injector cup cleaning brush, a diesel injector seat brush, a stainless steel injector cleaning brush, and a twisted wire seat cleaning brush.

Brush Research designs and produces industrial brushes and Flex-Hone tools used for surface finishing, deburring, cleaning, and maintenance. The company supplies brush solutions for automotive, industrial, and engine service applications.

Q: What is the intended use for the Brush Research NH3N?
A: It is designed for cleaning copper injector seats and injector cup areas to support proper seating during service work.

Q: What are the key size specifications for this brush?
A: The major brush diameter is 1.175", the brush part length is 1-5/8", and the overall length is 8-1/2".

Q: What bristle material and wire size are specified?
A: It uses 302 stainless steel bristles with a 0.005" filament diameter.
