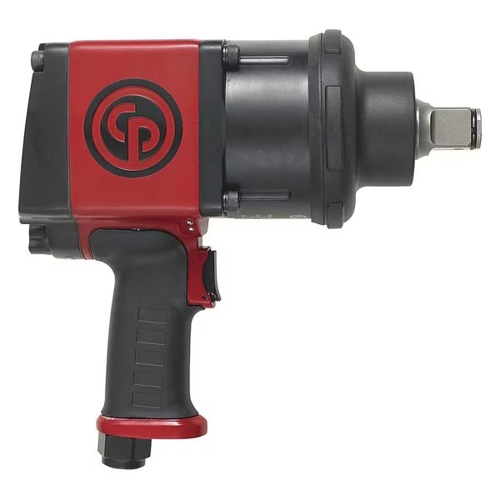

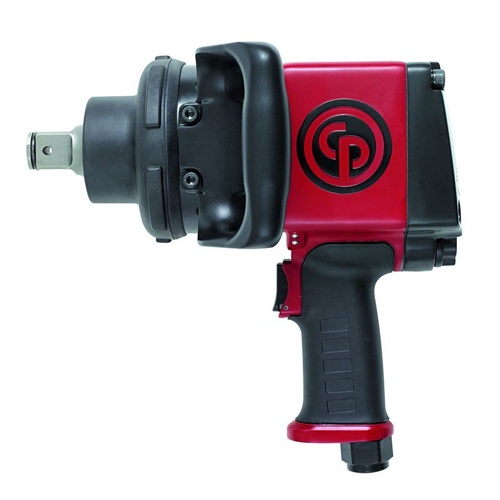

Chicago Pneumatic CP7776 1" Drive Impact Wrench, High Torque Pneumatic Tool

Chicago Pneumatic CP7776 1" Drive Impact Wrench, High Torque Pneumatic Tool

• The Chicago Pneumatic CP7776 Impact Wrench is a powerful 1" drive pneumatic tool engineered for heavy-duty maintenance and industrial applications. Designed for high torque output and durability, it is ideal for demanding bolting and unbolting tasks.
• Features:
  • Delivers up to 1,770 ft-lbs (2400 Nm) of reverse torque for tough fastener removal
  • Pinless closed reinforced rocking dog impact mechanism for durability and consistent performance
  • Robust aluminum housing for long service life in harsh environments
  • Ergonomic pistol grip with TPR handle for improved comfort and control
  • Side handle adjustable in 4 positions for enhanced stability
  • 3-position power regulator for both forward and reverse operation
  • Angled exhaust directs air away from the work area
  • Rubber bumpers help protect tool and surrounding surfaces
• Applications:
  • Heavy-duty maintenance and repair
  • Truck, fleet, and industrial equipment service
  • Construction and mining equipment applications
  • High-torque bolting and unbolting tasks
• Specifications:
  • Manufacturer: Chicago Pneumatic
  • Model: CP7776 (8941077760)
  • Product Type: Air Impact Wrench
  • Drive Size: 1 Inch Square
  • Max Torque (Reverse): 2400 Nm (1770 ft-lbs)
  • Max Working Torque (Forward): 2070 Nm
  • Min Working Torque (Forward): 955 Nm
  • Free Speed: 5000 RPM
  • Impact Mechanism: Pinless Rocking Dog
  • Handle Type: Pistol Grip
  • Body Material: Aluminum
  • Air Inlet Size: 1/2 Inch
  • Air Consumption (Load): 15 L/s
  • Working Pressure: 6.3 bar (91 PSI)
  • Recommended Hose Size: 1/2 Inch
  • Length: 289 mm
  • Weight: 11.2 kg (24.7 lbs)
  • Sound Pressure: 93 dB(A)
  • Sound Power: 104 dB(A)
  • Vibration Level: 8.7 m/s²
• The impact wrench can also be referred to as pneumatic impact gun, 1-inch impact wrench, heavy-duty air wrench, industrial torque tool, and bolting tool.

Q: What type of applications is this impact wrench best suited for?
A: It is ideal for heavy-duty applications such as truck maintenance, industrial equipment repair, and high-torque fastening tasks.

Q: What is the advantage of the pinless rocking dog mechanism?
A: It provides increased durability, smoother operation, and consistent torque output under heavy loads.

Q: Does this tool offer adjustable power settings?
A: Yes, it features 3 forward and 3 reverse power settings for better control.
