CTA 2112 Valve Spring Compressor Kit

CTA 2112 Valve Spring Compressor Kit

• Replaces valve springs and valve stem oil seals without the need to remove the cylinder head
• Applications include, but not limited too: BMW, MINI, VW, Audi, Hyundai, Toyota, Lexus, Ford, Lincoln, Nissan, Renault, Opel, Seat, Clio & more

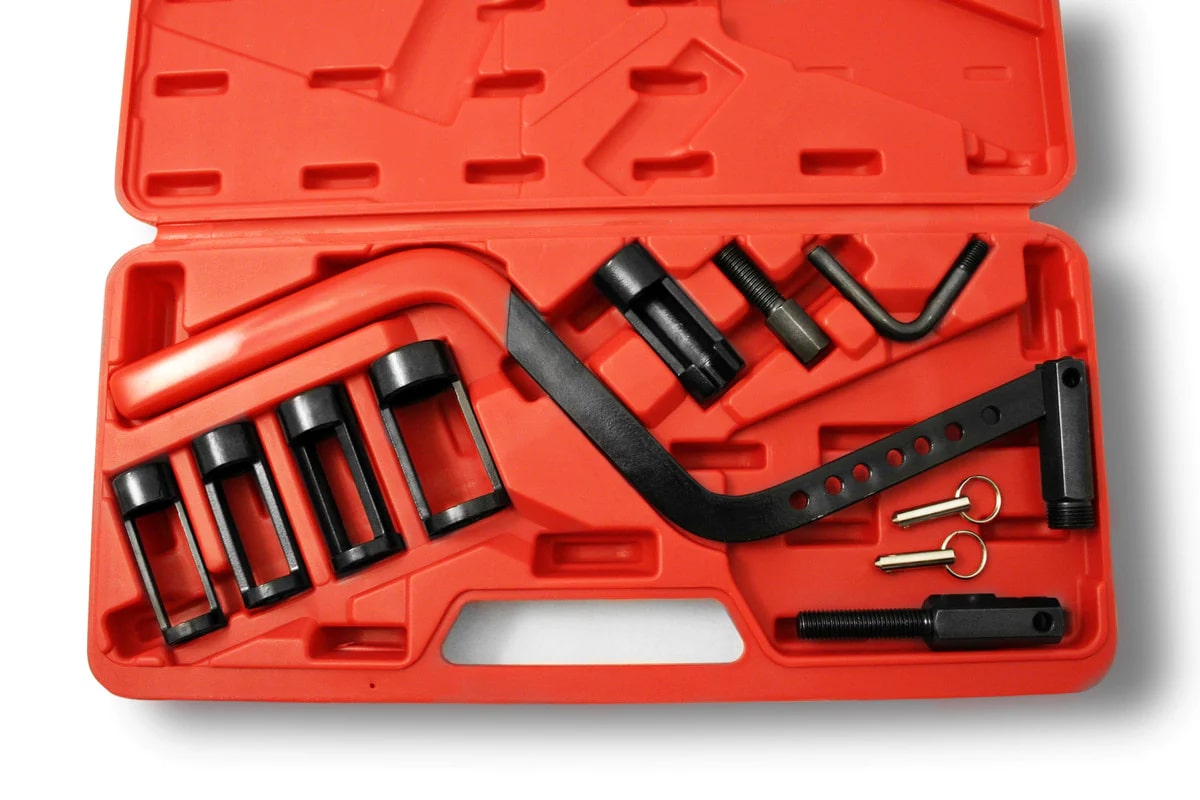

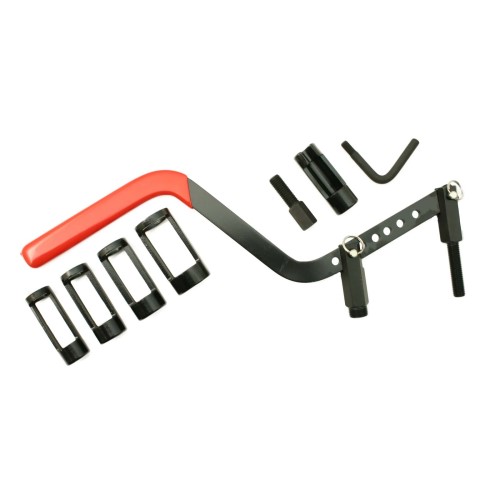

• Components:
  • 1 Pc. -  Lever Bar
  • 4 Pc. - Valve Spring Compressor Adapters
  • 24.75mm (O.D.)
  • 27.50mm (O.D.)
  • 30.25mm (O.D.)
  • 35.50mm (O.D.)
  • 1 Pc. - Slotted/Notched Pulling Device
  • 1 Pc. - Hook Pulling Device
  • 1 Pc. - Connector for Valve Spring Adapters
  • 1 Pc. - Connector for Pulling Device
  • 1 Pc. - Extension for Valve Spring Adapters
• Instructions:
  • Select appropriate size Valve Spring Compressor Adapter and attach to threaded connector at end of Lever Bar.
    • Note: Add threaded extension, if necessary.
  • Select appropriate Pulling Device, depending on engine.
  • Use the Slotted/Notched type and attach to head of threaded bolt, using threaded hole, as available.
  • Use the Hook-Type device and hook onto the cylinder head or opposite camshaft, as available.
    • Note: Adjust Connector to appropriate hole in lever bar, as needed.
