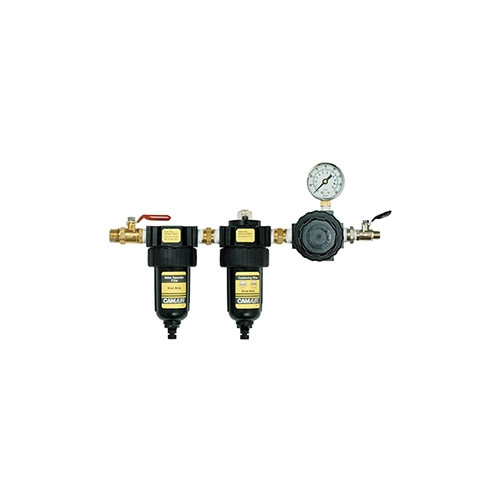

DeVilbiss 130523 CamAir 2-Stage Filter System with Regulator, 65 SCFM

DeVilbiss 130523 CamAir 2-Stage Filter System with Regulator, 65 SCFM

• DeVilbiss 130523 CamAir is an air filtration/regulation system for cramped shop spaces. It removes dirt, water, and oil from the air line to 0.01 microns for superior finishes and has quick-change bowls and an air inlet valve for rapid maintenance without shutting off main shop air.
• Features:
  • Air filtration/regulation system.
  • Compact and effective for cramped shop spaces.
  • Removes dirt, water, and oil from air line to 0.01 microns.
  • Quick-change bowls and air inlet valve accommodate rapid, trouble-free maintenance without shutting off main shop air.
• Includes:
  • 2-stage filter unit
  • Regulator
• Specifications:
  • Manufacturer: DeVilbiss
  • Part Number: 130523
  • UPC: 658701029693
  • Product Type: Air filtration/regulation system
  • Type: 2-stage
  • Air Inlet: 1/2" NPT male thread
  • Air Outlet: 1/2" NPT male thread
  • Filter Air Flow: 65 SCFM at 90 PSIG
  • Regulator Air Flow: 65 SCFM at 100 PSIG
  • Filter Maximum Pressure: 150 PSIG
  • Regulator Maximum Pressure: 250 PSIG
  • Regulator Pressure Range: 2-125 PSIG
  • Filter Maximum Temperature: 150 F
  • Regulator Maximum Temperature: 175 F
  • Smallest Particle Filtered: 0.01 microns
  • Application: Air Control
  • Waterborne Compatible: Yes
  • Selling Unit: Each
• The DeVilbiss 130523 CamAir 2-Stage Filter System with Regulator can also be referred to as air filtration regulator system, 2-stage compressed air filter, paint shop air filter regulator, 0.01 micron air filter system, and DeVilbiss CamAir filter regulator.

DeVilbiss Automotive Refinishing is a Binks product pillar with roots in Dr. Allen DeVilbiss' 1888 atomizer and Thomas DeVilbiss' spray gun development in 1907. The brand serves automotive refinishing and spray finishing markets.

Q: What particle size does the DeVilbiss 130523 filter remove down to?
A: The system removes dirt, water, and oil from air lines down to 0.01 microns.

Q: What are the regulator pressure specifications?
A: The regulator has 65 SCFM air flow at 100 PSIG, 250 PSIG maximum pressure, and a 2-125 PSIG pressure range.

Q: Can this system be combined with another DeVilbiss dryer?
A: Yes. It can be combined with the CT-30 desiccant dryer to create a CT Plus 5-stage air filter system.
