Electronic Specialties 195 Super Relay Buddy Pro Kit, 12-Volt Automotive Relay Tester with Adapter Set

Electronic Specialties 195 Super Relay Buddy Pro Kit, 12-Volt Automotive Relay Tester with Adapter Set

• The Electronic Specialties 195 Super Relay Buddy Pro Kit is a professional diagnostic tester designed for automotive, heavy-duty, marine, and RV 12-volt relays. It applies a true load of over 7 amps to detect weak, failed, or intermittent relays under real operating conditions.
• Features:
  • Applies a full 7+ amp load to accurately test relay performance and identify failures that simple continuity tests miss.
  • Automatic 10-cycle test sequence with LED indicators-green for pass, red for fail, and yellow for voltage drop or marginal relay performance.
  • Compatible with multiple 12-volt relay types using included adapters.
  • Compact, portable design housed in a durable blow-molded case for workshop or mobile technician use.
  • Tests relays for proper operation under simulated real-world electrical load conditions.
• Includes:
  • Super Relay Buddy main tester unit (Model 195)

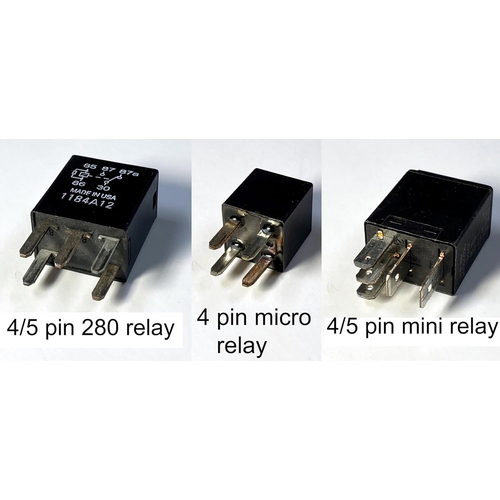

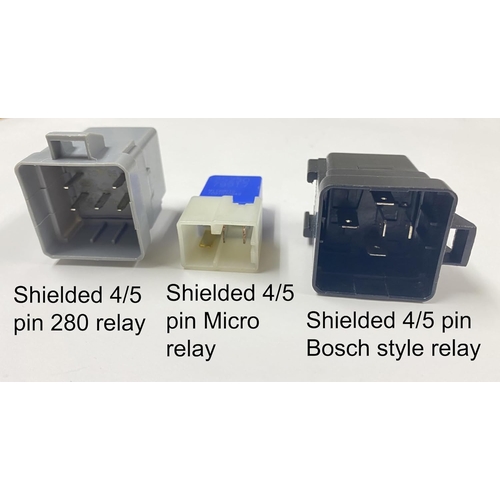

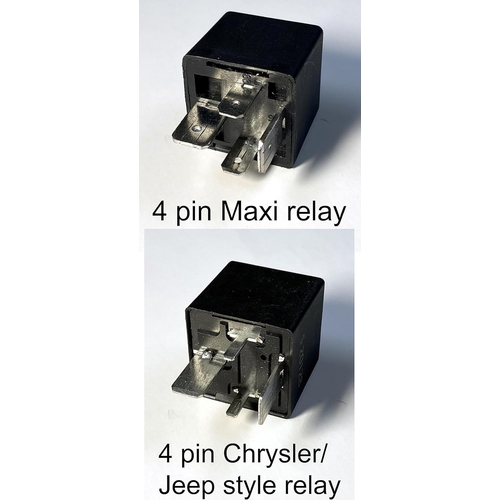

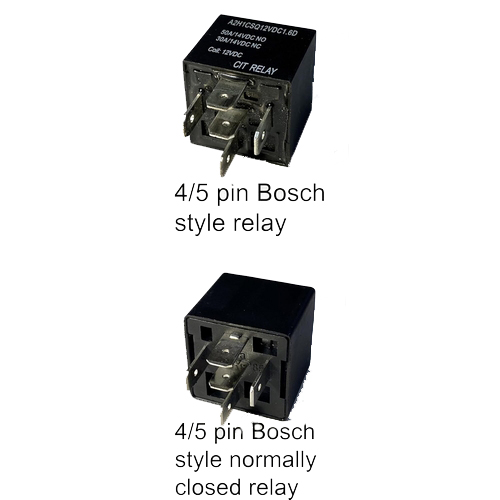

  • 10 relay adapters covering common 4-pin and 5-pin 12-volt relay configurations
  • Heavy-duty test leads with alligator clips for battery connection
  • Detailed user manual with pinout reference chart and test procedures
  • Protective blow-molded carrying case
• Specifications:
  • Manufacturer: Electronic Specialties
  • Part Number: 195
  • Product Name: Super Relay Buddy Pro Kit
  • Operating Voltage: 12 volts DC
  • Load Current: 7+ amps during test cycle
  • Relay Coverage: 4-pin and 5-pin 12-volt automotive relays (up to 10 types via adapters)
  • Indicators: Green (pass), Yellow (caution), Red (fail)
  • Test Cycle: Automated 10-cycle load test
• The Electronic Specialties 195 Super Relay Buddy Pro Kit can also be referred to as 12-volt relay tester kit, automotive relay test tool, relay load tester, professional relay diagnostic set, and ESI 195 relay buddy kit.

Electronic Specialties designs and manufactures high-quality diagnostic tools and electrical testers for the automotive, heavy-duty, and industrial markets, offering reliable products for professional technicians.

Q: What makes the Super Relay Buddy Pro Kit different from basic relay testers?
A: It applies a true 7+ amp load to relays, providing a realistic operating test that identifies weak or marginal relays which basic continuity tests cannot detect.

Q: Can the Super Relay Buddy Pro Kit test multiple relay types?
A: Yes. The included adapters allow testing of up to 10 different 12-volt relay configurations, including standard 4-pin and 5-pin automotive relays.

Q: What do the LED indicators mean during testing?
A: Green indicates pass, yellow signals a caution due to voltage drop, and red means the relay has failed the test cycle.
