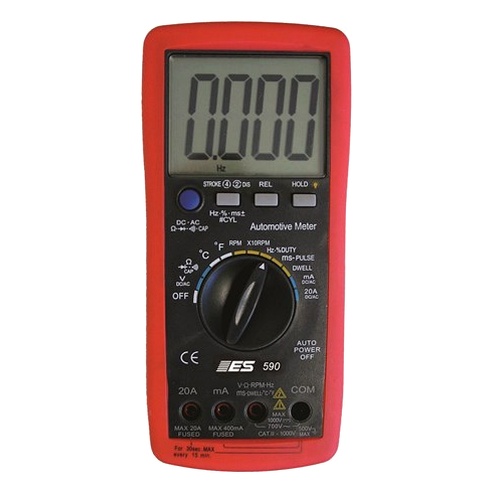

Electronic Specialties 590 Pro Automotive Digital Multimeter, Auto Ranging, 48 Test Ranges, 20 Amp Fused

Electronic Specialties 590 Pro Automotive Digital Multimeter, Auto Ranging, 48 Test Ranges, 20 Amp Fused

• Electronic Specialties 590 is a pro automotive digital multimeter designed for diagnosing 12 volt vehicle systems. It provides auto ranging measurement across 48 test ranges and includes mS pulse width for injector on time, RPM, dwell, duty cycle, temperature, and more. This is a complete meter kit, not a replacement part.
• Features:
  • Auto ranging operation with 48 test ranges and 15 test functions to speed accurate measurements
  • mS pulse width function measures injector on time for fuel system diagnostics
  • Desirable 20 amp fused test range supports high current checks with added protection
  • Large 2 inch backlit LCD improves readability in shop environments
  • Complete diagnostic meter kit for 12 volt systems; not a replacement part

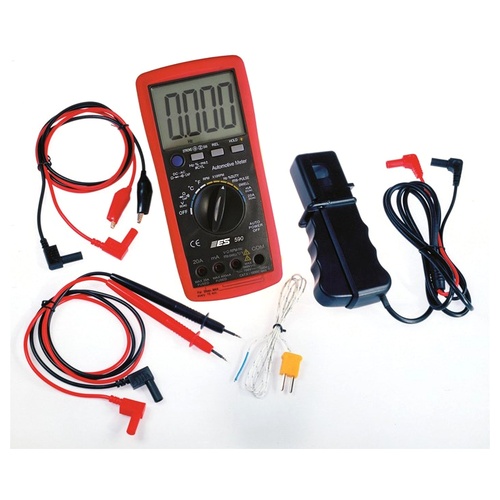

• Includes:
  • Two sets of test leads
  • Inductive RPM pick up with adjustable sensitivity
  • Temperature probe
  • 9 volt battery
  • Instruction manual
  • Zipper carrying case
• Specifications:
  • Manufacturer: Electronic Specialties, Inc.
  • Part Number: 590
  • Product Type / Function: Pro automotive digital multimeter
  • Range / Output: DC volts 0 to 1000 V; AC volts 0 to 700 V; DC amps 0 to 20 A; AC amps 0 to 20 A; ohms 0 to 40 M?; capacitance 0 to 100 ?F; frequency up to 10 MHz
  • Performance Functions: Duty cycle 0.1 to 9.99 percent; mS pulse width 1 to 10 ms; dwell for 4, 5, 6, 8 cylinder; RPM ranges for 4 and 2 or DIS engines
  • Drive / Connection Type: Standard test leads; inductive RPM pick up
  • Temperature: -200 C to 760 C; -4 F to 1400 F
  • Display: 2 inch backlit LCD
  • Power: 9 volt battery
  • System Compatibility / Application: Diagnostic measurements on automotive, marine, RV, and equipment 12 volt electrical systems; not a replacement part
  • Packaging Type: Single kit
  • Quantity: 1 kit
• The Pro Automotive Digital Multimeter can also be referred to as automotive multimeter, digital automotive multimeter, RPM multimeter, pulse width meter, and duty cycle meter.

Electronic Specialties, Inc. designs and manufactures handheld electrical testing and diagnostic tools for professional automotive and industrial service.

Q: Does the 590 measure injector pulse width?
A: Yes. The mS pulse width function measures injector on time for diagnostics.

Q: What accessories come with the meter?
A: The kit includes two sets of test leads, an inductive RPM pick up, a temperature probe, a 9 volt battery, an instruction manual, and a zipper case.

Q: What is the maximum measured current?
A: The meter provides a desirable 20 amp fused test range for high current measurements.
