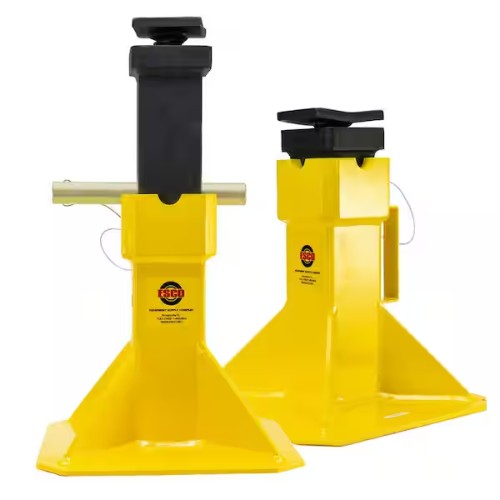

ESCO 10456 22 Ton Jack Stands with Adjustable Screw Top Saddle, Pair

ESCO 10456 22 Ton Jack Stands with Adjustable Screw Top Saddle, Pair

• These jack stands support loads up to 22 tons or 44,000 pounds per stand. An adjustable screw-style saddle adds 2 inches of height, while the pin-style column adjusts to three axle height positions and uses a secured adjustable pin.
• Features:
  • Supports loads up to 22 tons, 44,000 pounds per stand.
  • Adjustable screw-style saddle provides 2" of additional height.
  • Pin-style column adjusts to three different axle height positions.
  • Adjustable pin is secured to the stand to prevent loss.
  • 1/4" thick solid steel base plate for added stability.
• Specifications:
  • Manufacturer: ESCO
  • Part Number: 10456
  • UPC: 816904025397
  • Product Type: Jack stands
  • Capacity: 22 tons, 44,000 pounds per stand
  • Minimum Height: 15.5"
  • Middle Pin Height: 17.5"
  • Maximum Height: 20.5"
  • Maximum Height with Extended Saddle: 22.5"
  • Saddle Extension: 2"
  • Base Length: 11"
  • Base Width: 11"
  • Quantity: 2 jack stands
• The 22 Ton Jack Stands with Adjustable Screw Top Saddle can also be referred to as heavy duty jack stands, 22 ton jack stands, adjustable saddle jack stands, pin style support stands, and semi-truck jack stands.

ESCO Equipment Supply Company manufactures tire service equipment for automotive, agricultural, commercial truck, OTR, and mining markets. Based in Brooksville, Florida, ESCO produces heavy duty bead breakers, hydraulic equipment, jacks, stands, and wheel-service tools.

Q: How much height adjustment does the screw top saddle provide?
A: The screw-style saddle provides 2" of additional height adjustment.

Q: What height positions are listed for ESCO 10456?
A: Minimum height is 15.5", middle pin height is 17.5", maximum height is 20.5", and maximum height with the extended saddle is 22.5".

Q: How should these jack stands be used safely?
A: Use stands in pairs on a hard, level surface capable of sustaining the load, and position the load on the center of the saddle only.
