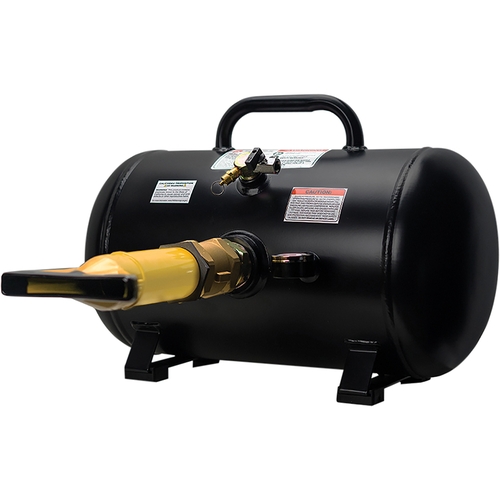

ESCO 20391 Cyclone-X Series 10 Gallon High-Force Bead Seating Tank, Steel ASME Tank, 165 psi Maximum

ESCO 20391 Cyclone-X Series 10 Gallon High-Force Bead Seating Tank, Steel ASME Tank, 165 psi Maximum

• This compressed-air bead seater delivers a rapid air discharge to seat tire beads on commercial tire sizes, skid steers, and some tractor tires. The 10 gallon configuration is suited to medium tire service applications.
• Features:
  • High-Force discharge barrel directs rapid air release into the tire bead area.
  • Ergonomic handle positioning provides control of the tank during tire and wheel service.
  • Protective rubber-coated feet shield the tank during routine shop use.
  • Recommended operating pressure range is 40 to 155 psi.
• Includes:
  • Cyclone-X Series 10 Gallon Bead Seating Tank
  • Safety glasses
  • Hearing protection
• Specifications:
  • Manufacturer: ESCO
  • Part Number: 20391
  • UPC: 816904024741
  • Capacity: 10 Gallon
  • Tank Material: Steel
  • Recommended Air Pressure: 40 to 155 psi
  • Maximum Pressure: 165 psi
  • Dimensions: 24" x 16.5" x 17"
  • Certification: ASME
• The Cyclone-X Series Bead Seating Tank can also be referred to as tire bead seater, air bead seating tank, commercial tire bead seater, high-force bead seater, and 10 gallon bead blaster.

ESCO supplies tire service and handling equipment for commercial truck, OTR, mining, automotive, and agricultural markets. Its product range includes bead breakers, hydraulic equipment, jacks, stands, tire mounting tools, wheel dollies, and other tire service equipment.

Q: What tire applications is the ESCO 20391 recommended for?
A: It is recommended for most commercial tire sizes, skid steers, and some tractor tires.

Q: What pressure range does the ESCO 20391 use?
A: The recommended operating pressure range is 40 to 155 psi, with a maximum pressure of 165 psi.

Q: Is the ESCO 20391 tank ASME certified?
A: Yes. The steel air tank is ASME certified.
