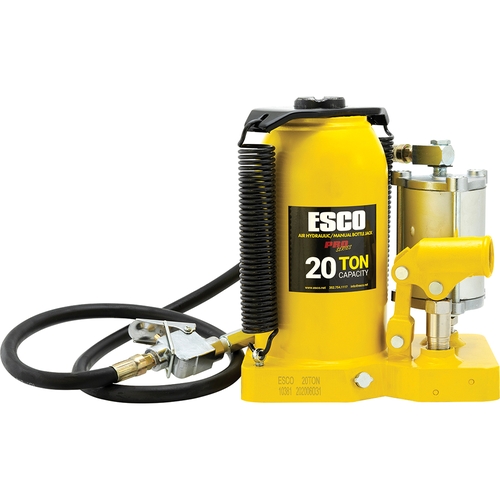

ESCO 10381 Pro Series 20 Ton Air Hydraulic Bottle Jack, 10" to 20" Height, 110-125 psi

ESCO 10381 Pro Series 20 Ton Air Hydraulic Bottle Jack, 10" to 20" Height, 110-125 psi

• Heavy-duty lifting equipment for commercial trucks, buses, tractors, farm equipment, and related service applications. The jack operates by compressed air or manual pumping and combines a compact bottle-jack configuration with adjustable lifting height.
• Features:
  • Fully welded cylinder and frame with an extra-thick base for stability under heavy loads.
  • Chrome-plated piston and air motor resist rust and corrosion.
  • Safety valve prevents overloading, while the double-spring design controls descent during pressure release.
  • Heat-treated extension screw provides additional height adjustment without overextending the cylinder.
• Includes:
  • Two-piece lifting and lowering handle
  • 4 ft swivel-end air hose with handheld push-button trigger, in-line air filter, and airflow latch
• Specifications:
  • Manufacturer: ESCO
  • Part Number: 10381
  • UPC: 816904024871
  • Capacity: 20 Ton, 40,000 pounds
  • Minimum Height: 10"
  • Maximum Height: 20"
  • Ram Travel: 6"
  • Screw Adjustment: 4"
  • Saddle Width: 1.75"
  • Base Size: 8.875" x 5.75"
  • Air Inlet: 1/4" NPT
  • Air Pressure: 110-125 psi
• The ESCO Pro Series 20 Ton Air Hydraulic Bottle Jack can also be referred to as air hydraulic bottle jack, 20 ton truck jack, pneumatic bottle jack, heavy-duty bottle jack, and commercial truck lifting jack.

ESCO manufactures professional lifting, tire service, wheel service, hydraulic, and automotive maintenance equipment. Its products serve commercial vehicle, agricultural, industrial, and automotive service applications.

Q: Can the ESCO 10381 be operated without compressed air?
A: Yes. The jack can be operated manually with the included two-piece lifting and lowering handle.

Q: What air pressure does the ESCO 10381 require?
A: The operating air pressure is 110-125 psi.

Q: What vehicles and equipment is the 10381 suited for?
A: Applications include commercial trucks, buses, tractors, farm equipment, and other heavy-duty lifting work.
