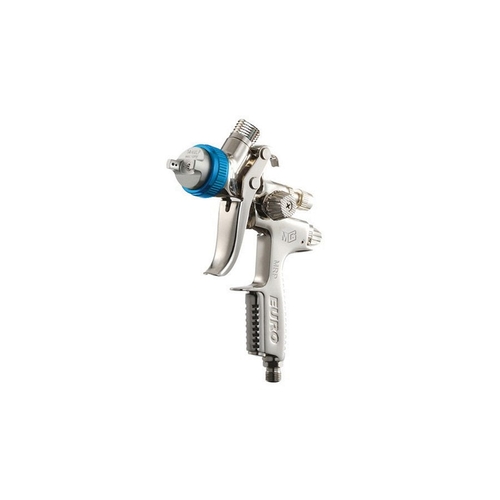

Euro 3214M 3200 M Series Reduced Pressure MRP Gravity Cup Spray Gun, 1.4 mm Nozzle, 1000 Cubic Centimeter Cup

Euro 3214M 3200 M Series Reduced Pressure MRP Gravity Cup Spray Gun, 1.4 mm Nozzle, 1000 Cubic Centimeter Cup

• Euro 3214M is a 3200 M Series reduced pressure MRP gravity cup air spray gun for automotive refinish coating application. The tool is used for spraying materials in body shops, collision repair, and refinishing environments.
• Features:
  • Reduced pressure MRP gravity cup configuration is used for basecoat, clearcoat, primer, sealer, and general coating applications.
  • Air inlet is 1/4 Inch PF and fluid inlet is M16 x 1.5P.
  • Paint output is 170 Cubic Centimeters per Minute with 240 Liters per Minute air consumption.
  • Pattern width is 270 mm with a 15 to 20 Centimeter recommended spraying distance.
  • Available nozzle sizes in the 3200 M Series include 1.3, 1.4, 1.7, 1.9, 2.1, and 2.5 mm.
• Includes:
  • 3200 M Series reduced pressure MRP gravity cup air spray gun with 1.4 mm nozzle
  • 1000 Cubic Centimeter gravity cup
• Specifications:
  • Manufacturer: Euro
  • Part Number: 3214M
  • UPC: 655222328038
  • Product Type: Reduced pressure MRP gravity cup air spray gun
  • Series: 3200 M
  • Nozzle Size: 1.4 mm
  • Cup Capacity: 1000 Cubic Centimeters
  • Operating Pressure: 15 to 28 Pounds per square inch
  • Air Inlet: 1/4 Inch PF
  • Fluid Inlet: M16 x 1.5P
  • Pattern Width: 270 mm
  • Paint Output: 170 Cubic Centimeters per Minute
  • Air Consumption: 240 Liters per Minute
  • Recommended Spraying Distance: 15 to 20 Centimeter
  • Quantity: 1 spray gun and cup
• The 3200 M Series Reduced Pressure MRP Gravity Cup Spray Gun can also be referred to as 1.4 mm reduced pressure spray gun, MRP gravity cup spray gun, automotive refinish spray gun, gravity cup paint gun, and 1000 Cubic Centimeter spray gun and cup.

MG Distributor, Inc. supplies automotive collision repair essentials from Los Angeles, including Euro and GoldenStar spray equipment, nozzle sets, gravity cups, air brushes, disposable cup systems, masking film, and paint strainers.

Q: What coating applications is this spray gun used for?
A: It is used for basecoat, clearcoat, primer, sealer, and general coating applications.

Q: What air and fluid connections are specified?
A: The air inlet is 1/4 Inch PF and the fluid inlet is M16 x 1.5P.

Q: What pattern width and spraying distance are specified?
A: Pattern width is 270 mm, and the recommended spraying distance is 15 to 20 Centimeter.
