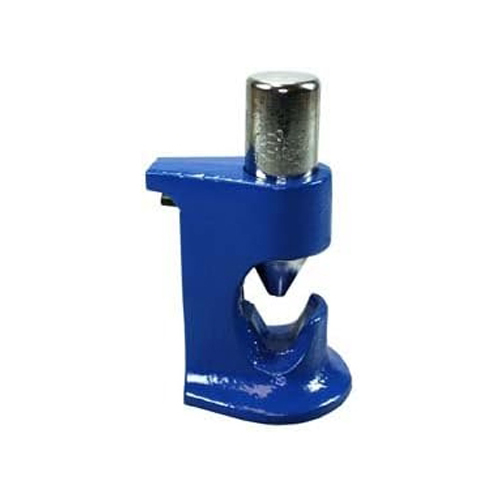

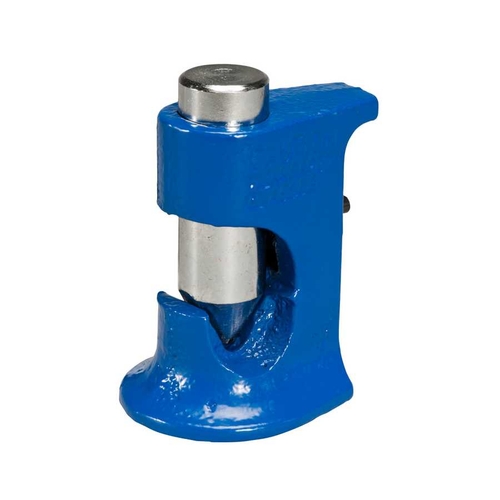

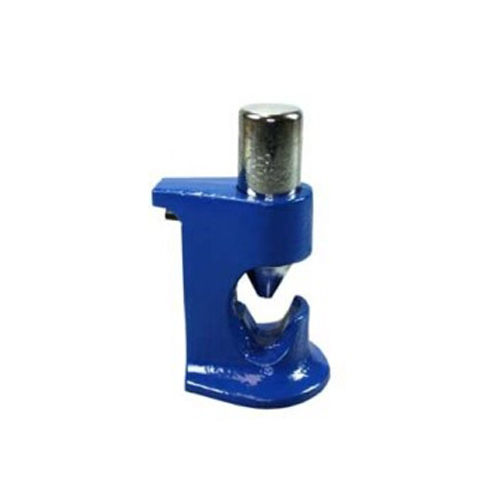

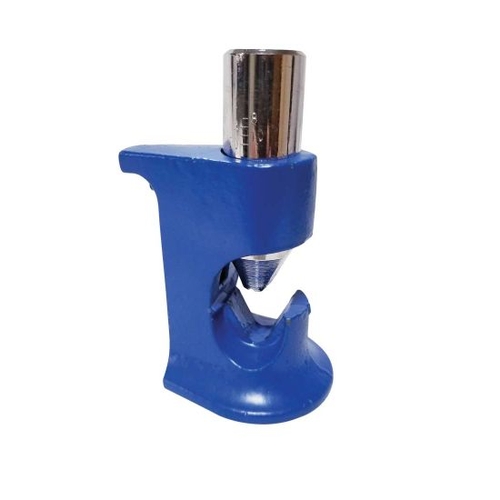

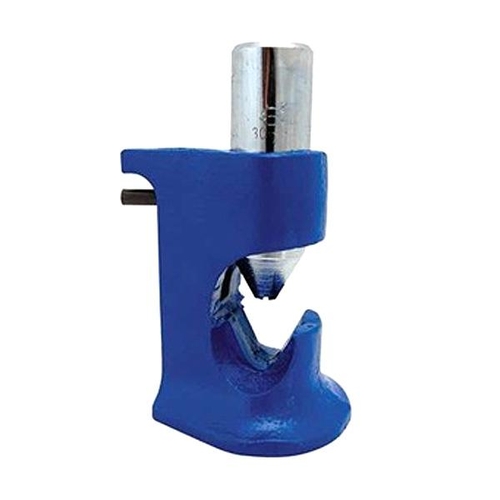

EZRED B790C Hammer Indent Crimping Tool, 8 to 4/0 AWG, Cast Steel, Spring Loaded Pin

EZRED B790C Hammer Indent Crimping Tool, 8 to 4/0 AWG, Cast Steel, Spring Loaded Pin

• EZRED B790C is a compact hammer indent crimping tool for creating reliable crimps on heavy gauge cable lugs and terminals. Made from cast steel with a spring loaded locating pin, it handles 8 to 4/0 AWG conductors and can be struck with a hammer or pressed in a vise for consistent results.
• Features:
  • 8 to 4/0 AWG range covers common battery cables, welding leads, and high current wiring to reduce the number of tools needed.
  • Spring loaded pin centers the terminal barrel for accurate indents, improving electrical contact and pull strength.
  • Cast steel body provides durability for shop and mobile service use, helping the tool withstand repeated striking.
  • Use with hammer or in a bench vise to generate repeatable crimp force without powered equipment.
  • Compact, lightweight form factor fits easily in toolboxes and service vehicles for field repairs.
• Specifications:
  • Manufacturer: EZRED
  • Part Number: B790C
  • Alternate Part Numbers / Cross References: EZB790C
  • Category: Electrical Tools
  • Subcategory: Crimping Tools
  • Product Type / Function: Hammer indent crimping tool for heavy gauge lugs and terminals
  • Conductor Size Range: 8 to 4/0 AWG
  • Material: Cast steel
  • Operation: Hammer strike or bench vise
  • Approximate Dimensions: 4.5 inch length x 3 inch width x 2.5 inch height
  • Quantity: 1 tool
  • System Compatibility / Application: For copper cable lugs and ring terminals on battery systems, welding leads, and high current circuits
• The Hammer Indent Crimping Tool can also be referred to as EZRED B790C crimper, hammer indent crimper, battery cable lug crimper, manual hammer crimp tool, and indent crimper 8 to 4/0 AWG.

EZRED designs professional automotive service tools for electrical, battery, and shop tasks, focusing on durable, easy to use solutions for technicians and mobile service providers.

Q: What wire and terminal types does B790C crimp?
A: It is designed for copper cable lugs and ring terminals on 8 to 4/0 AWG conductors commonly used for batteries, starters, grounds, and welding leads.

Q: Do I need a special press to use it?
A: No. Place the terminal and cable in the anvil, align with the spring loaded pin, and strike with a hammer or compress in a bench vise to form the indent.

Q: How do I ensure a quality crimp?
A: Use properly sized copper lugs for the cable, perform the indent centered on the barrel, and verify mechanical pull strength; apply adhesive lined heat shrink for strain relief and sealing if required.
