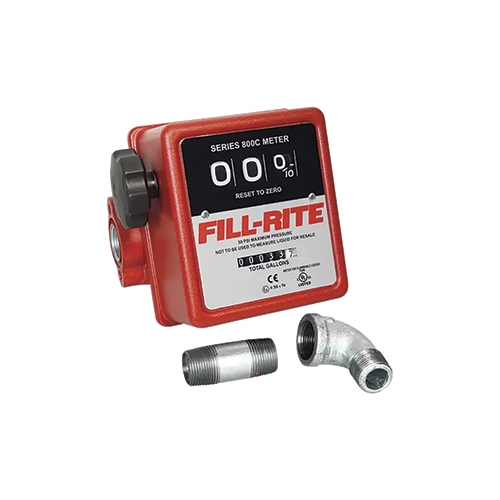

Fill-Rite 807CMK 3-Digit Mechanical Fuel Transfer Meter, 5-20 GPM, 3/4" Female NPT, Gallons, Installation Fittings

Fill-Rite 807CMK 3-Digit Mechanical Fuel Transfer Meter, 5-20 GPM, 3/4" Female NPT, Gallons, Installation Fittings

• Mechanical fuel meter for low-volume equipment fueling and transfer applications. Nutating disc technology measures compatible fuels while a resettable batch register and non-resettable totalizer track individual transfers and cumulative volume.
• Features:
  • Cast-aluminum construction and nutating disc technology handle rust and small debris during fuel transfer.
  • Resettable 3-digit counter registers up to 99.9 gallons per batch, while a 5-digit non-resettable counter tracks total transferred volume.
  • Measurement accuracy is +/- 1% with a maximum operating pressure of 50 psi.
  • Suitable for diesel, kerosene, biodiesel up to B20, gasoline up to E15, mineral spirits, heptane, and hexane.
  • Not for fluid resale applications.
• Includes:
  • 807CMK mechanical fuel transfer meter
  • Meter reset knob
  • PTFE tape roll
  • 3/4" NPT street elbow
  • 3/4" x 2-1/2" pipe nipple
• Specifications:
  • Manufacturer: Fill-Rite
  • Part Number: 807CMK
  • UPC: 089404088302
  • Flow Rate Range: 5-20 GPM
  • Display Type: Mechanical
  • Display Digits: 3
  • Inlet: 3/4" female NPT
  • Outlet: 3/4" female NPT
  • Maximum Operating Pressure: 50 psi
  • Accuracy: +/- 1%
  • Repeatability: +/- 0.38%
  • Totalizer: Yes
• The 3-Digit Mechanical Fuel Transfer Meter can also be referred to as fuel flow meter, mechanical fuel meter, gasoline transfer meter, diesel transfer meter, and fuel dispensing meter.

Fill-Rite, a Gorman-Rupp Company, manufactures fuel, oil, and chemical transfer equipment. Its product range includes transfer pumps, flow meters, dispensers, and accessories for mobile, agricultural, industrial, and equipment fueling applications.

Q: Which fluids are compatible with the 807CMK?
A: Compatible fluids include diesel, kerosene, biodiesel up to B20, gasoline up to E15, mineral spirits, heptane, and hexane.

Q: Can the 807CMK be used for fluid resale?
A: No. The 807CMK is not approved for fluid resale applications.

Q: What is the maximum operating pressure?
A: The maximum operating pressure is 50 psi.
