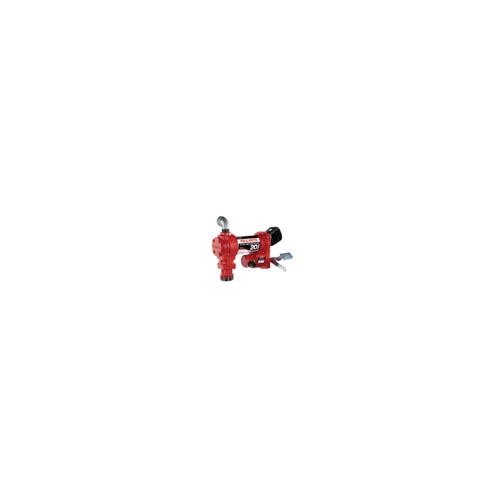

Fill-Rite FR4204H 12V DC Fuel Transfer Pump, 20 GPM, 1/4 HP, 1" Female NPT, 2" Bung Mount, Pump Only

Fill-Rite FR4204H 12V DC Fuel Transfer Pump, 20 GPM, 1/4 HP, 1" Female NPT, 2" Bung Mount, Pump Only

• A heavy-duty rotary vane fuel transfer pump for mobile transfer tanks and equipment fueling. The cast-iron pump handles gasoline, diesel, kerosene, mineral spirits, and specified biodiesel and ethanol blends.
• Features:
  • Thermally protected motor guards against overheating during operation.
  • Built-in mesh strainer filters particulates before fuel reaches downstream equipment.
  • Adjustable electrical junction box rotates for installation in confined locations.
  • Self-priming design has an 8' suction lift and 30 minute on, 30 minute off duty cycle.
• Includes:
  • FR4204H fuel transfer pump
  • Ground wire
  • PTFE tape roll
  • 1" NPT street elbow
  • Cable gland
  • Two wire nuts
  • Locking nut
  • Fastener
• Specifications:
  • Manufacturer: Fill-Rite
  • Part Number: FR4204H
  • UPC: 089404247945
  • Maximum Flow Rate: 20 GPM
  • Power Type: 12V DC
  • Motor Power: 0.25 HP
  • Maximum Current: 19 A
  • Inlet: 1" female NPT
  • Outlet: 1" female NPT
  • Mounting Connection: 2" NPT bung mount
  • Maximum Operating Pressure: 16 psi
  • Suction Lift: 8'
  • Compatible Fluids: Diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits
• The 12V DC Fuel Transfer Pump can also be referred to as fuel transfer pump, diesel transfer pump, gasoline transfer pump, transfer tank pump, and rotary vane fuel pump.

Fill-Rite, a Gorman-Rupp Company, manufactures fuel, oil, and chemical transfer equipment. Its product range includes transfer pumps, flow meters, dispensers, and fluid transfer accessories for mobile, agricultural, industrial, and equipment fueling applications.

Q: What fuels can the FR4204H pump?
A: It is compatible with diesel, kerosene, biodiesel up to B20, gasoline up to E15, and mineral spirits.

Q: What is the duty cycle of the FR4204H?
A: The duty cycle is 30 minutes on followed by 30 minutes off.

Q: Does this SKU include a hose or dispensing nozzle?
A: No. This is the pump-only configuration with installation components and no discharge hose or dispensing nozzle.
