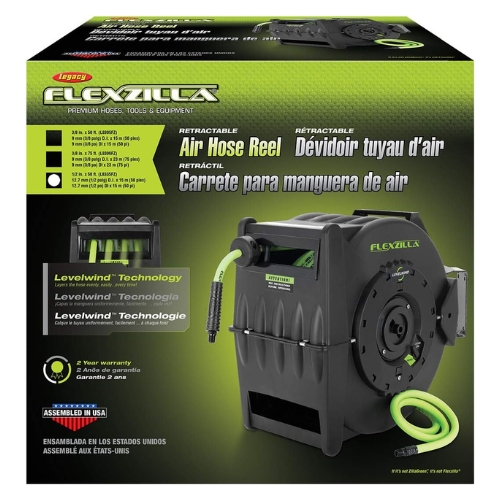

Flexzilla L8335FZ Pro Levelwind Retractable Air Hose Reel, 1/2 Inch x 50 Foot Hybrid Polymer, 300 psi, ZillaGreen

Flexzilla L8335FZ Pro Levelwind Retractable Air Hose Reel, 1/2 Inch x 50 Foot Hybrid Polymer, 300 psi, ZillaGreen

• Flexzilla L8335FZ Pro Levelwind retractable air hose reel manages a 1/2 inch x 50 foot hybrid polymer air hose for shop air distribution up to 300 psi. The Levelwind self-leveling system and latching mode switch support smooth payout and controlled retraction. This is a standalone hose reel, not a replacement part.
• Features:
  • Levelwind self-leveling mechanism lays hose evenly across the drum for smooth payout and rewind, reducing kinks and wear
  • Latching mode switch enables free-run or latching every 3 foot for hands-free use at set lengths
  • Hybrid polymer Flexzilla hose maintains flexibility from minus 40 to 140 F for reliable performance in varied environments
  • Seven position locking brace and wall or overhead mounting bracket allow versatile installation on walls, ceilings, or benches
  • Includes 5 foot lead-in hose to connect the reel to the air supply for quick setup
  • Not a replacement part; designed as an integrated retractable air hose reel for compressed air systems
• Includes:
  • Retractable hose reel with Levelwind mechanism and adjustable hose stopper
  • Flexzilla hybrid polymer air hose, 1/2 inch inner diameter x 50 foot
  • Lead-in hose, 5 foot
  • Wall and overhead mounting bracket (L8300-W)
  • Seven position locking brace
• Specifications:
  • Manufacturer: Flexzilla
  • Part Number: L8335FZ
  • Hose Size and Length: 1/2 inch inner diameter x 50 foot
  • Hose Material: Hybrid polymer
  • Working Pressure: 300 psi at 70 F
  • Temperature Range: minus 40 to 140 F
  • Connections: Hose outlet 3/8 inch MNPT; reel inlet 3/4 inch 11-1/2 male GHT
  • Mounting: Wall, overhead, or bench using included bracket; seven position locking brace
  • System Compatibility / Application: Retractable hose management for compressed air systems up to 300 psi; not a replacement part
  • Quantity: 1 hose reel assembly
• The Flexzilla Pro Levelwind retractable air hose reel can also be referred to as retractable air hose reel, levelwind hose reel, 1/2 inch air hose reel, 50 foot air hose reel, and hybrid polymer air hose reel.

Flexzilla provides air and water handling products for professional and industrial use. The Pro Levelwind retractable air hose reel combines a hybrid polymer hose, a self-leveling winding system, and a versatile mounting bracket to support dependable, organized air delivery.

Q: Does the reel include a lead-in hose for connecting to my air line?
A: Yes. A 5 foot lead-in hose is included for quick connection between the reel and your air supply.

Q: What thread sizes are on the inlet and outlet?
A: The hose outlet is 3/8 inch MNPT. The reel inlet uses 3/4 inch 11-1/2 male GHT to accept the included lead-in hose.

Q: What pressure and temperature limits should I observe?
A: The assembly is rated 300 psi working pressure. The hose remains flexible from minus 40 to 140 F; stay within these limits for safe operation.
