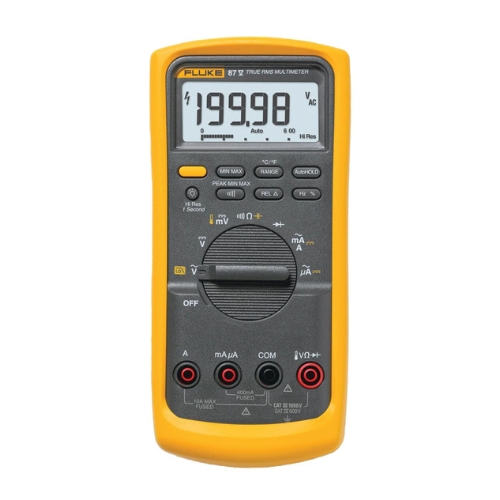

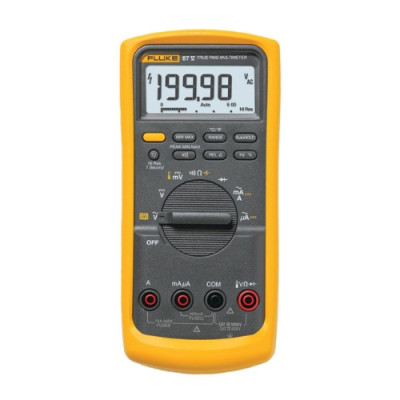

Fluke 87V Industrial Multimeter, AC DC Voltage up to 1000 V, 10 Amp Current, Wide Bandwidth

Fluke 87V Industrial Multimeter, AC DC Voltage up to 1000 V, 10 Amp Current, Wide Bandwidth

• The Fluke 87V Industrial Multimeter is a professional-grade true-RMS measuring instrument designed to troubleshoot motor drives, plant automation systems, power distribution networks and electro-mechanical equipment with high accuracy and durability.
• Features:
  • True-RMS AC voltage and current measurement — accurately handles non-linear signals from VFDs and other noisy equipment
  • Low-pass filter plus Peak Capture (250 µs) — supports accurate diagnostics of adjustable-speed drives and fast transient events
  • Large digit display with two-level backlight and analog bar-graph — enables clear readings in low-light or busy industrial environments
  • High-safety rating (CAT III 1000 V / CAT IV 600 V) and robust input protection — engineered for heavy-duty industrial service and high-energy environments
  • Built-in thermometer and fast-access battery door — adds value with temperature measurement and simplifies maintenance.
• Specifications:
  • Manufacturer: Fluke Corporation
  • Part Number: 87V
  • Voltage (AC/DC): up to 1000 V
  • Current (AC/DC): up to 10 A (20 A for 30 seconds max)
  • Resistance: up to 50 MΩ
  • Capacitance: up to 9,999 µF
  • Frequency: up to 200 kHz
  • Temperature range (with probe): -40 °C to 500 °F (-40 °C to 260 °C approx) for the included probe
  • Safety Rating: CAT III 1000 V, CAT IV 600 V
  • Warranty: Limited lifetime
• The Fluke 87V Industrial Multimeter can also be referred to as Fluke 87V DMM, Fluke industrial true-RMS multimeter 87V, Fluke 80 Series V multimeter, Fluke 87V motor drive multimeter, and Fluke 87V professional electrical tester.

The Fluke 87V is built for demanding service environments where accuracy, durability and safety are essential. It is optimized for industrial technicians working on variable-speed drives, power systems and electromechanical equipment. The combination of precision measurement, robust design and built-in temperature sensing makes it a versatile tool for advanced diagnostics.

Q: Can the Fluke 87V measure complex signals from variable-frequency drives (VFDs)?
A: Yes — it includes a low-pass filter to reject high-frequency noise and is designed to accurately measure voltage, current and frequency on VFD systems and other non-sinusoidal sources.

Q: Is the Fluke 87V safe for use in high-energy industrial environments?
A: Yes — the meter is rated CAT III 1000 V and CAT IV 600 V with protection for spikes exceeding 8,000 V, making it suitable for heavy industrial, distribution and service-panel applications.

Q: What’s included in the box when purchasing the Fluke 87V?

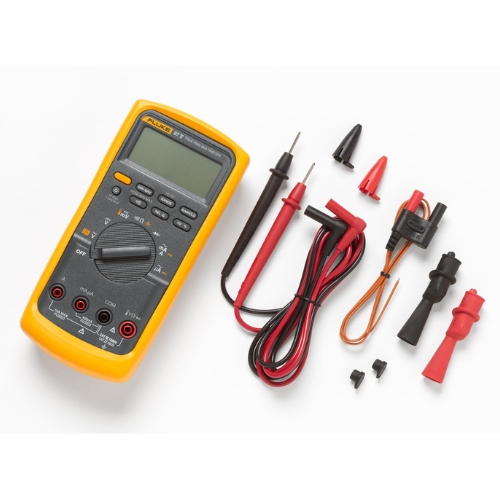

A: The meter includes test leads, alligator clips, a removable holster, a temperature probe, a 9 V battery (installed) and a user manual. Accessories like magnetic hangers or carrying cases may be sold separately.
