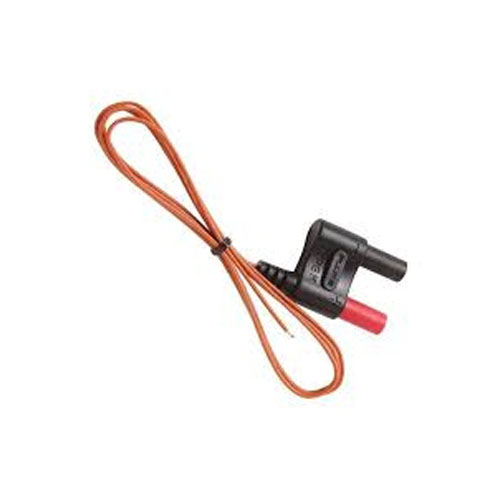

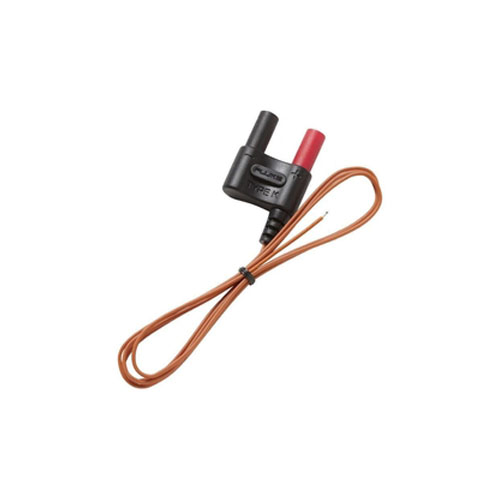

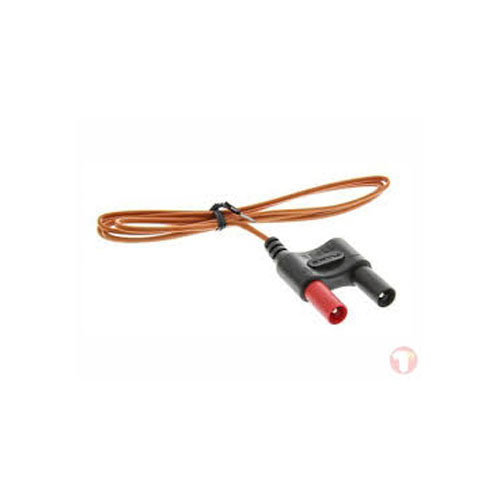

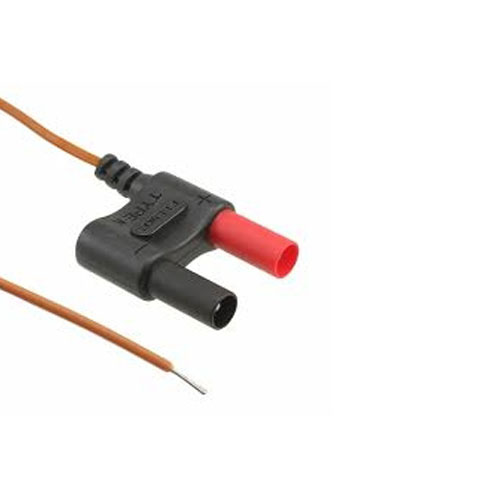

Fluke 2747801 80BK-A Integrated DMM Temperature Probe, Type K Thermocouple, -40 To 260 Degrees Celsius, 1000 mm Lead

Fluke 2747801 80BK-A Integrated DMM Temperature Probe, Type K Thermocouple, -40 To 260 Degrees Celsius, 1000 mm Lead

• Fluke 2747801 (80BK-A) is an integrated Type K thermocouple temperature probe for digital multimeters with temperature measurement functions. It measures temperature at the probe tip in air or immersed in liquid and connects through standard shrouded banana plugs. It is an accessory probe, not a replacement part.
• Features:
  • Type K thermocouple sensor supports temperature measurement on compatible digital multimeters with temperature functions.
  • Standard shrouded banana plug connection helps provide a direct plug-in setup for DMM inputs.
  • -40 to 260 degrees Celsius measurement range supports common electrical, mechanical, and HVAC checks in field and shop work.
  • Accuracy of plus or minus 2.2 degrees Celsius or 2 percent, whichever is greater, from 0 to 260 degrees Celsius supports practical diagnostic measurements.
  • One piece integrated probe construction supports quick setup and portable use as a DMM accessory, not a replacement part.
• Specifications:
  • Manufacturer: Fluke
  • Part Number: 2747801
  • Manufacturer Part Number: 2747801
  • Product Name: 80BK-A Integrated DMM Temperature Probe
  • Sensor Type: Type K thermocouple
  • Connection Type: Standard shrouded banana plugs
  • Measurement Range: -40 to 260 degrees Celsius
  • Measurement Range: -40 to 500 degrees Fahrenheit
  • Accuracy: Plus or minus 2.2 degrees Celsius or 2 percent, whichever is greater, from 0 to 260 degrees Celsius
  • Lead Length: 1000 mm (39 inches)
  • System Compatibility or Application: Designed for digital multimeters with temperature measurement functions to measure temperature at the probe tip in air or immersed in liquid.
  • Quantity: 1
• The 80BK-A Integrated DMM Temperature Probe can also be referred to as a Type K thermocouple probe, an integrated DMM temperature probe, a banana plug temperature probe, a digital multimeter temperature probe, and a K type temperature sensor.

Fluke designs professional electronic test tools and software used for measuring and condition monitoring, including digital multimeters, electrical testers, clamp meters, and related measurement accessories for industrial and field troubleshooting.

Q: What meters can I use this probe with?
A: It is designed for digital multimeters that support temperature measurement using a Type K thermocouple input and accept standard shrouded banana plug connections.

Q: What temperature range does the 80BK-A cover?
A: The specified measurement range is -40 to 260 degrees Celsius, which corresponds to -40 to 500 degrees Fahrenheit.

Q: Can the probe tip be immersed in liquid?
A: Yes. The probe is intended to measure temperature at the tip in air or immersed in liquid, based on the application and safe handling practices.

Q: What accuracy is specified for the probe?
A: The specified accuracy is plus or minus 2.2 degrees Celsius or 2 percent, whichever is greater, from 0 to 260 degrees Celsius.
