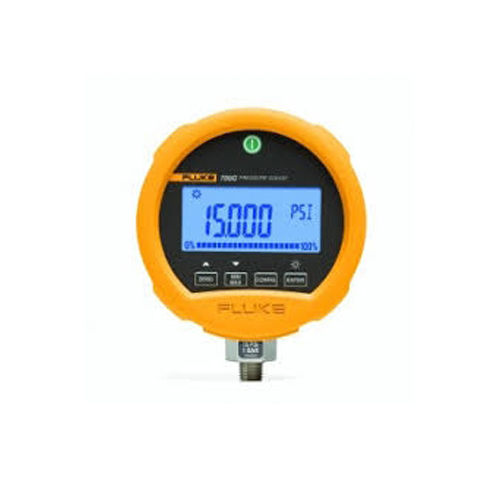

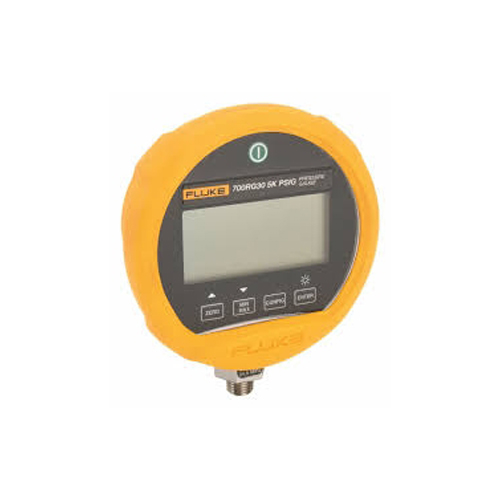

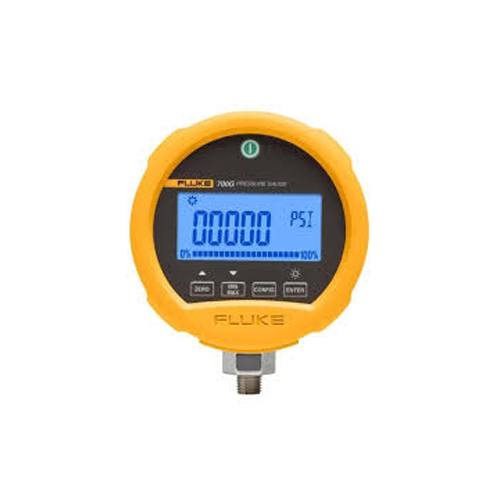

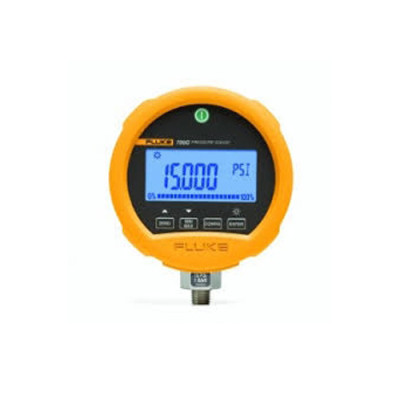

Fluke 4353631 700RG30 Precision Pressure Gauge, 5000 PSIG, Reference Class

Fluke 4353631 700RG30 Precision Pressure Gauge, 5000 PSIG, Reference Class

• Fluke 4353631 700RG30 is a precision reference class pressure gauge rated to 5000 PSIG for field and bench calibration. It provides high accuracy measurement with clear backlit display and a rugged holstered housing, suitable for pneumatic or hydraulic systems in process, maintenance, and test labs.
• Features:
  • Reference class gauge accuracy to 0.04 percent of reading with 0.01 psi resolution for confident calibration results
  • Wide measurement span from vacuum to 5000 psi supports pneumatic and hydraulic applications using 316 stainless wetted parts
  • Backlit digital display with bar graph improves readability in dim environments
  • CSA Class 1 Div 2 and ATEX II 3 G ratings support use in designated hazardous locations when properly applied

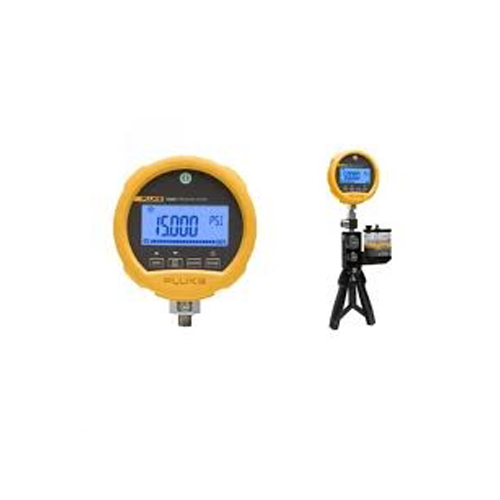

  • Compatible with Fluke 700PTPK pneumatic and 700HTPK hydraulic pump kits for a complete pressure source and measure solution
• Includes:
  • 700RG30 pressure gauge (with protective holster)
  • Manual on CD-ROM
  • Traceable certificate of calibration
  • 1/4 Inch NPT to 1/4 Inch ISO adapter
• Specifications:
  • Manufacturer: Fluke
  • Part Number: 4353631 (model 700RG30)
  • Category: Test and Measurement
  • Subcategory: Pressure calibration
  • Product Type / Function: Reference class digital pressure gauge
  • Range: -14 to 5000 psi
  • Resolution: 0.1 psi
  • Accuracy: Reference class to 0.04 percent of reading plus 0.01 percent of range
  • Burst Pressure: 15000 psi
  • Pressure Connection: 1/4 Inch NPT male
  • Wetted Materials: 316 stainless steel compatible media above 1000 psi
  • Display and Power: Backlit digital display; three AA alkaline batteries
  • Safety Ratings: CSA Class 1 Div 2 Groups A-D; ATEX II 3 G Ex nA IIB T6
  • Dimensions and Weight: Approx 5 Inch H x 4.5 Inch W x 1.5 Inch D; about 1.22 lb with holster
  • System Compatibility or Application: Use as a reference gauge for calibration and troubleshooting; mates with Fluke 700PTPK and 700HTPK pump kits
  • Alternate Part Numbers / Cross References: 700G30 (precision test gauge family); listed by distributors as 4353631 and 700RG30 5000 PSIG
• The precision pressure gauge can also be referred to as precision pressure test gauge, reference pressure gauge 5000 PSIG, digital pressure calibrator gauge, Fluke 700RG30 gauge, and 5000 psi calibration gauge.

Fluke designs and manufactures professional test and measurement instruments for industrial, process, and calibration markets, including precision pressure gauges, calibrators, and pump kits used by technicians and metrology labs worldwide.

Q: What media are compatible with this range?
A: At and above 1000 psi, use non-flammable, non-toxic media compatible with 316 stainless steel. For lower ranges, see manufacturer guidance on clean, dry gases.

Q: Can I generate pressure without a bench setup?
A: Yes. Pair the gauge with Fluke 700PTPK (pneumatic) or 700HTPK (hydraulic) pump kits to create a portable source-and-measure system.

Q: What accessories are included from the factory?
A: The gauge ships with a protective holster, manual on CD-ROM, a traceable certificate of calibration, and a 1/4 Inch NPT to 1/4 Inch ISO adapter.
